Fuel Tank Pressure Sensor: Service and Repair

FUEL TANK PRESSURE SENSOR

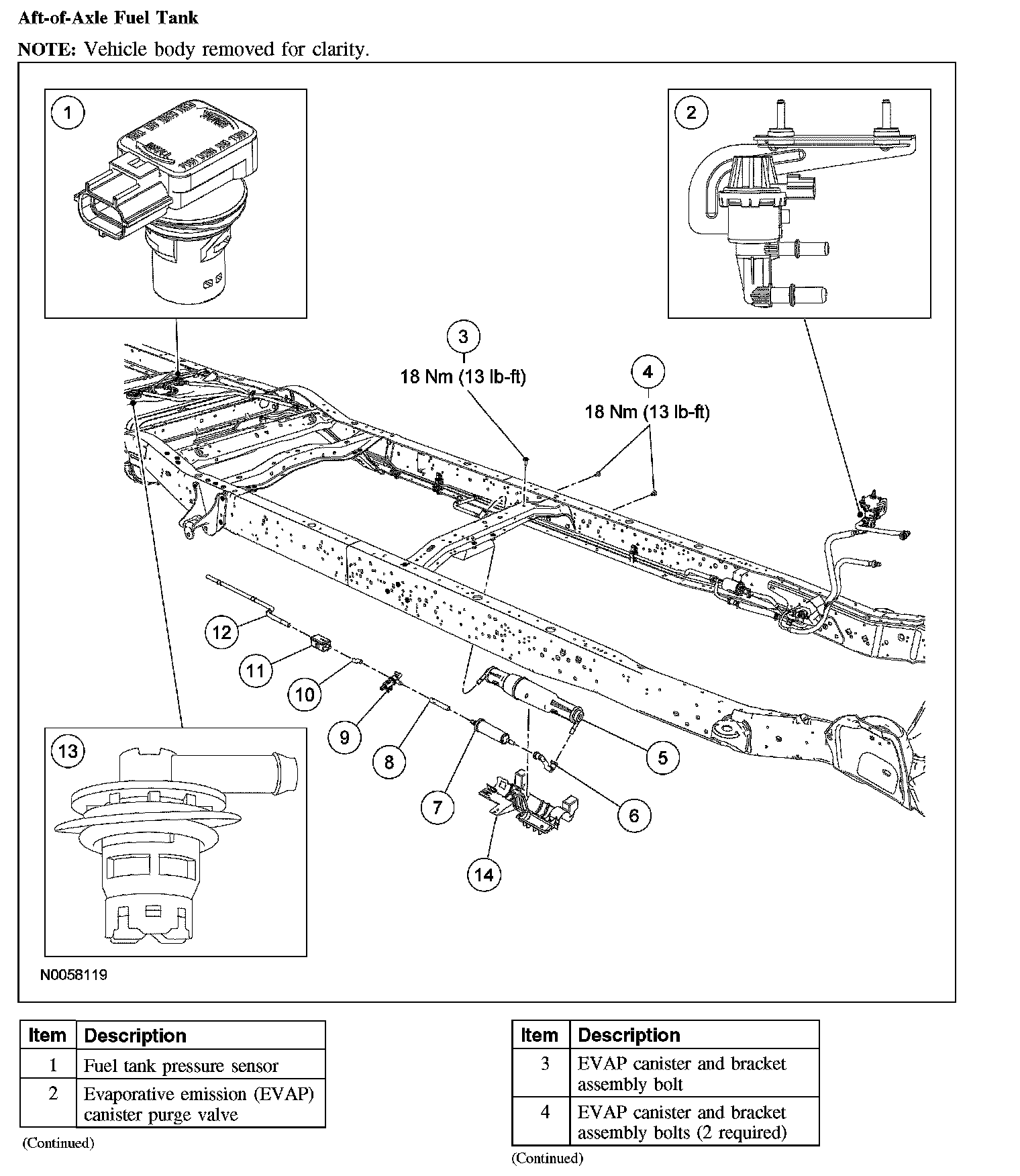

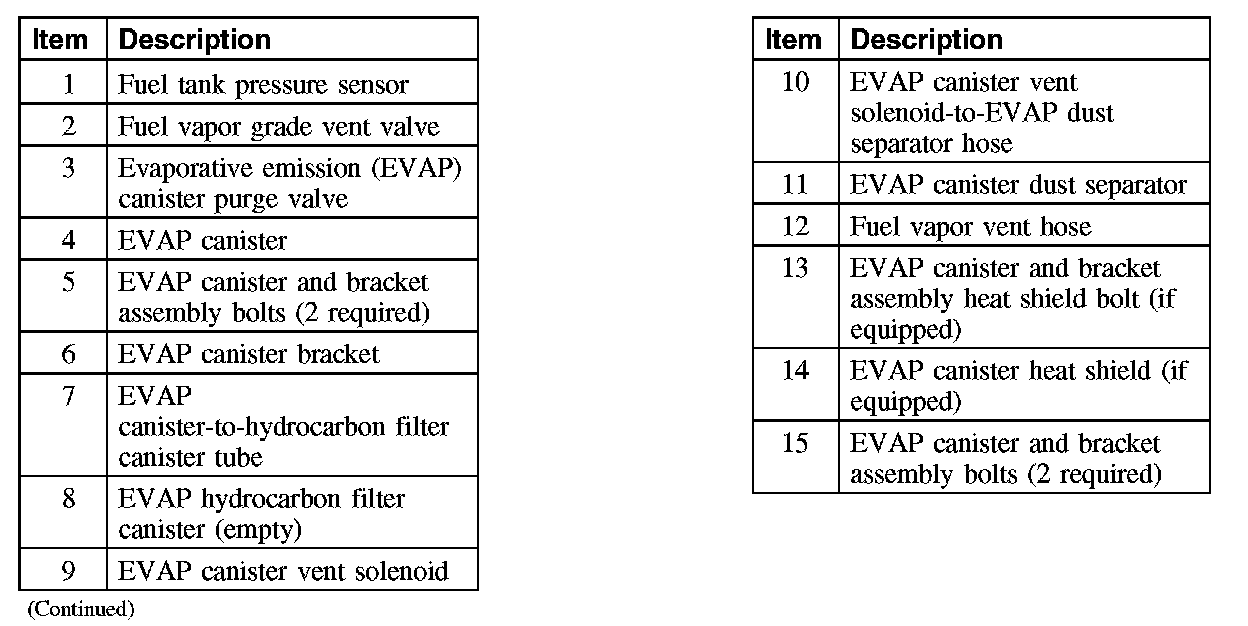

Aft-Of-Axle Fuel Tank (Part 1):

Aft-Of-Axle Fuel Tank (Part 2):

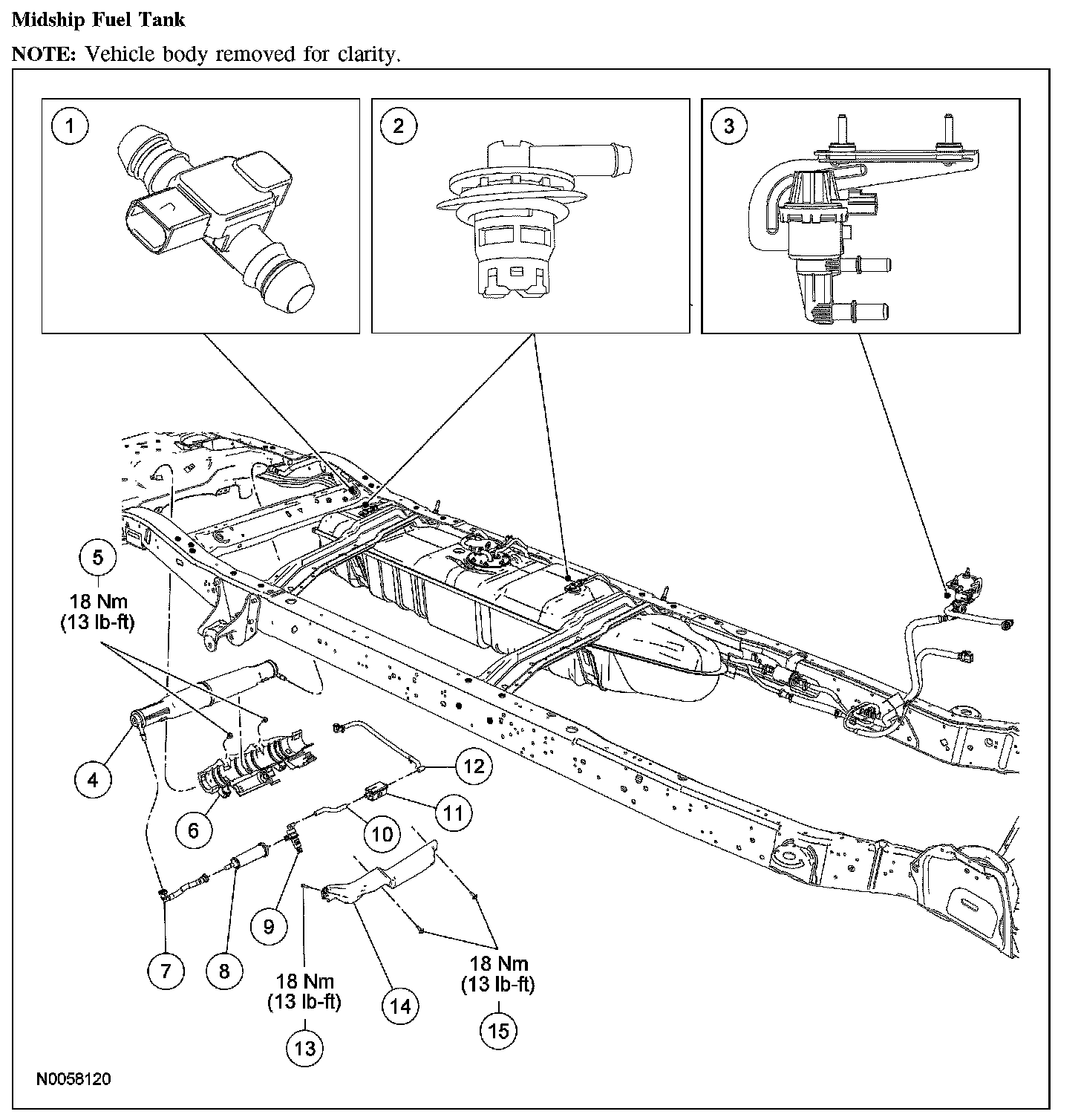

Midship Fuel Tank (Part 1):

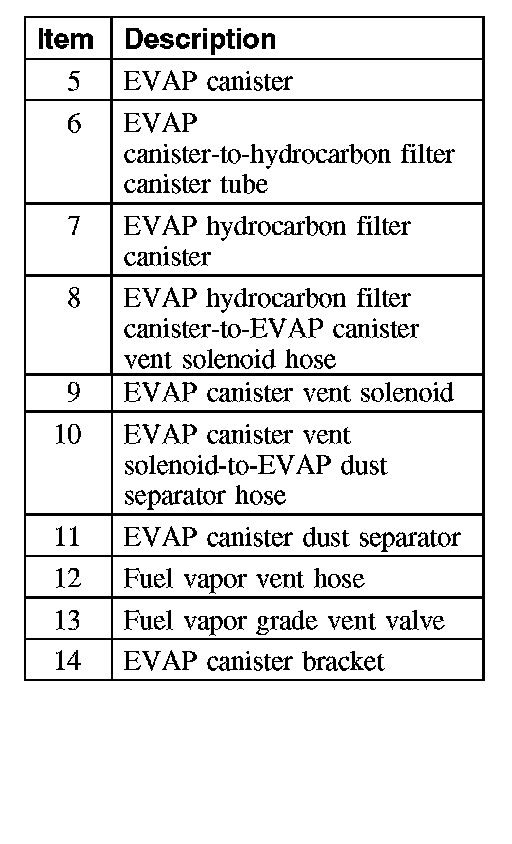

Midship Fuel Tank (Part 2):

Exploded View

Removal and Installation

All fuel tanks
1. With the vehicle in NEUTRAL, position it on a hoist.

Midship fuel tanks







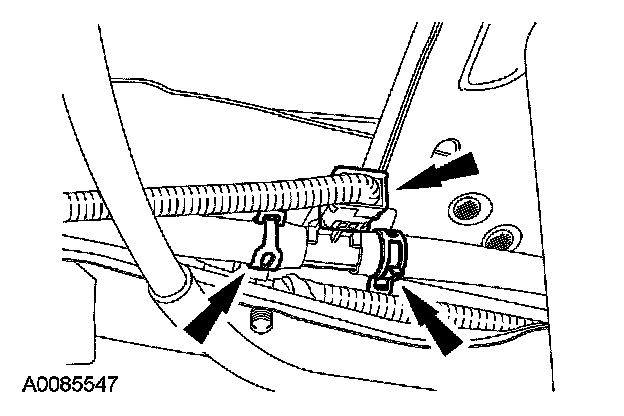

2. Disconnect the electrical connector and the hoses and remove the fuel tank pressure sensor.

Aft-of-axle fuel tanks

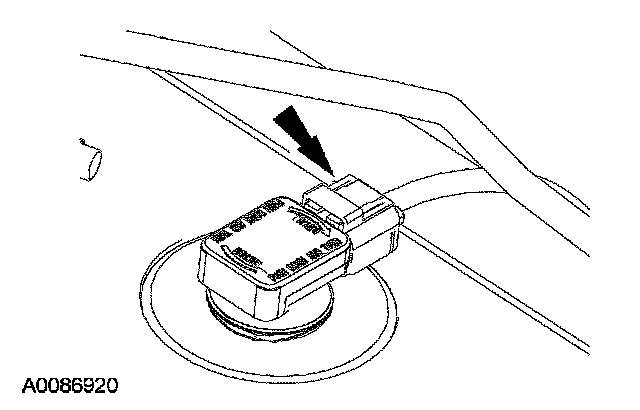

3. Disconnect the fuel tank pressure sensor electrical connector.

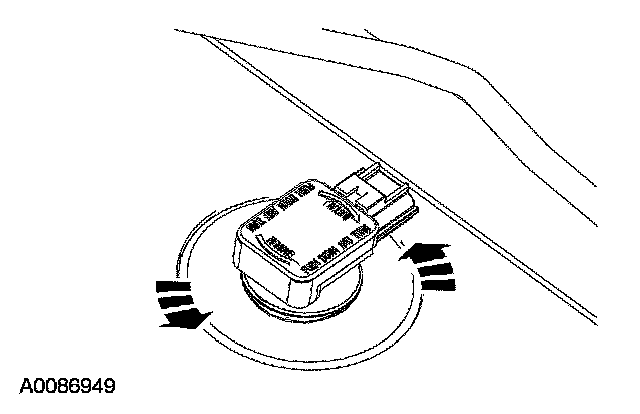

4. Press down and rotate the fuel pressure sensor counterclockwise and remove from the fuel tank.

All fuel tanks
5. To install, reverse the removal procedure.
- Carry out the evaporative emission system leak test. Evaporative Emission System Leak Test
- Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
