Oil Pan, Engine

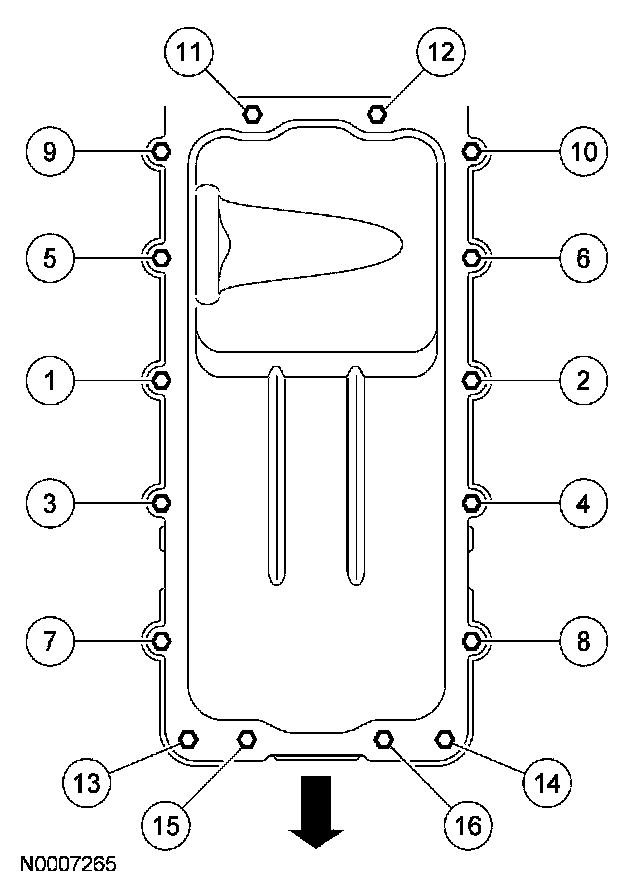

Oil Pan Bolts
First pass 2 Nm (18 inch lbs).
Second pass 20 Nm (15 ft. lbs).
Final pass Tighten 60°
