Electrical Diagrams

Wiring Diagrams

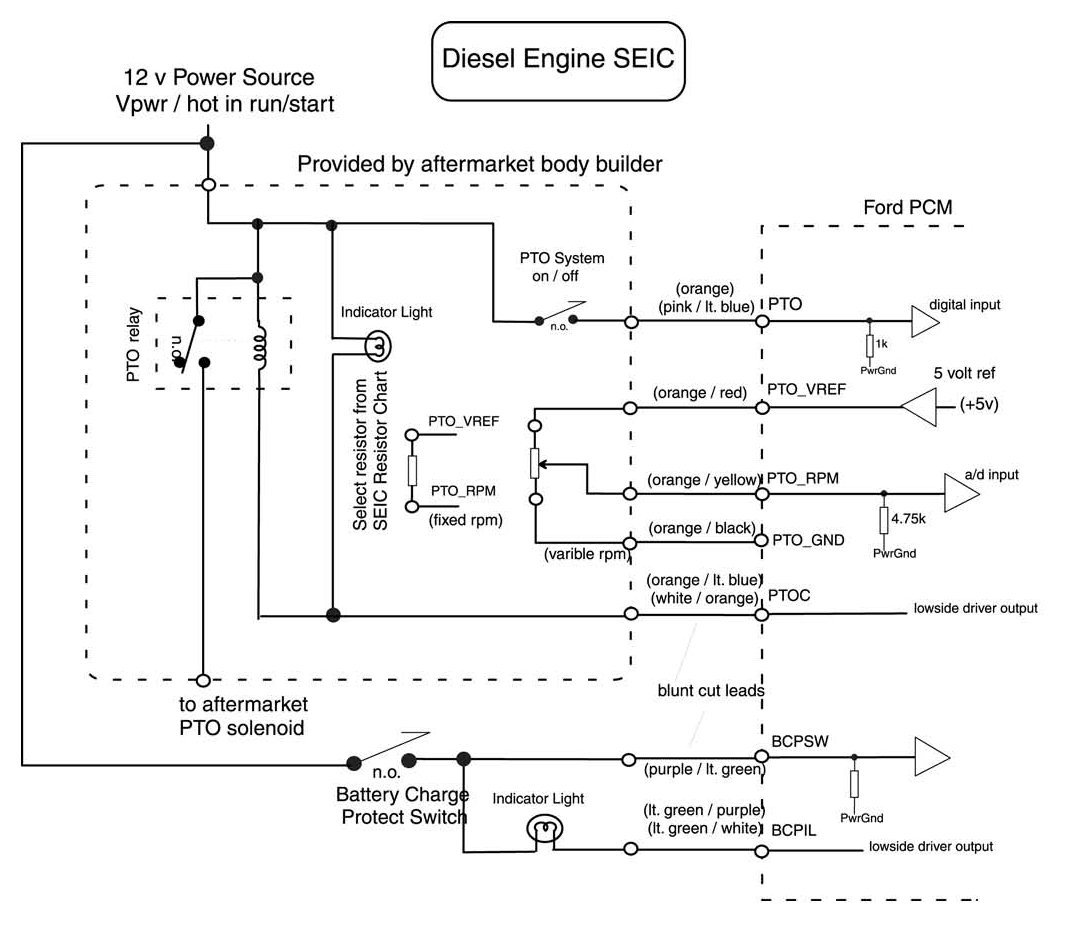

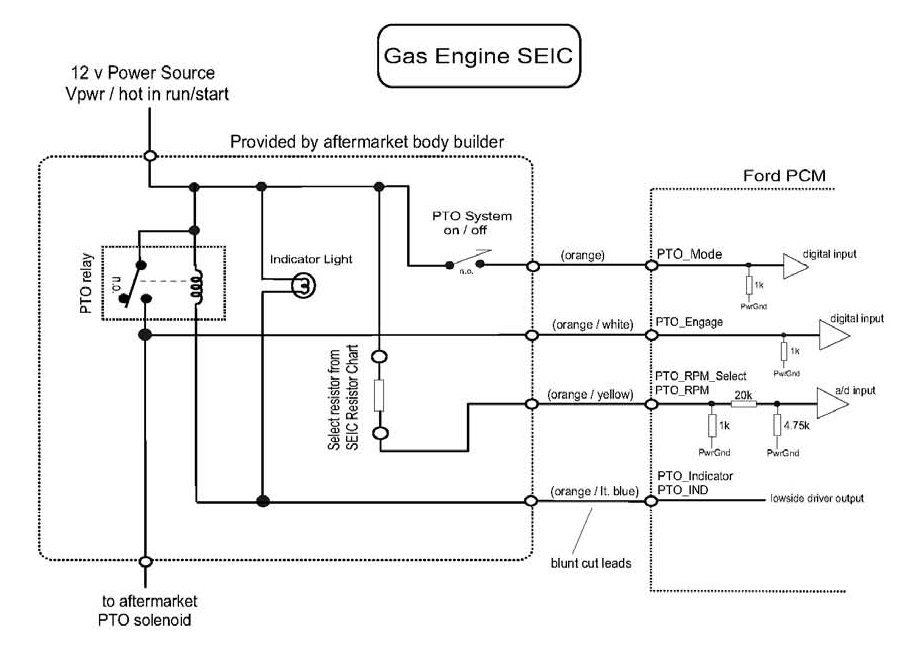

The following diagrams suggest a method to complete the SEIC circuits for gas and diesel engines. Where the wire color or PCM pin call-outs show two different colors or names, the top one refers to Super Duty F-Series vehicles and the bottom refers to E-Series vehicles.
