Engine Control Module

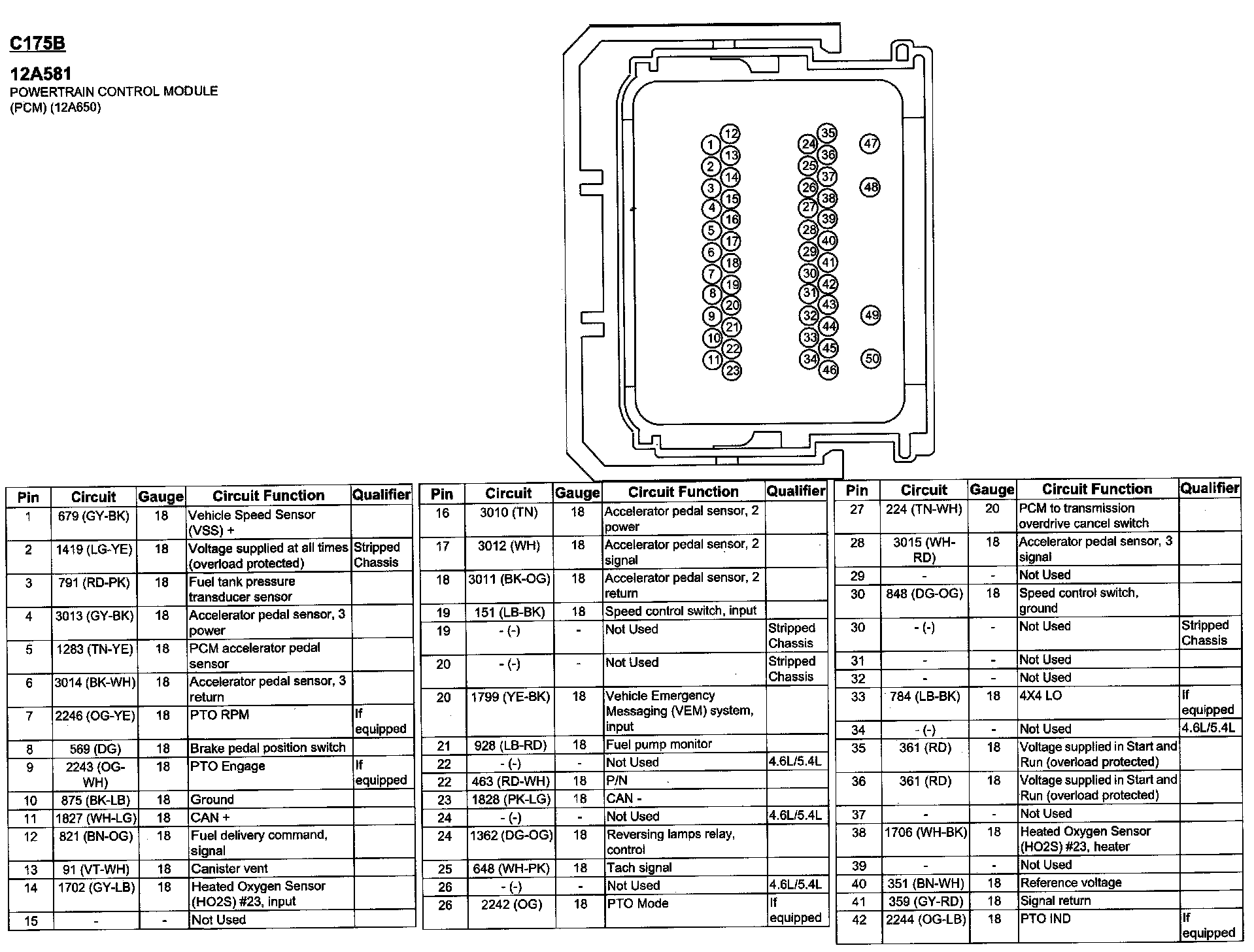

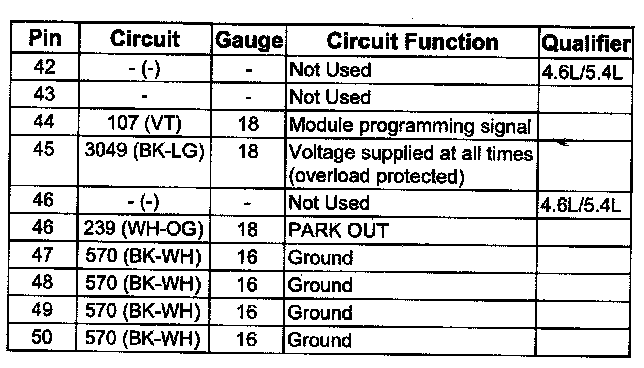

C175B (Part 1):

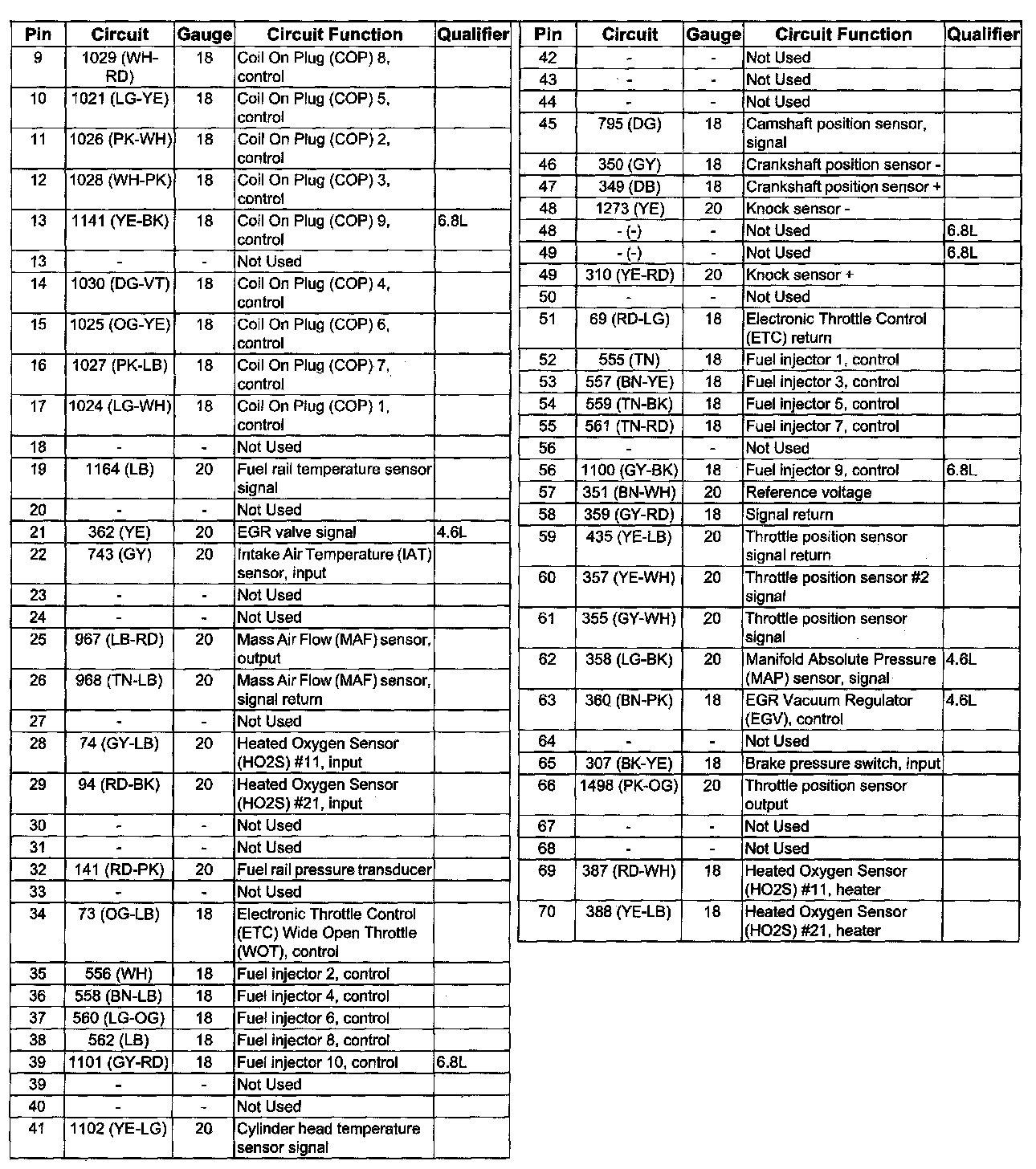

C175B (Part 2):

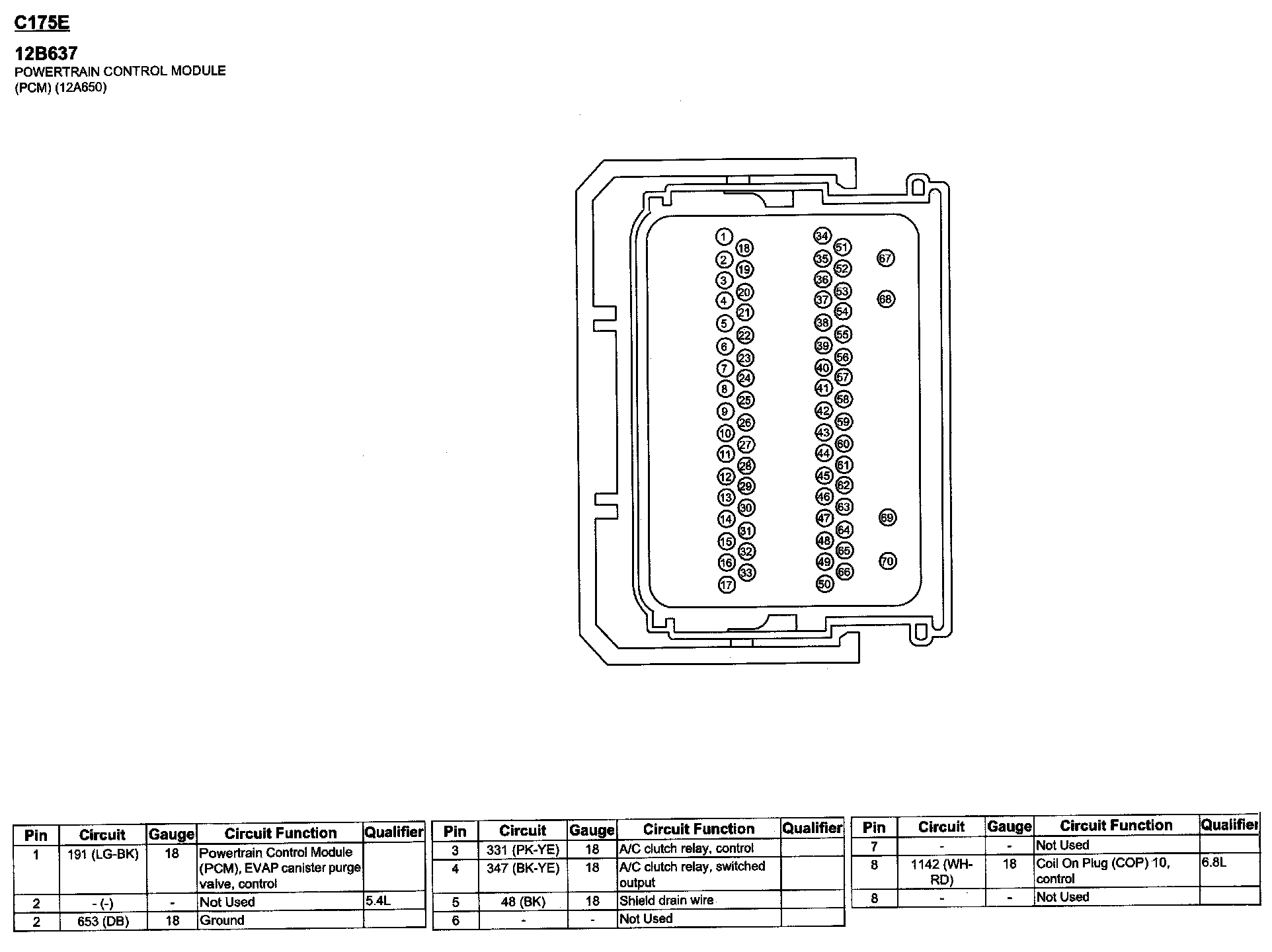

C175E (Part 1):



C175E (Part 2):

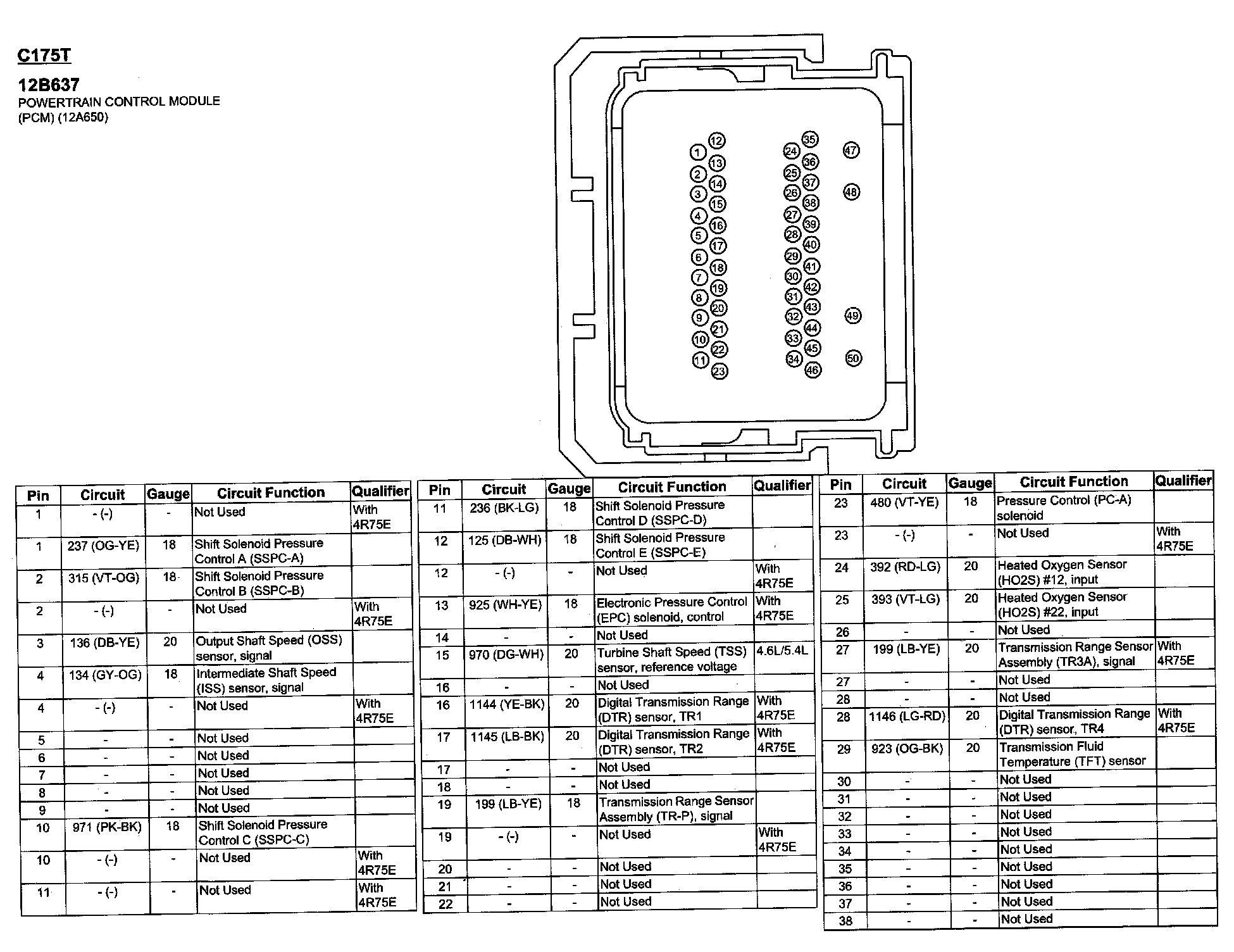

C175T (Part 1):

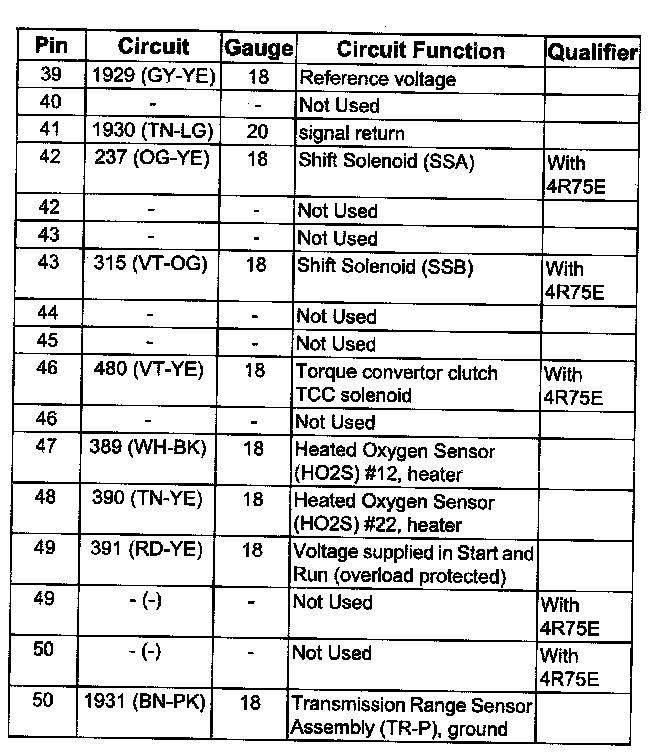

C175T (Part 2):

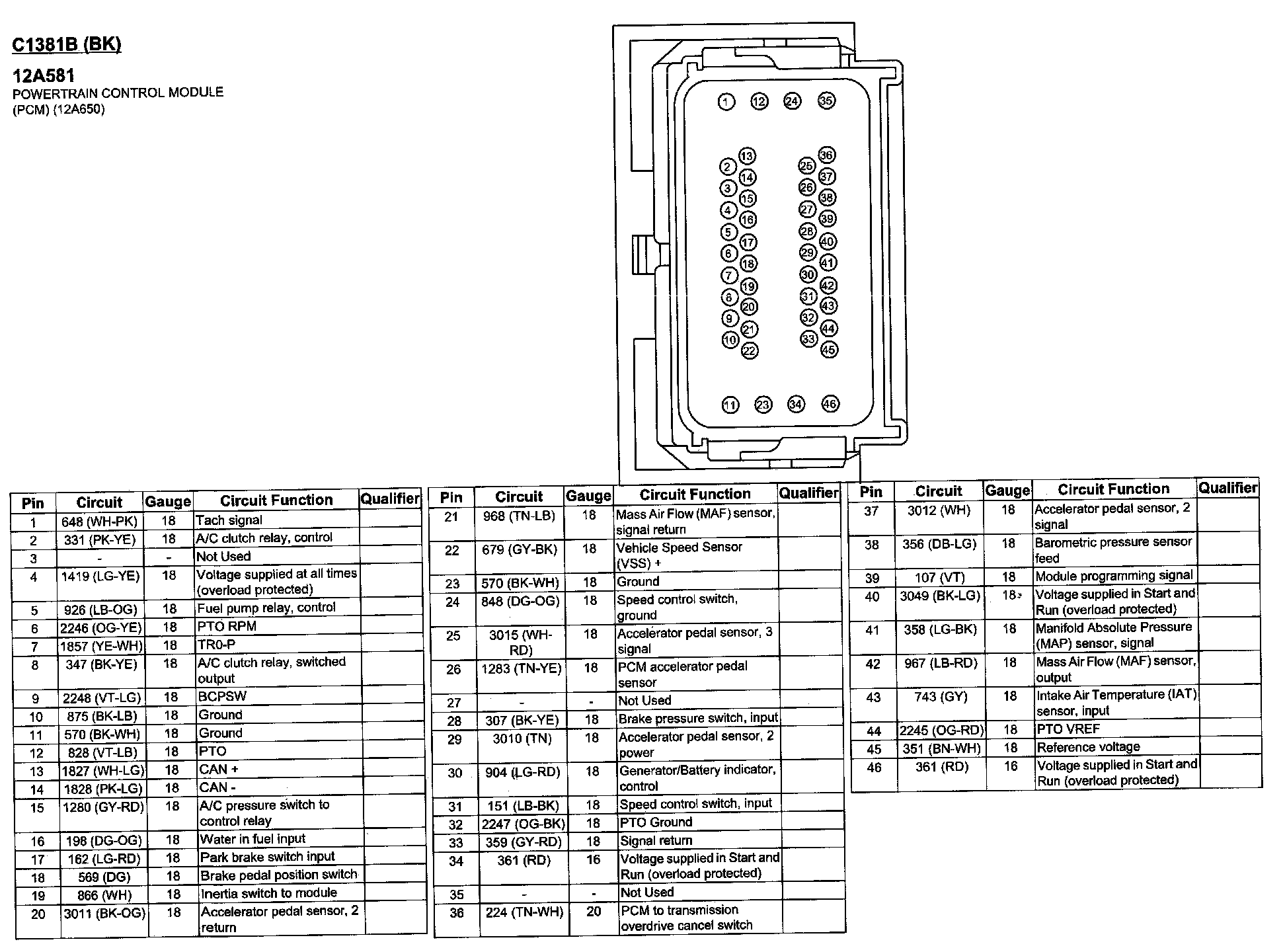

C1381B:

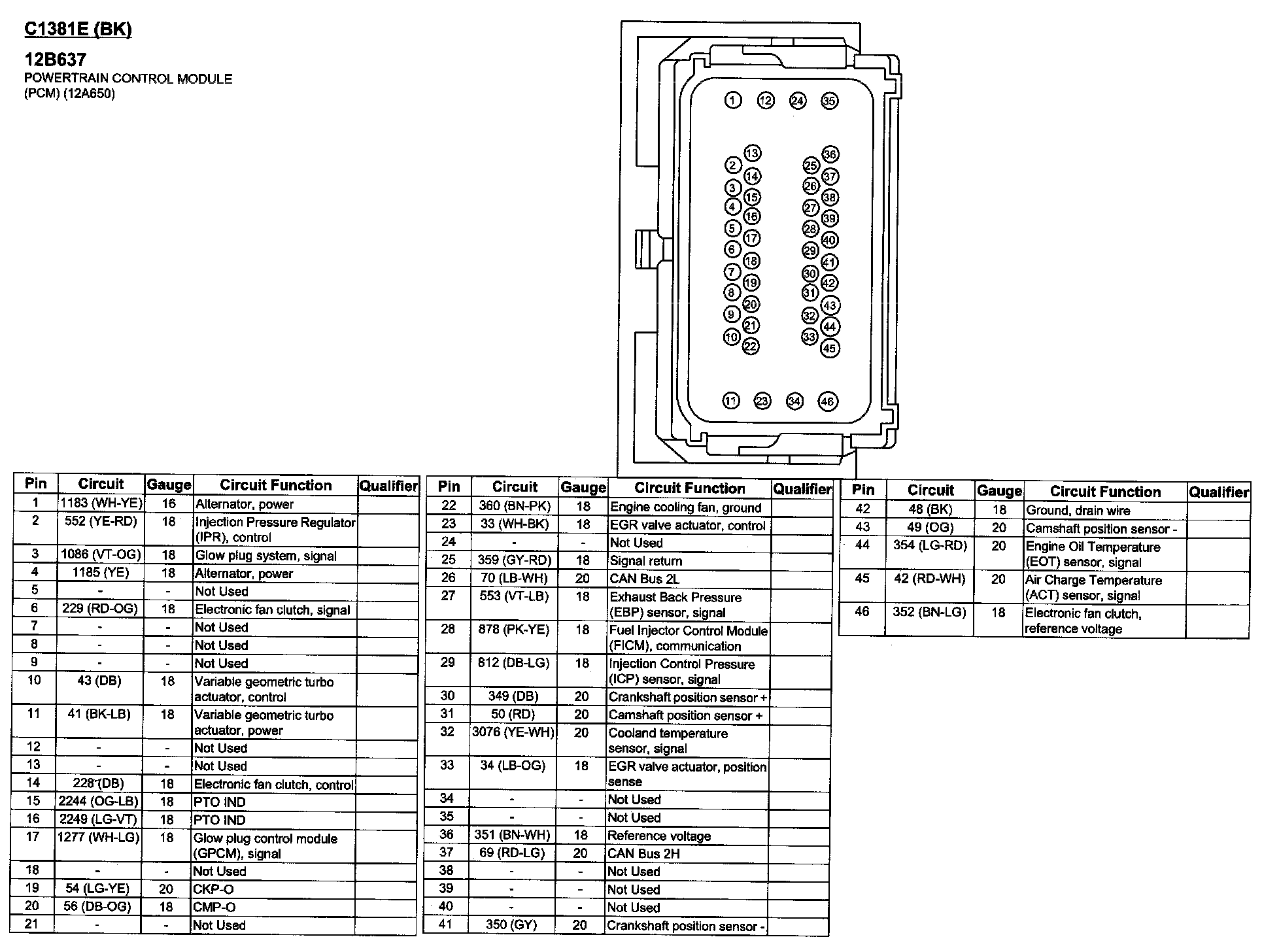

C1381E:

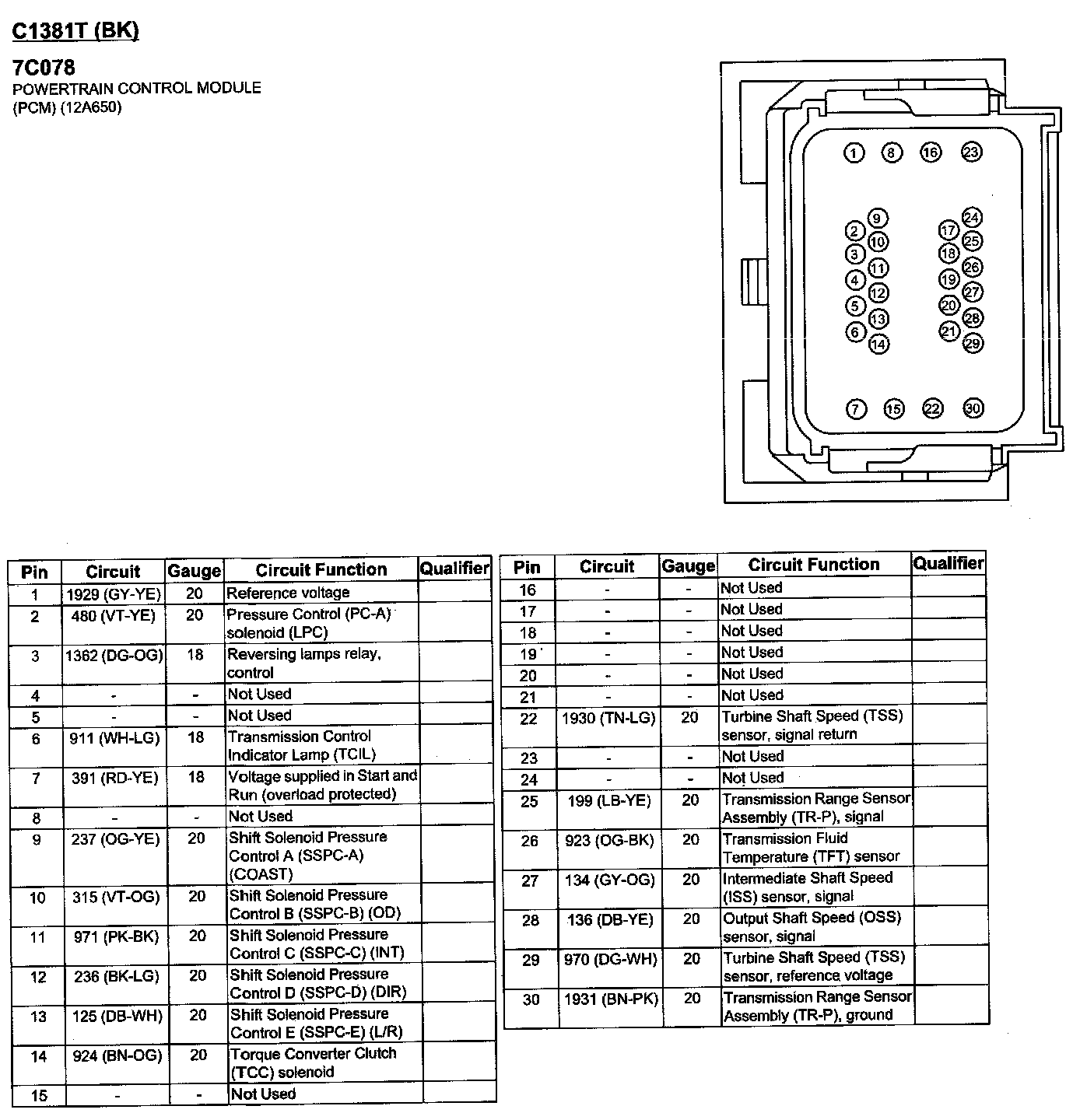

C1381T:
