Engine Lubrication

Engine Lubrication Components - Exploded View

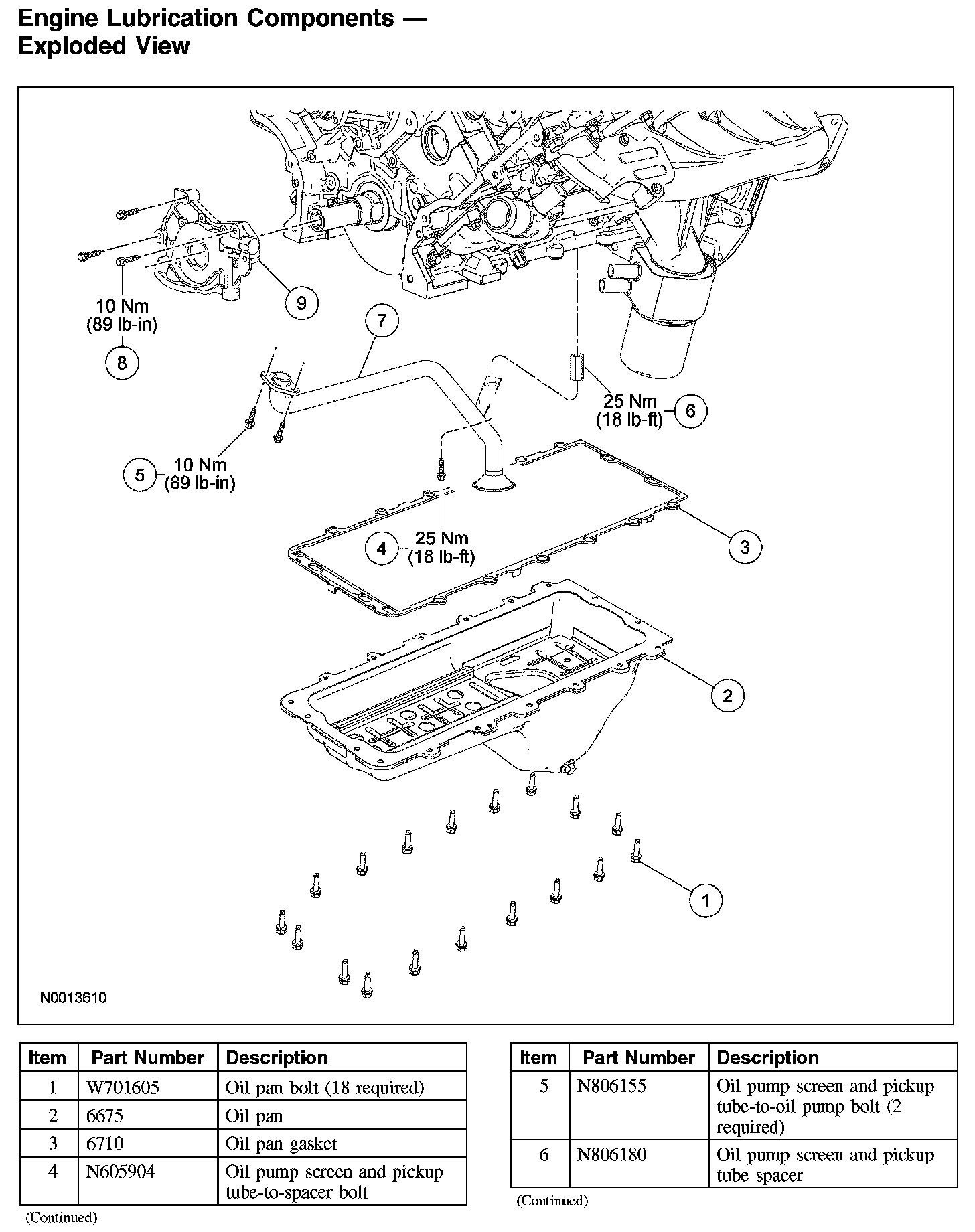

Engine Lubrication Components - Exploded View (Part 1):

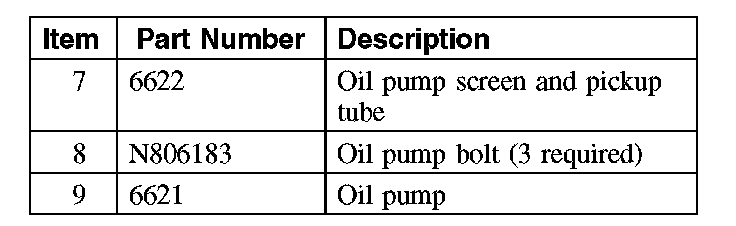

Engine Lubrication Components - Exploded View (Part 2):
