System Diagram

Engine - Lower End

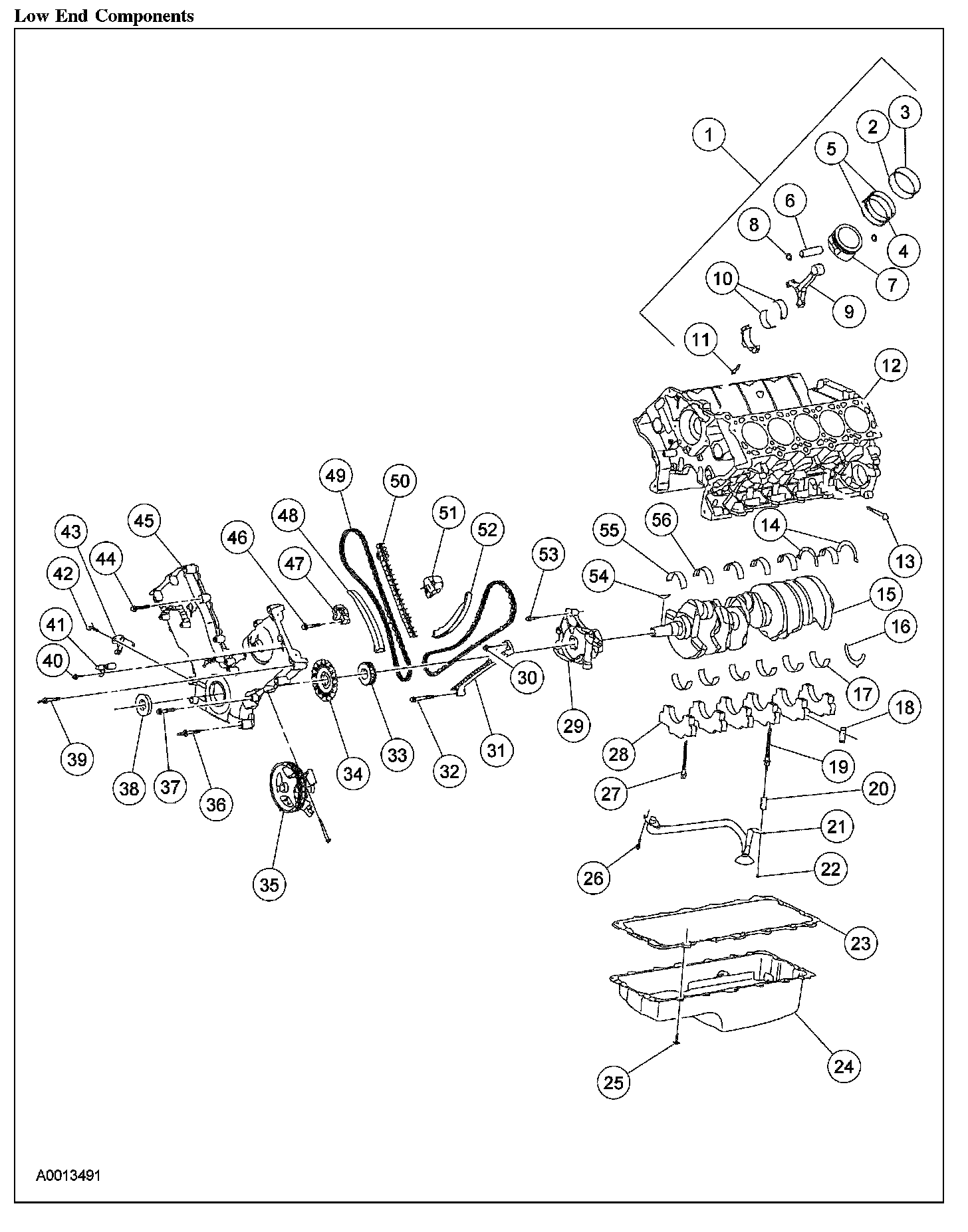

Low End Components (Part 1):

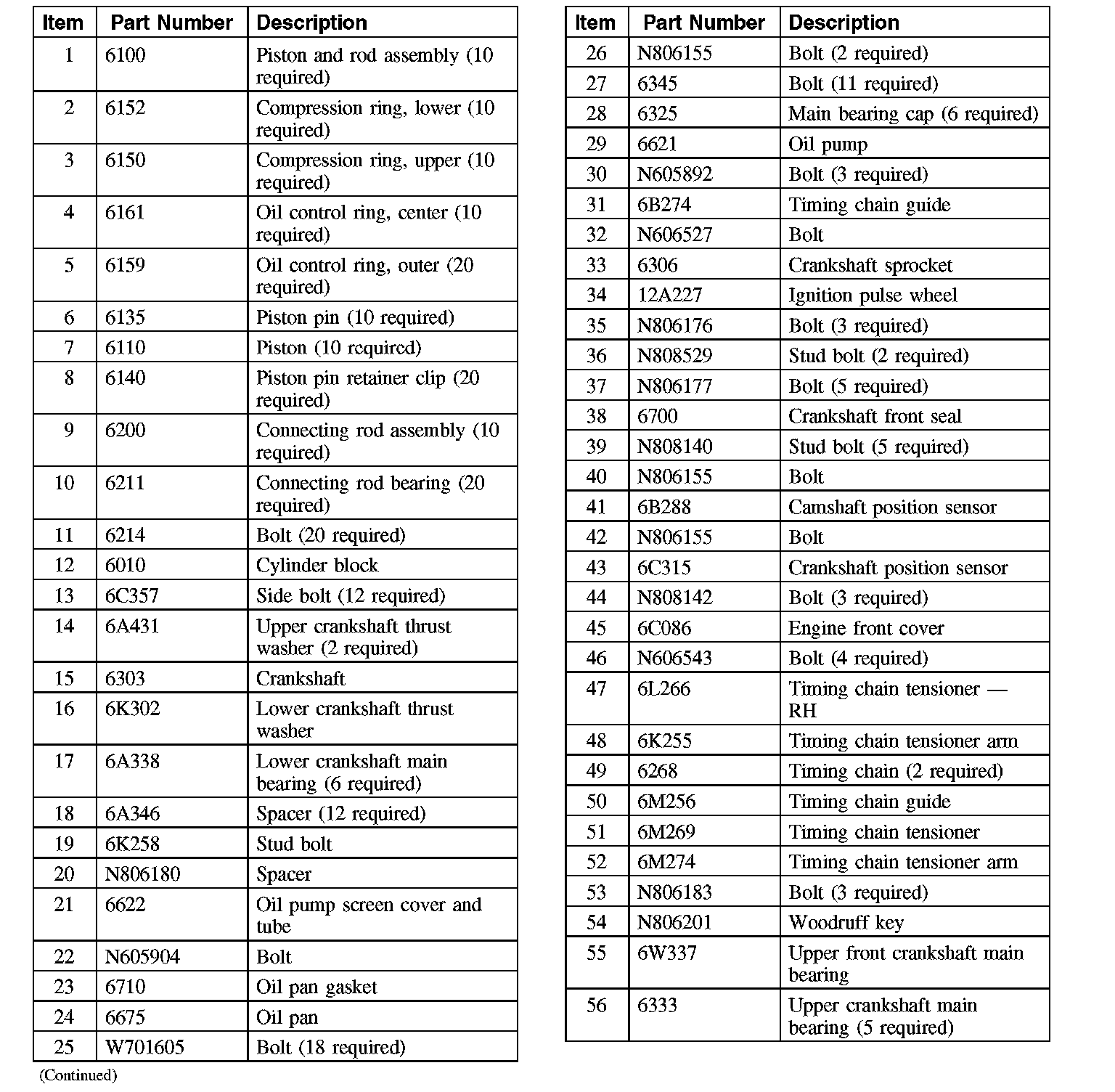

Low End Components (Part 2):

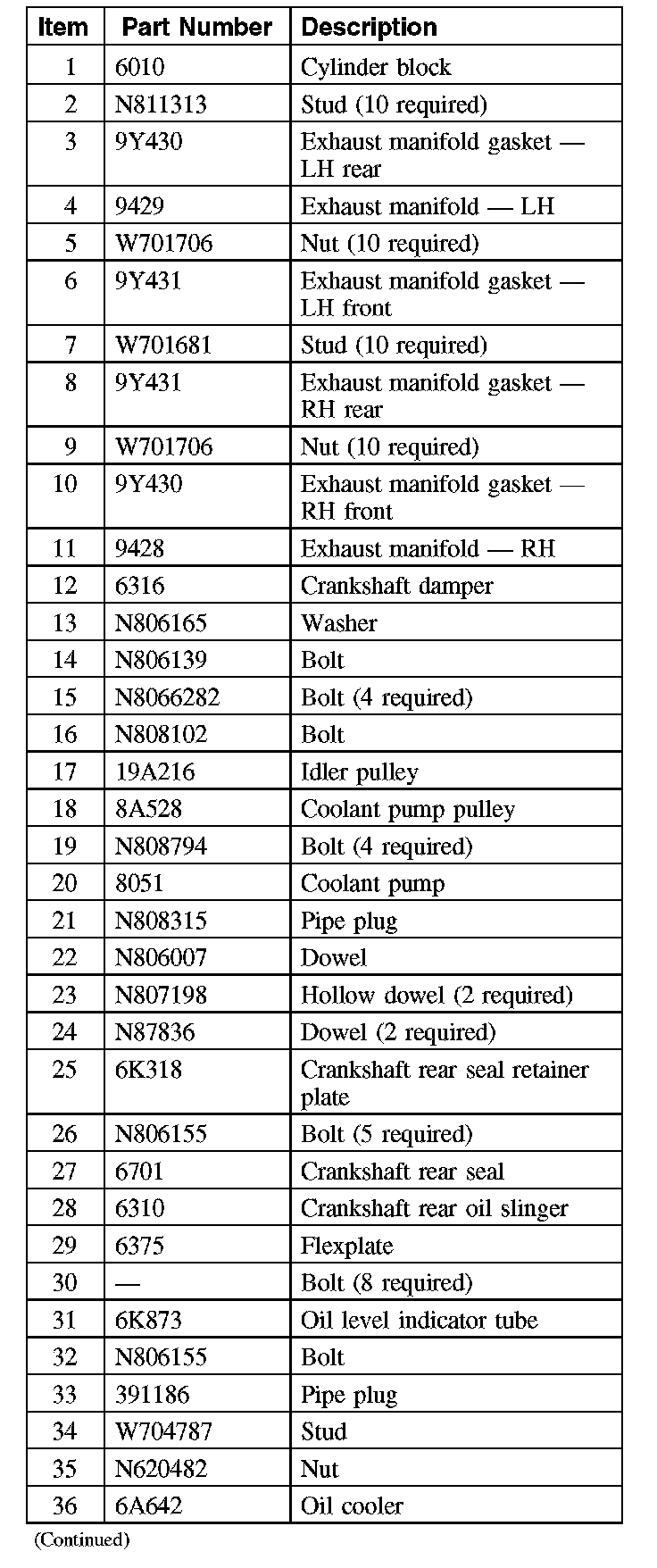

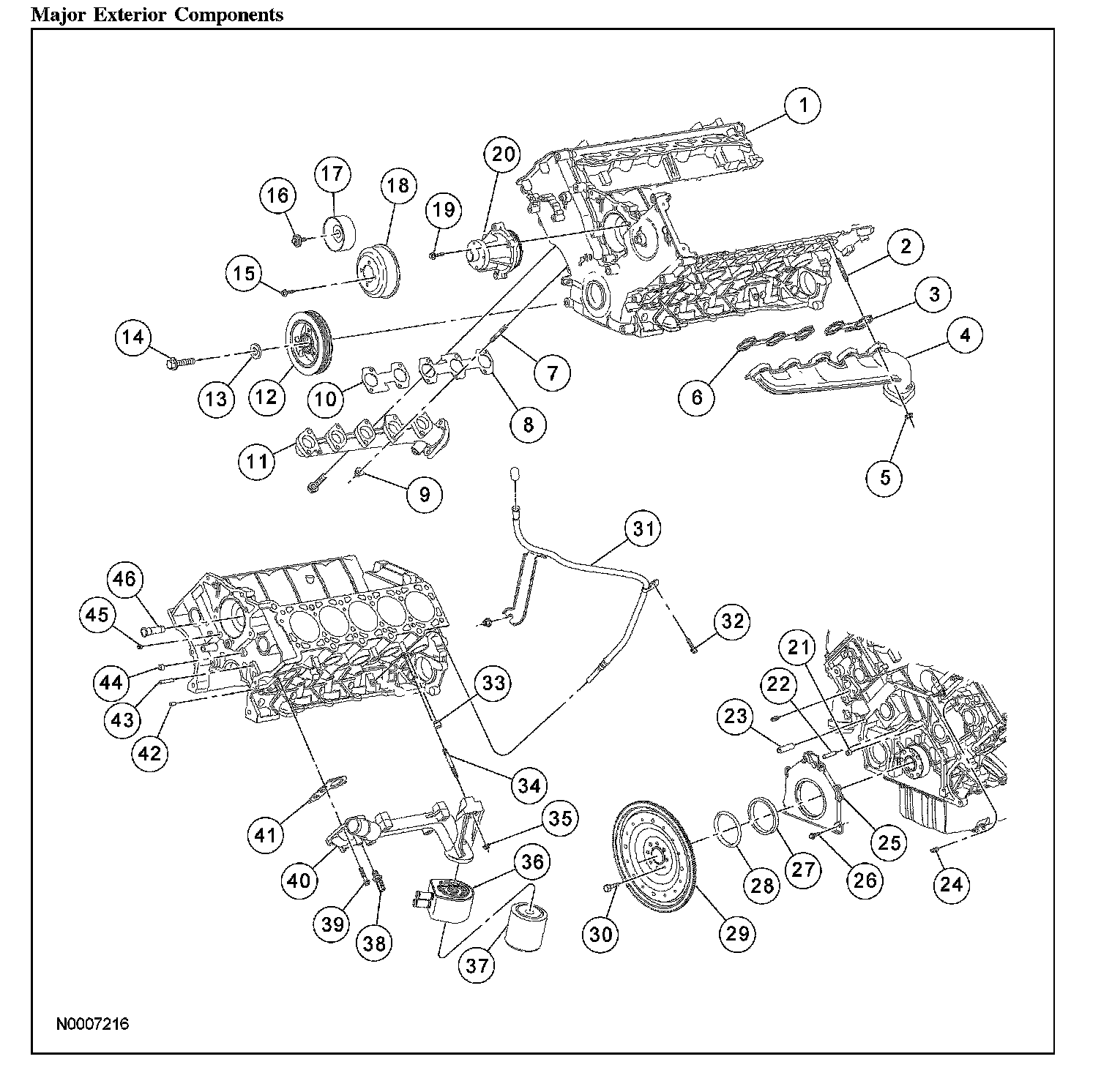

Major Exterior Components (Part 1):




Major Exterior Components (Part 2):

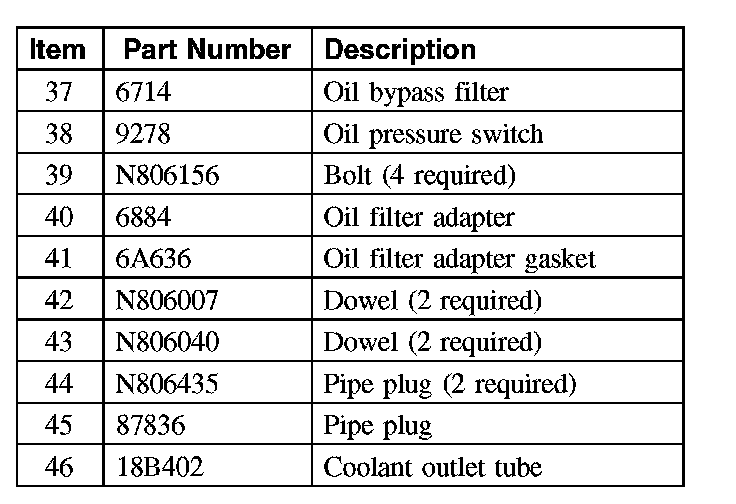

Major Exterior Components (Part 3):
