System Specifications

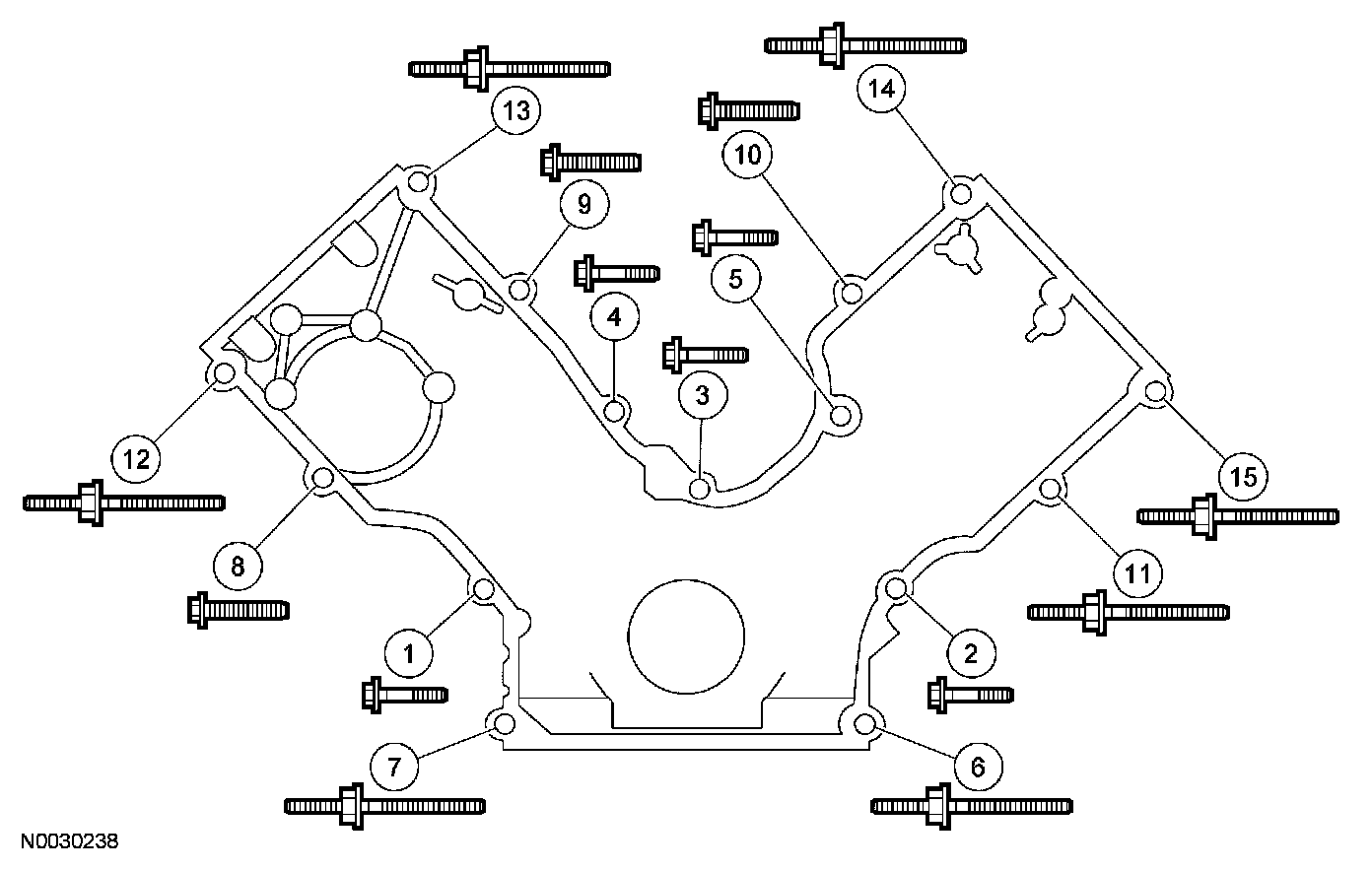

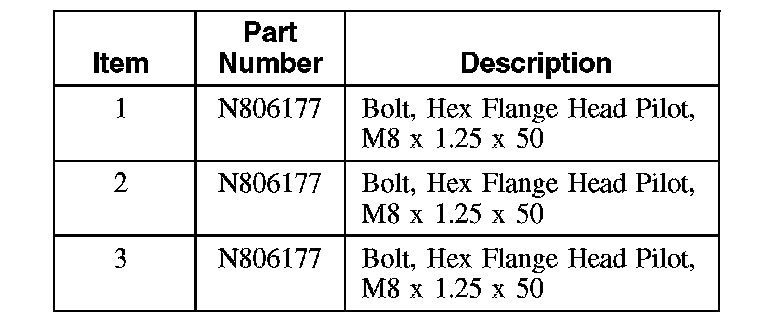

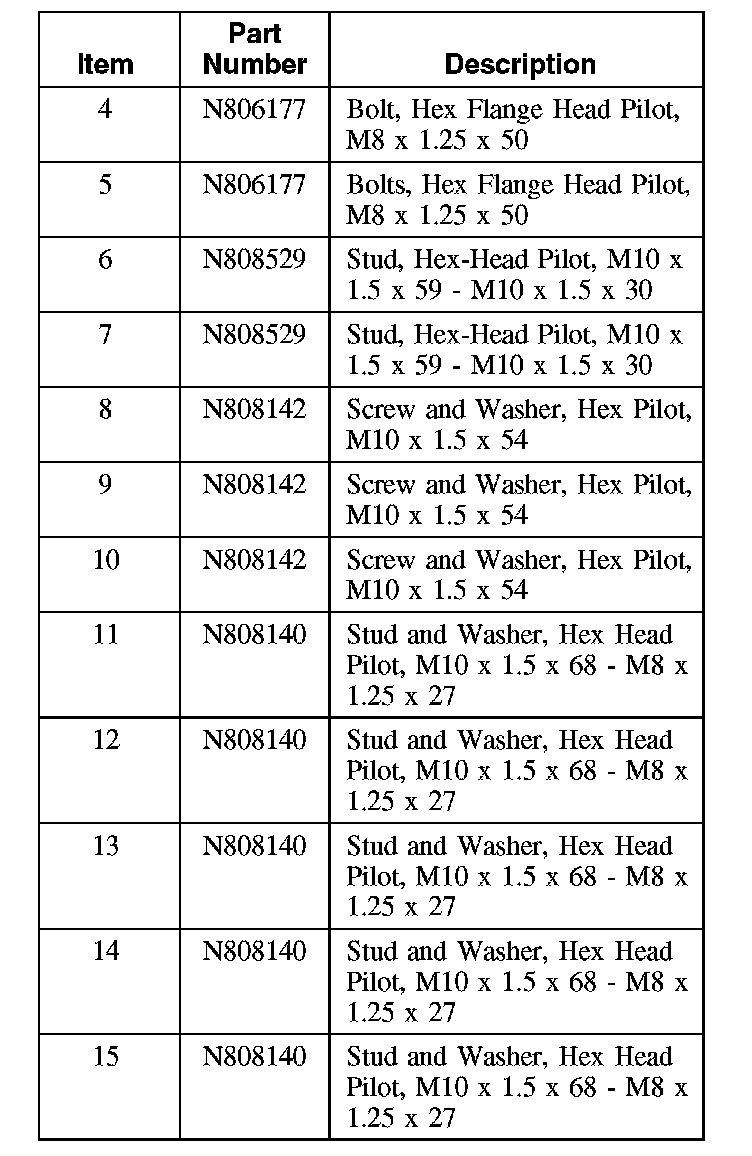

Engine Front Cover Front Fasteners











First pass: fasteners 1-5 25 Nm (18 ft. lbs).
Final pass: fasteners 6-15 48 Nm (35 ft. lbs).

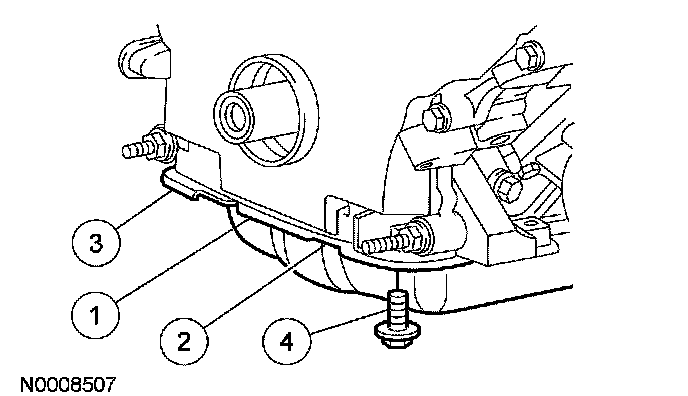

Engine Front Cover Lower Fasteners





First pass 20 Nm (15 ft. lbs).
Final pass Tighten 60°

Crankshaft Pulley Bolt

This bolt is torque-to-yield and cannot be reused.

First pass 90 Nm (66 ft. lbs).
Second pass Loosen one full turn
Third pass 50 Nm (37 ft. lbs)
Final pass Tighten 90° without exceeding 200 Nm (148 ft. lbs).

LH or RH Timing Chain Tensioner
Tighten to 25 Nm (18 ft. lbs)
