Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

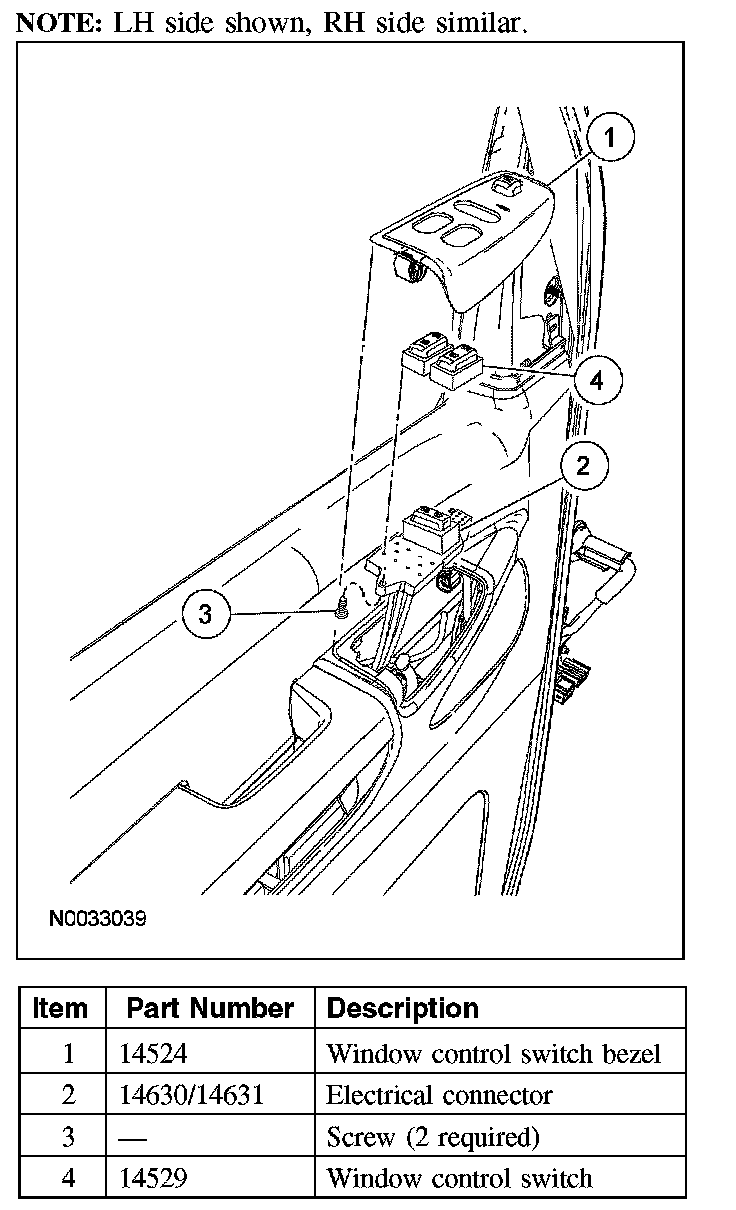

NOTE: LH side shown, RH side similar.

Removal and Installation

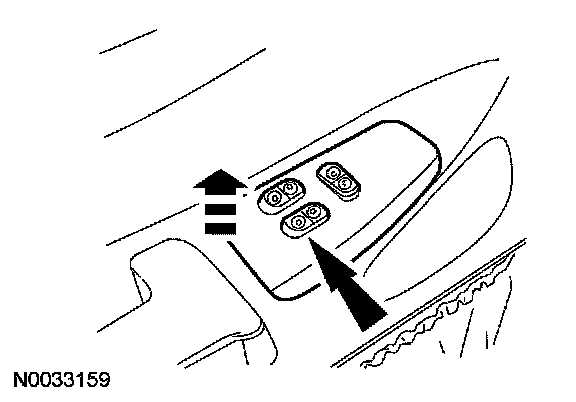

1. Remove the window control switch bezel.

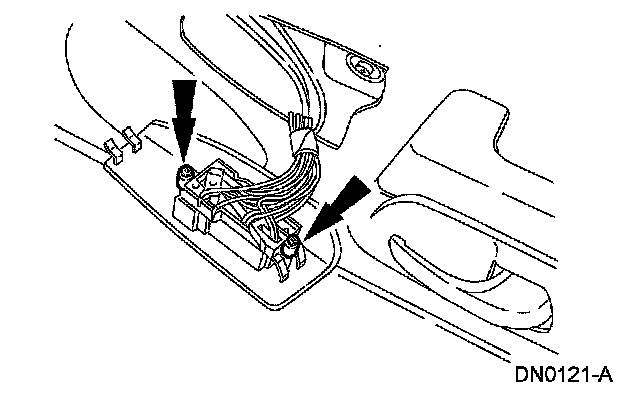

2. Remove the 2 screws.

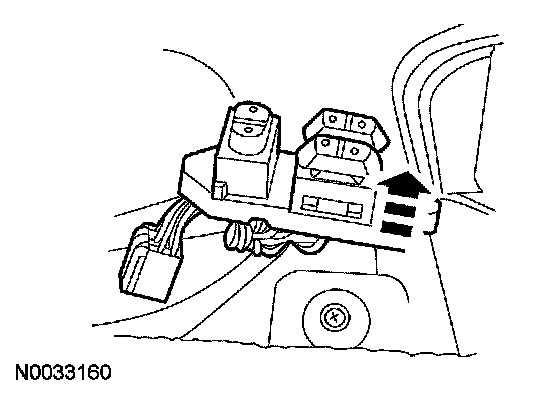

3. Remove the window control switch.
4. To install, reverse the removal procedure.
