Differential Assembly

Rear Drive Axle/Differential - Dana 60 and 70

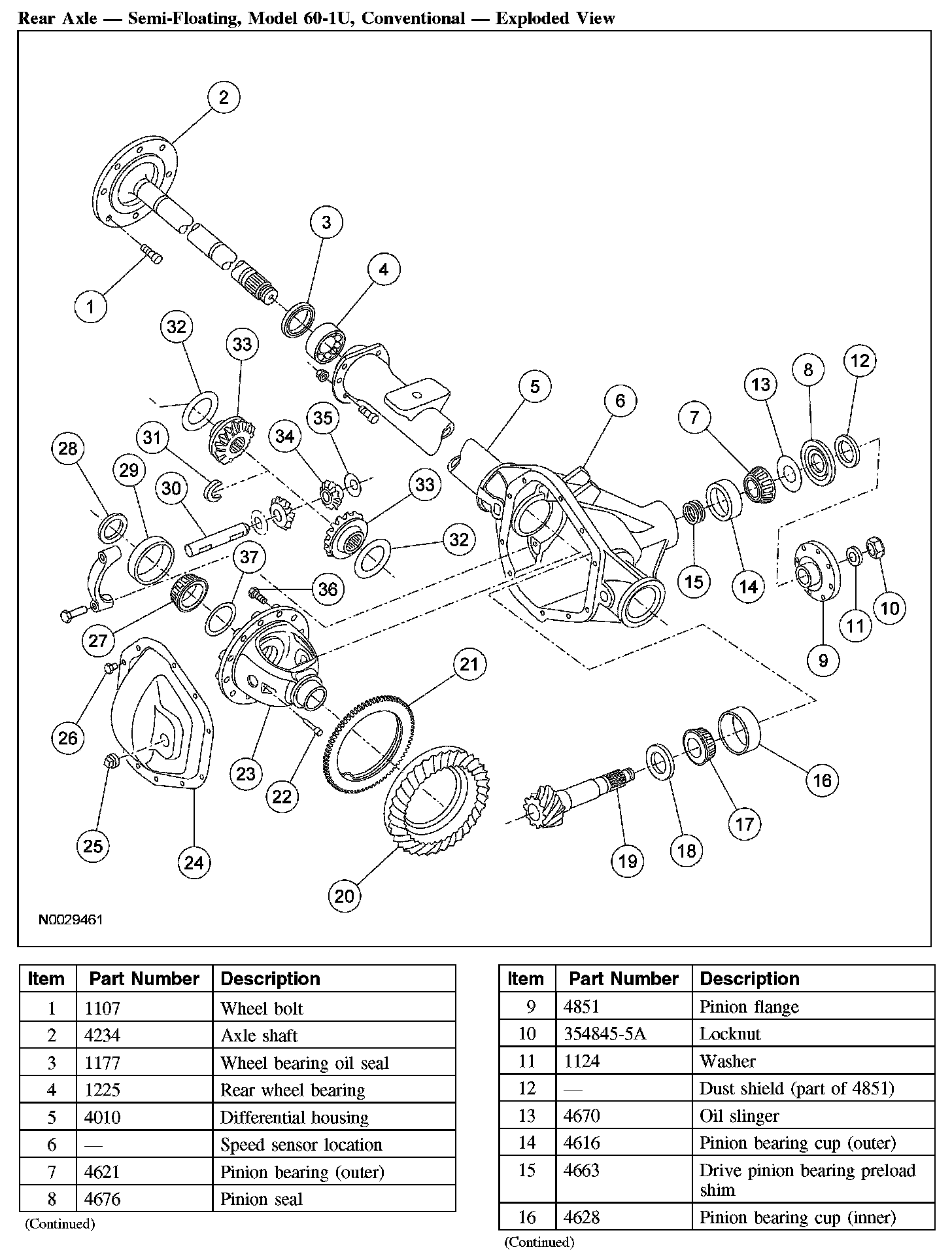

Rear Axle - Semi-Floating, Model 60-1U, Conventional - Exploded View (Part 1):

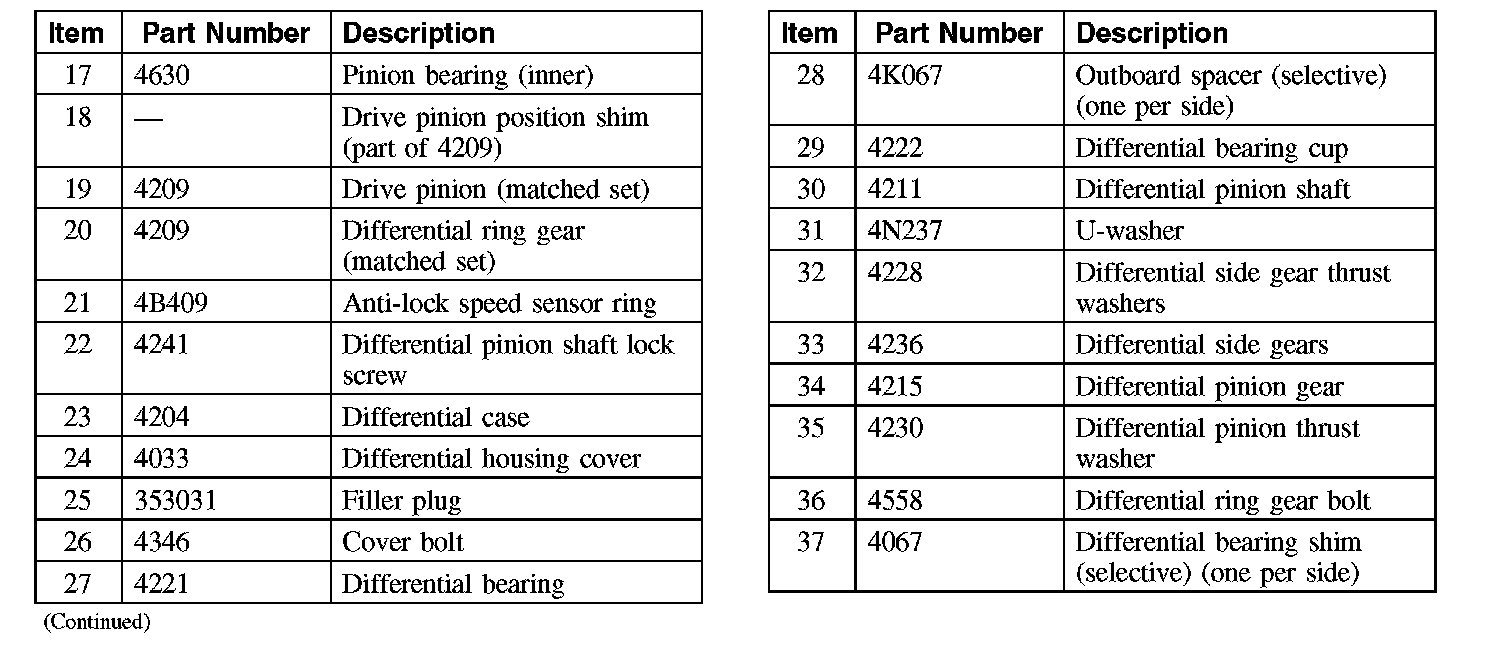

Rear Axle - Semi-Floating, Model 60-1U, Conventional - Exploded View (Part 2):

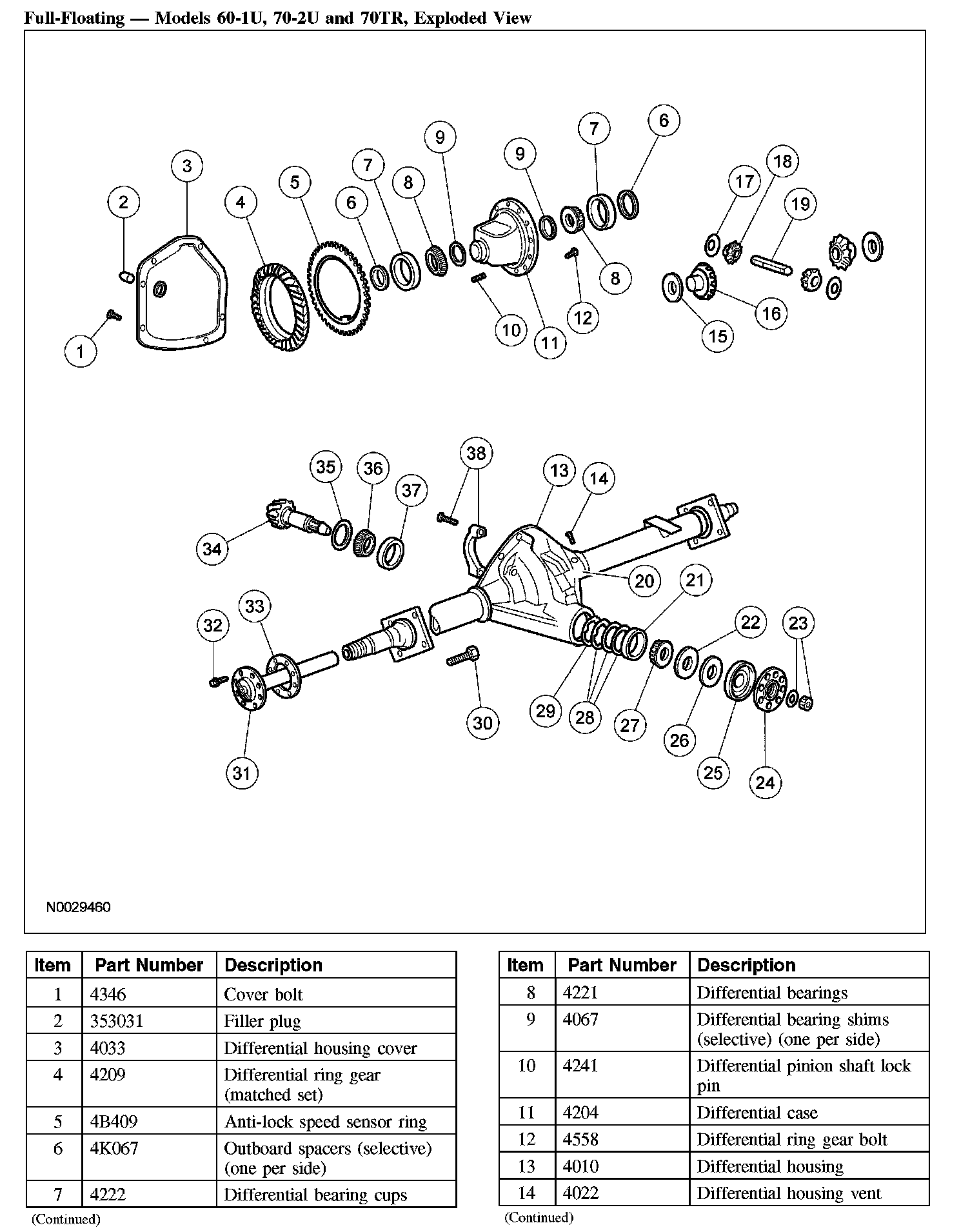

Full-Floating - Models 60-1U, 70-2U and 70TR, Exploded View (Part 1):

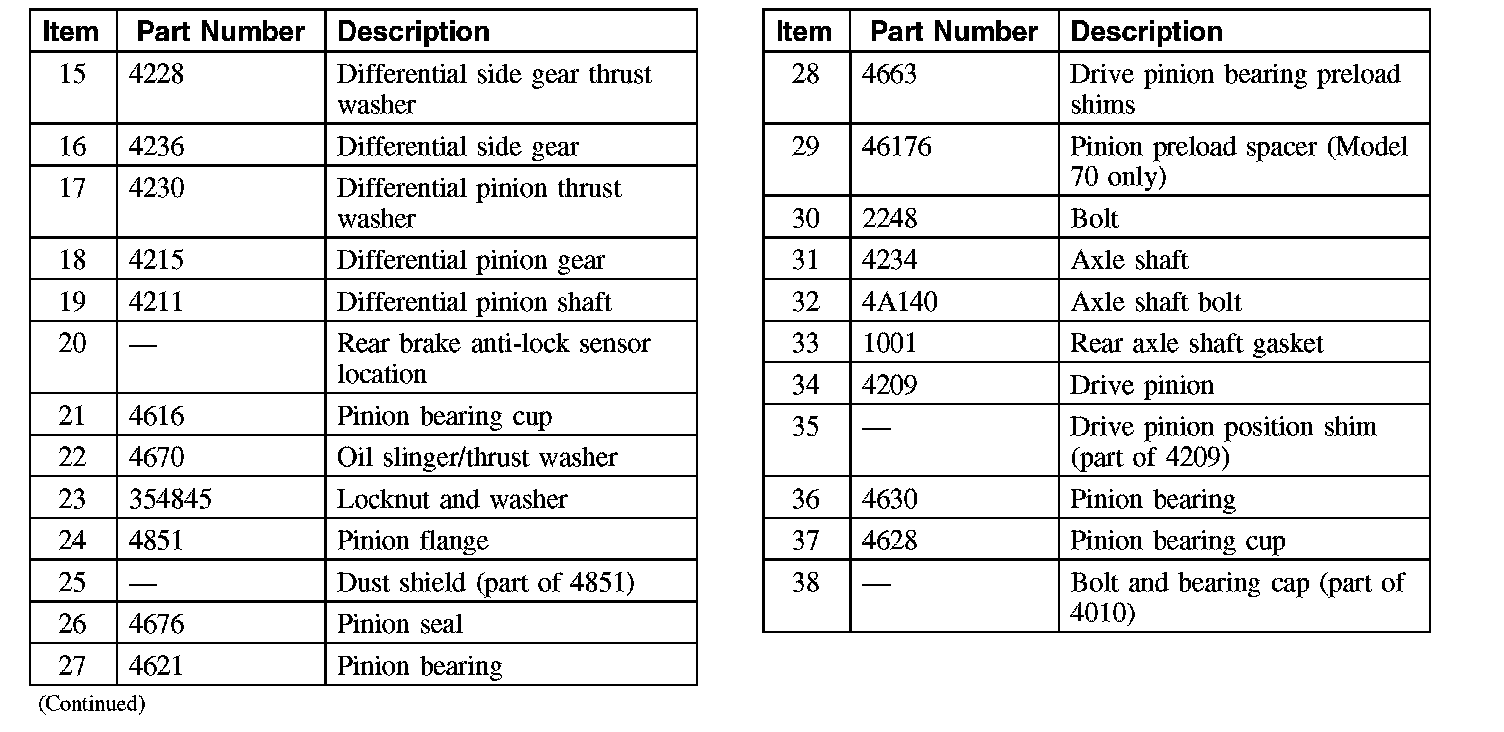

Full-Floating - Models 60-1U, 70-2U and 70TR, Exploded View (Part 2):

Differential - Dana Limited-Slip

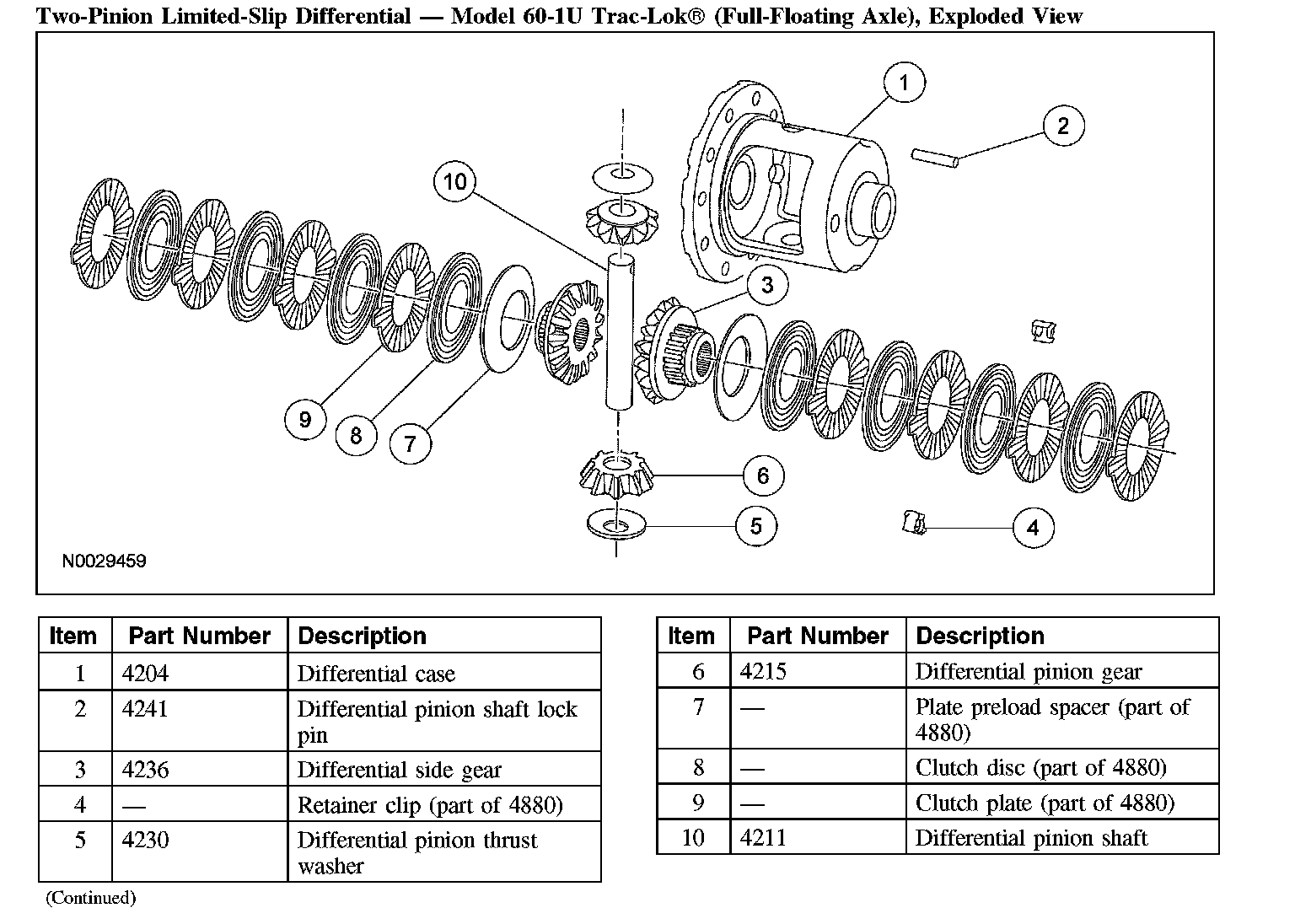

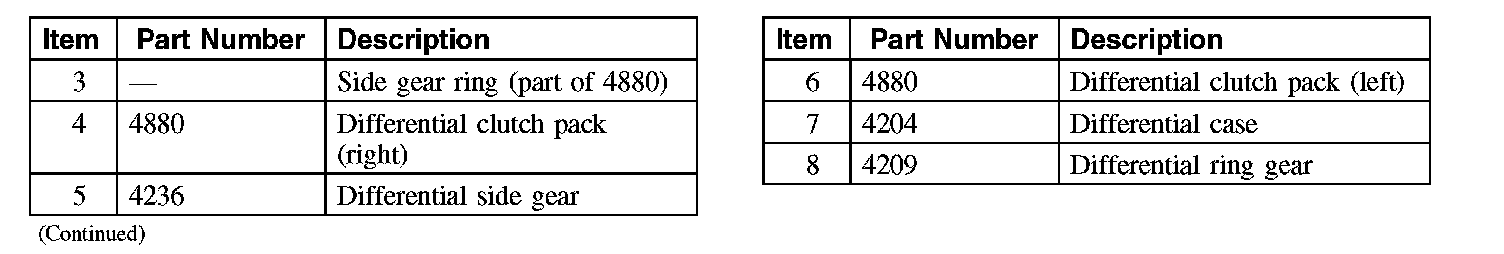

Two-Pinion Limited-Slip Differential - Model 60-1U Trac-Lok(R) (Full-Floating Axle), Exploded View:

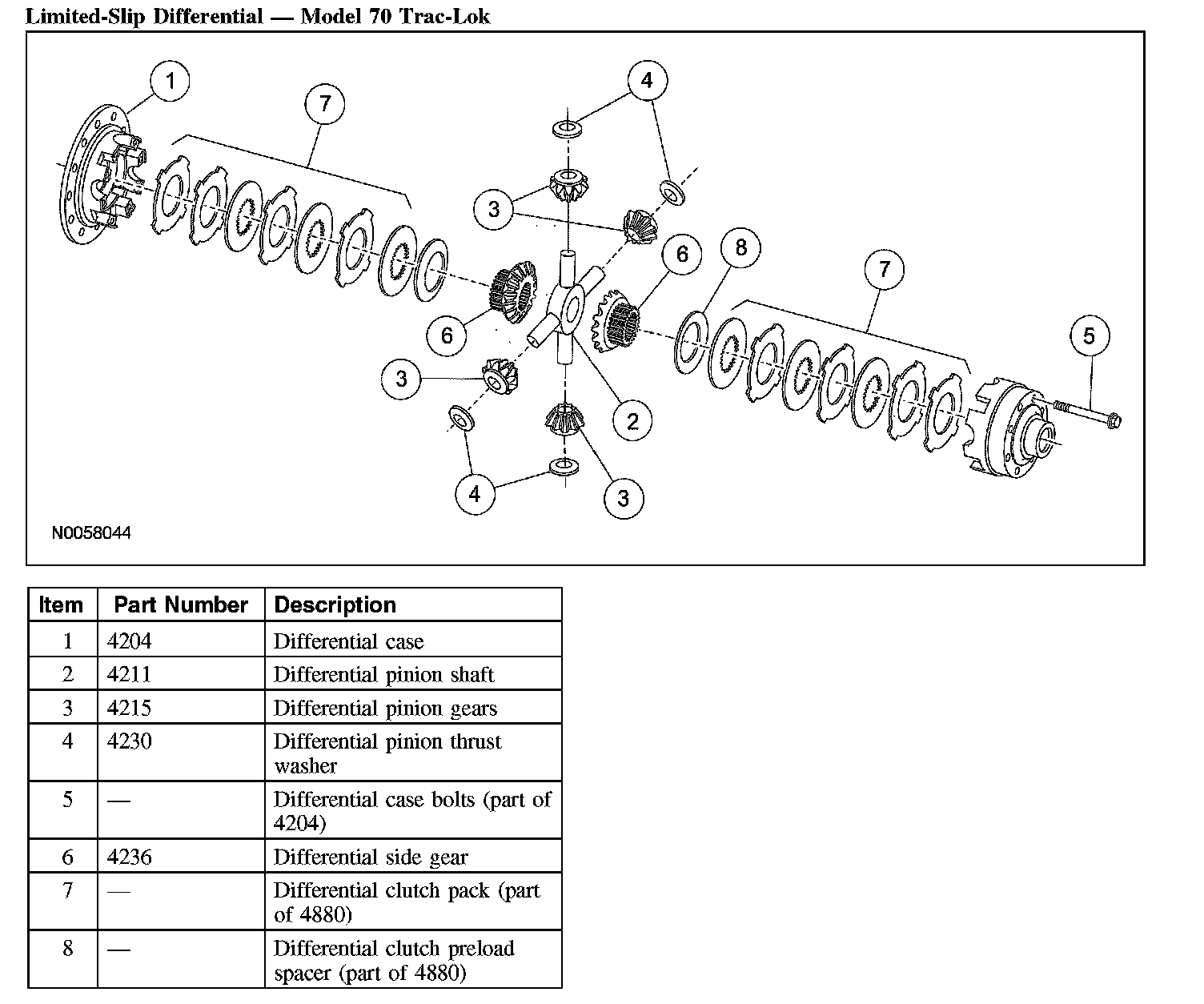

Limited-Slip Differential - Model 70 Trac-Lok:

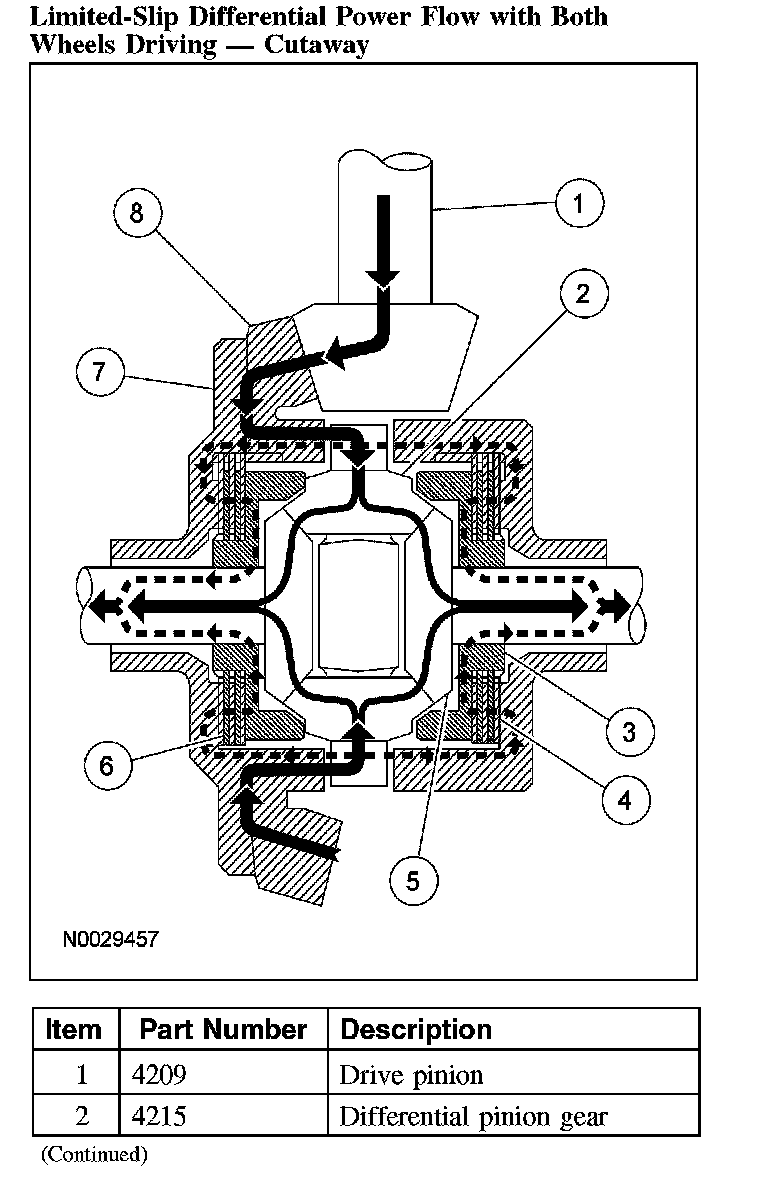

Limited-Slip Differential Power Flow with Both Wheels Driving - Cutaway (Part 1):

Limited-Slip Differential Power Flow with Both Wheels Driving - Cutaway (Part 2):

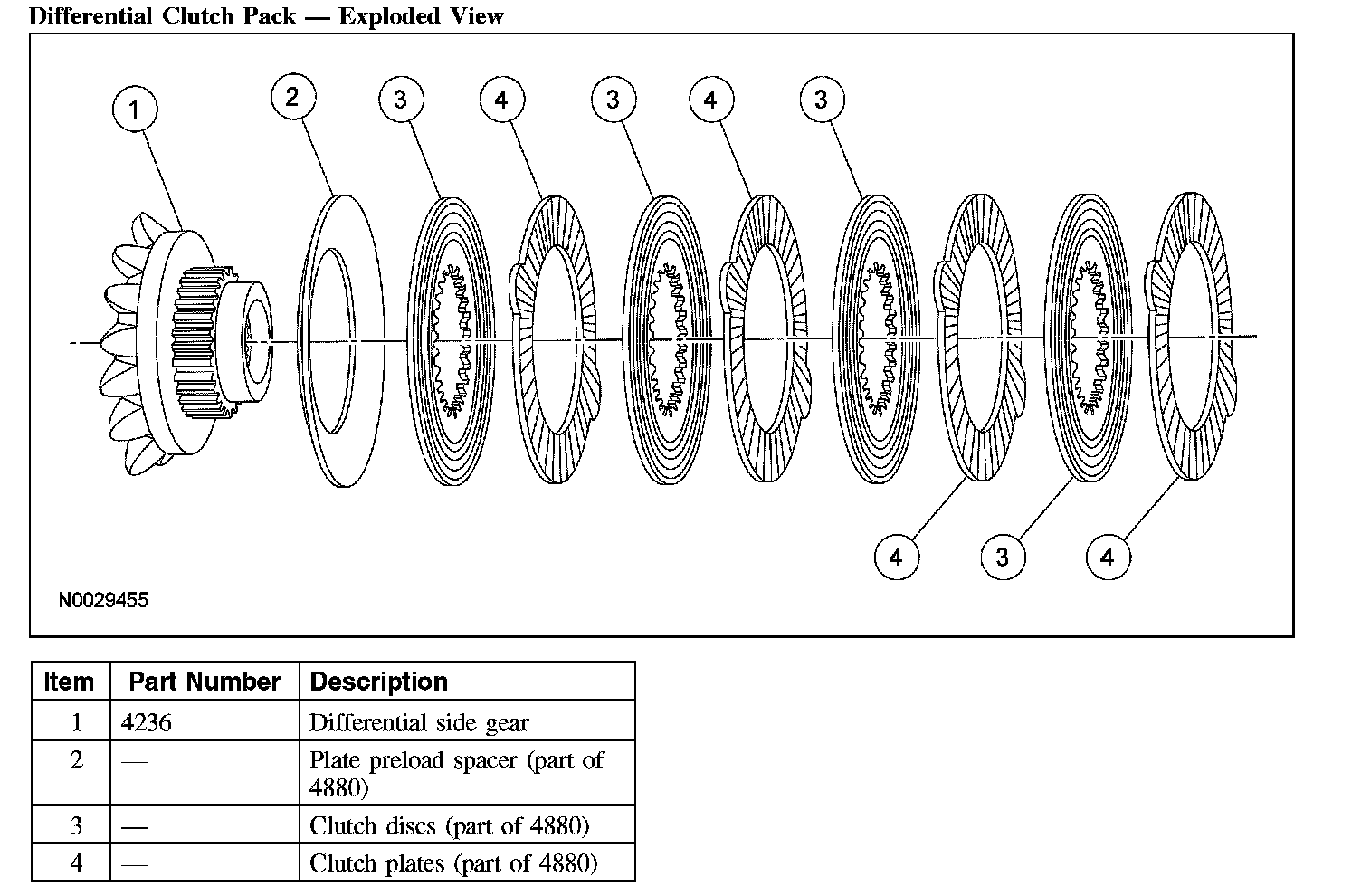

Differential Clutch Pack - Exploded View:
