Flex Plate

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View

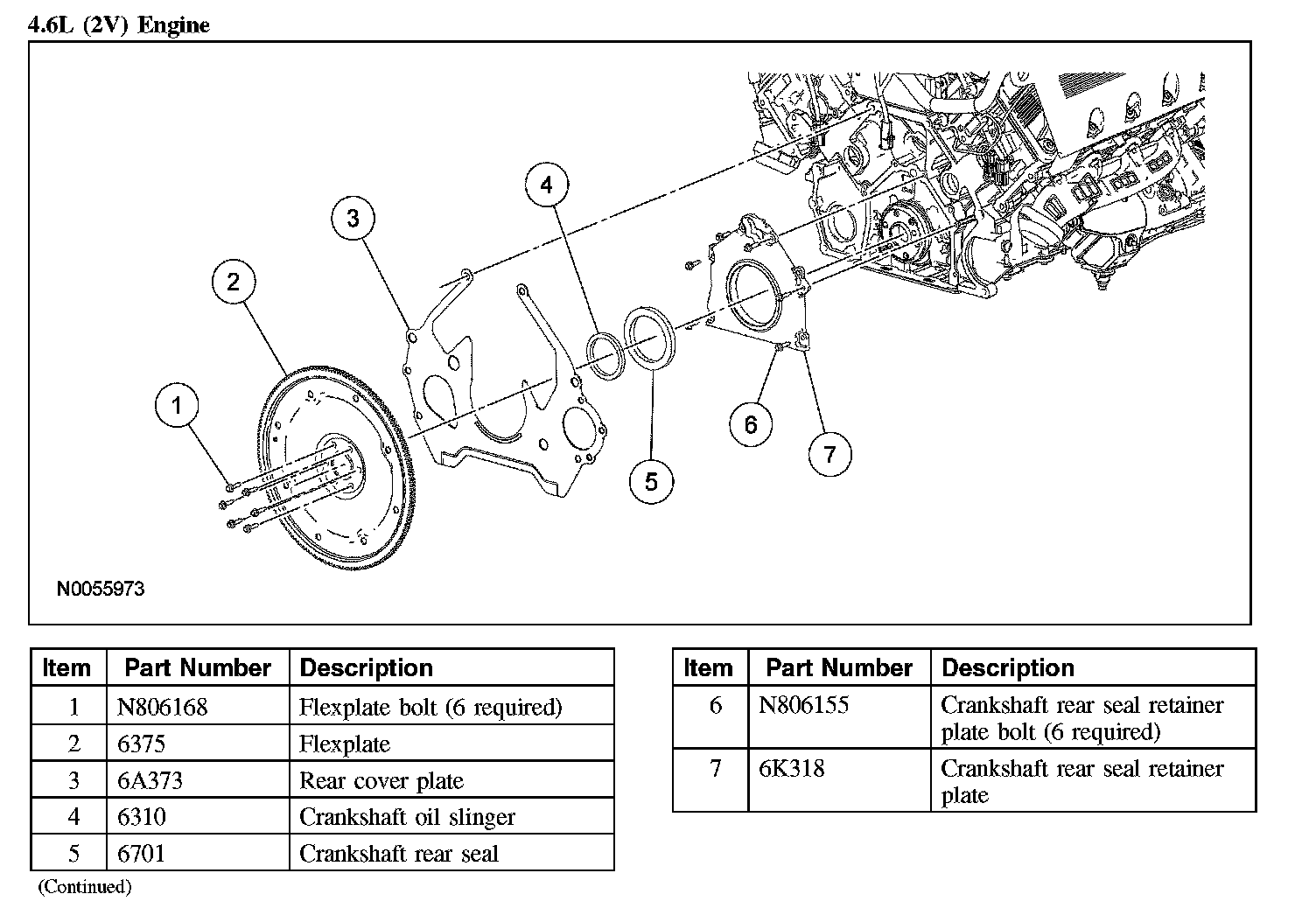

4.6L (2V) Engine:

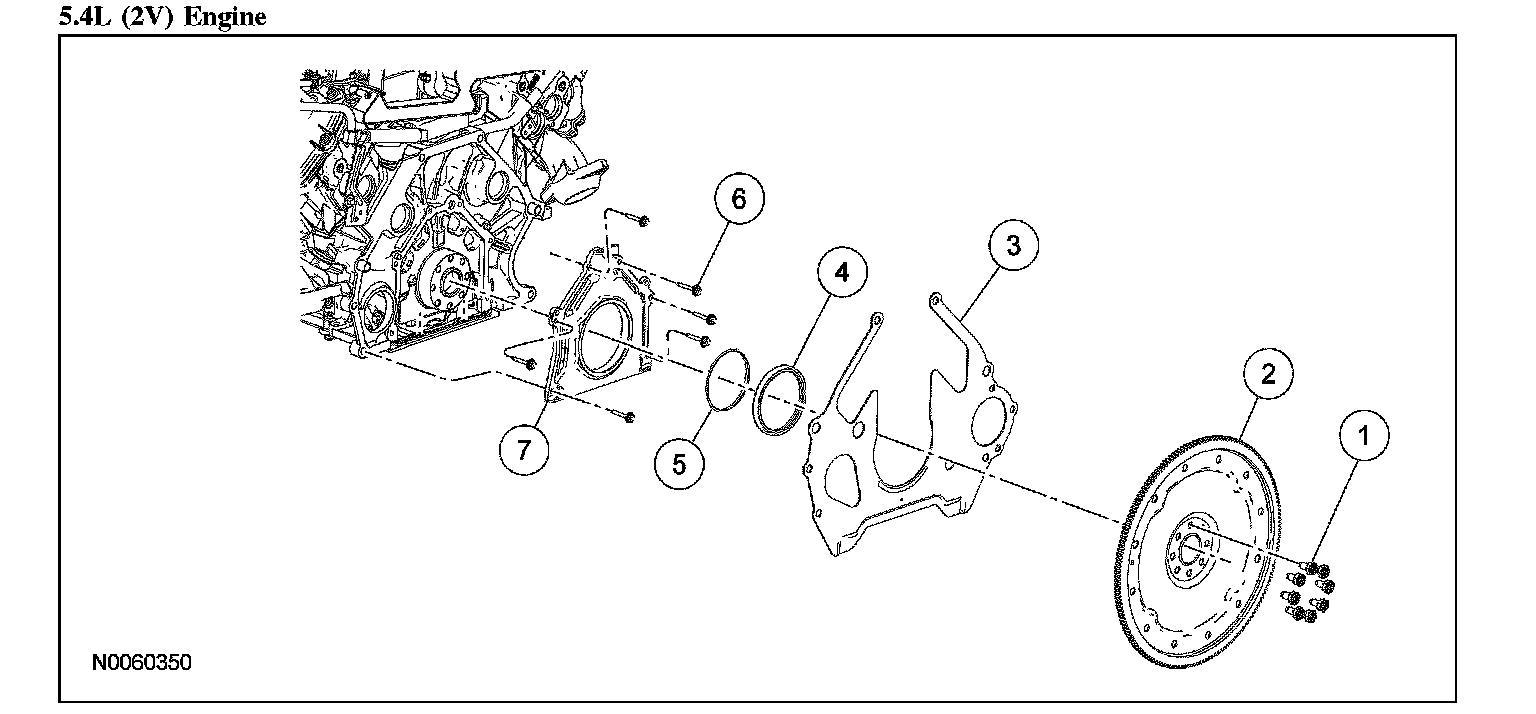

5.4L (2V) Engine (Part 1):

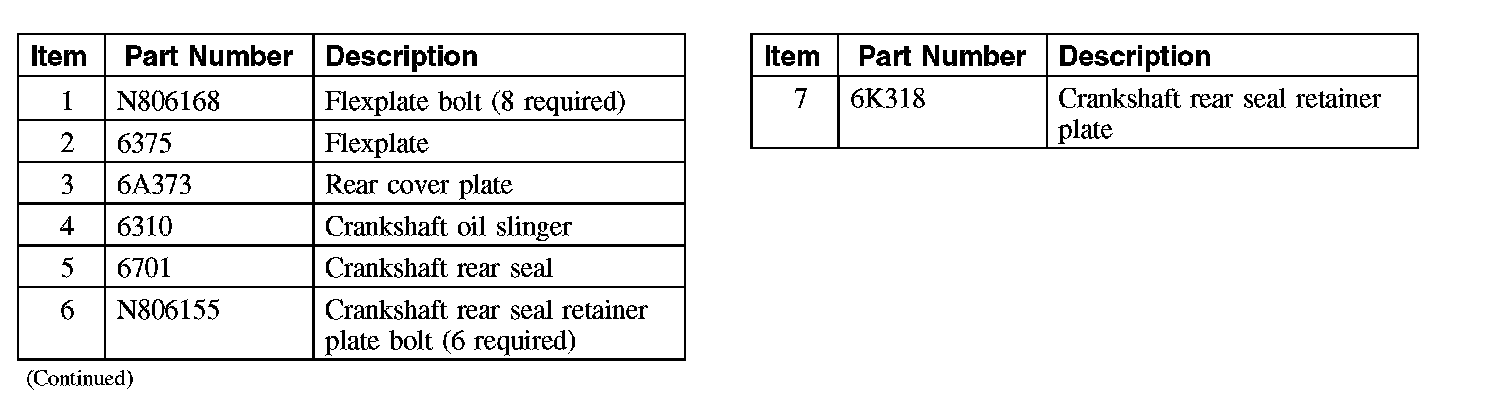

5.4L (2V) Engine (Part 2):
