Automatic Transmission/Transaxle

4R70W/4R75W Automatic Transmission

Sensor Resistance Readings

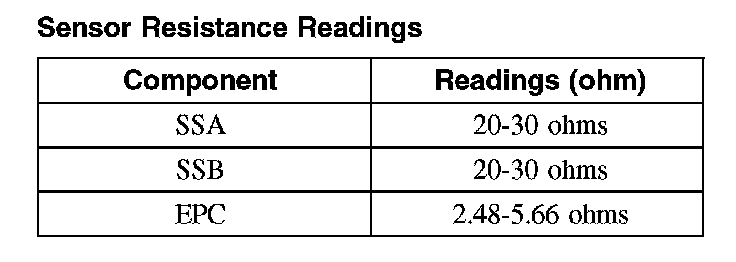

Sensor Resistance Readings (Part 1):

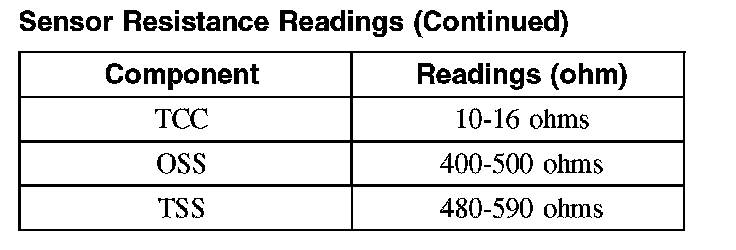

Sensor Resistance Readings (Part 2):
