General Specifications

Rear Drive Axle/Differential - Dana 60 and 70

General Specifications

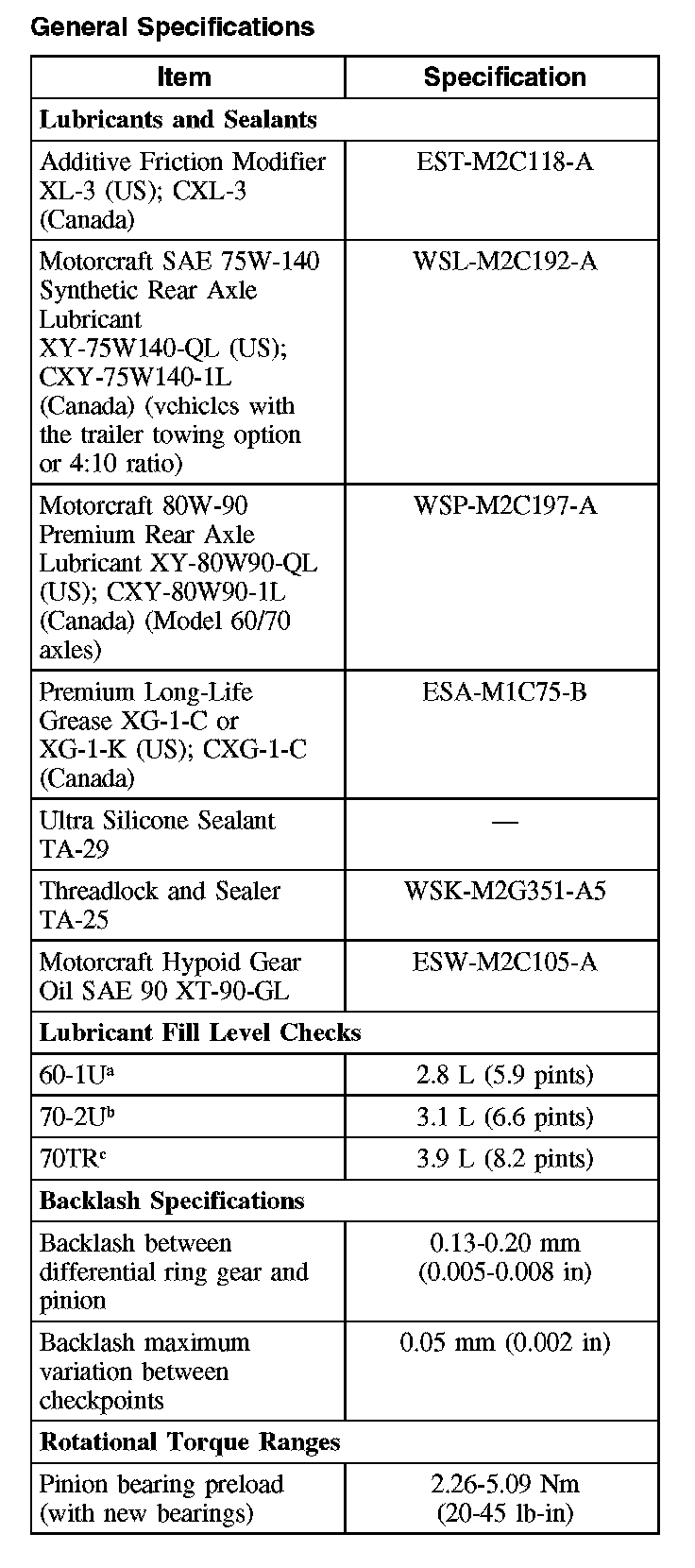

General Specifications (Part 1):

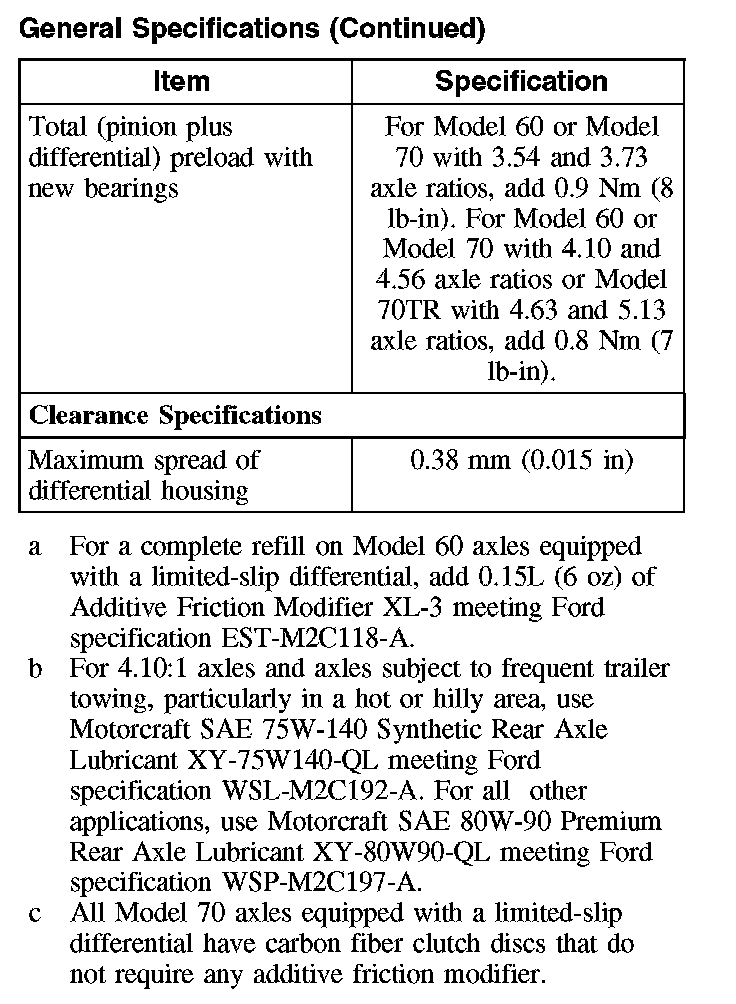

General Specifications (Part 2):
