Torque Specifications

Torque Specifications

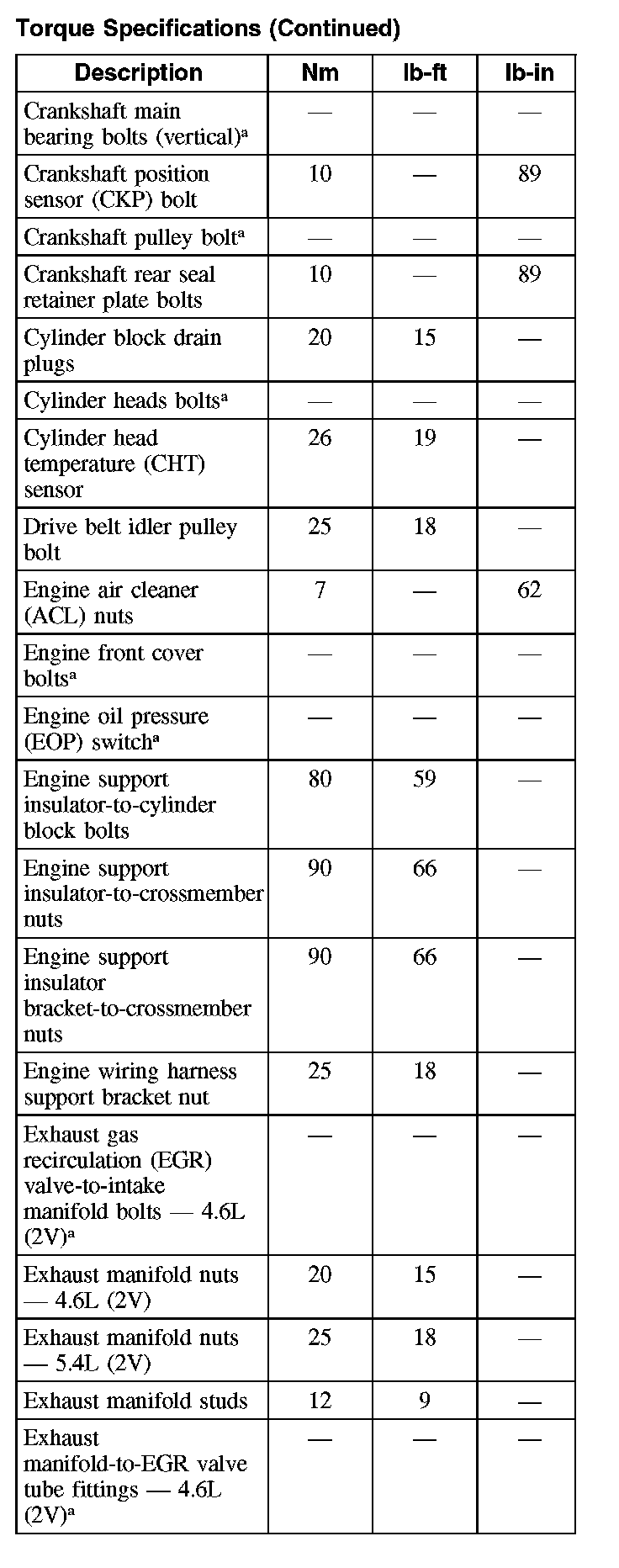

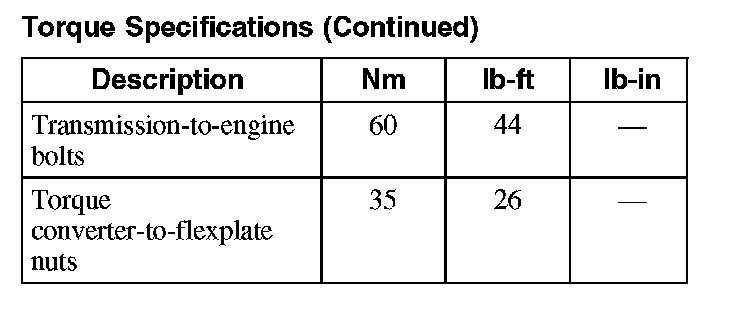

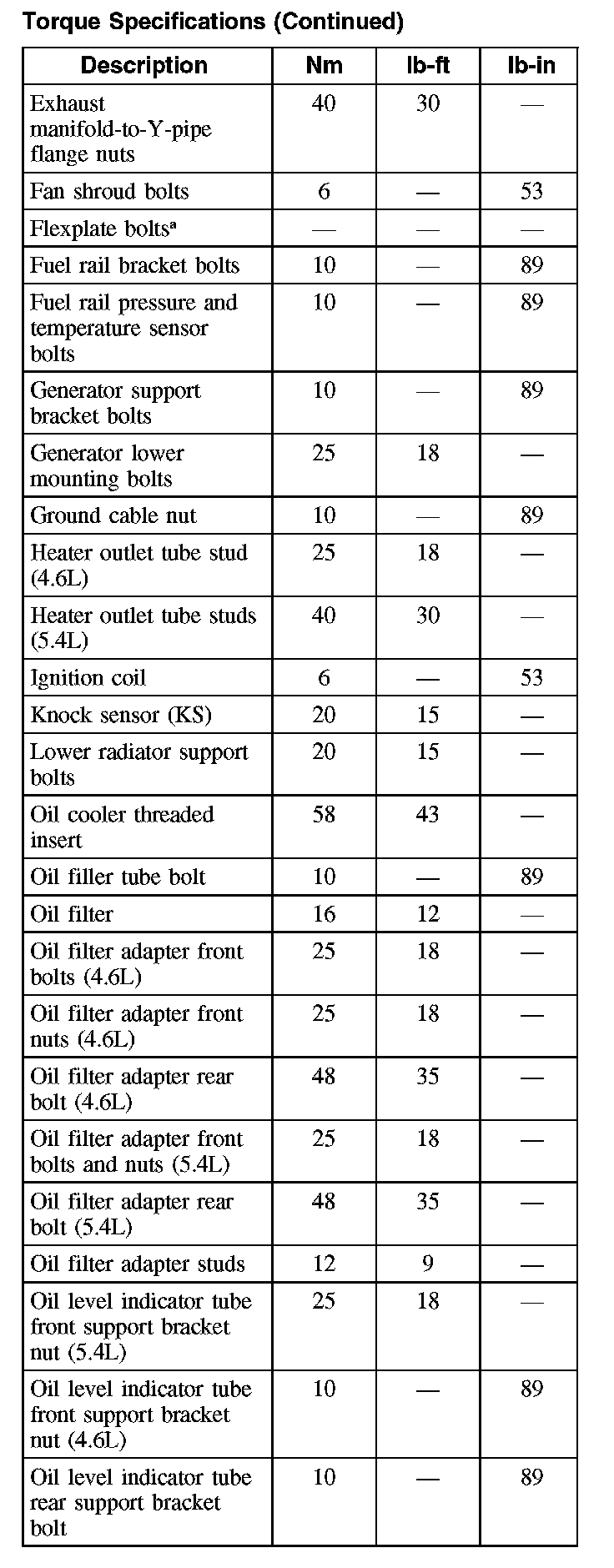

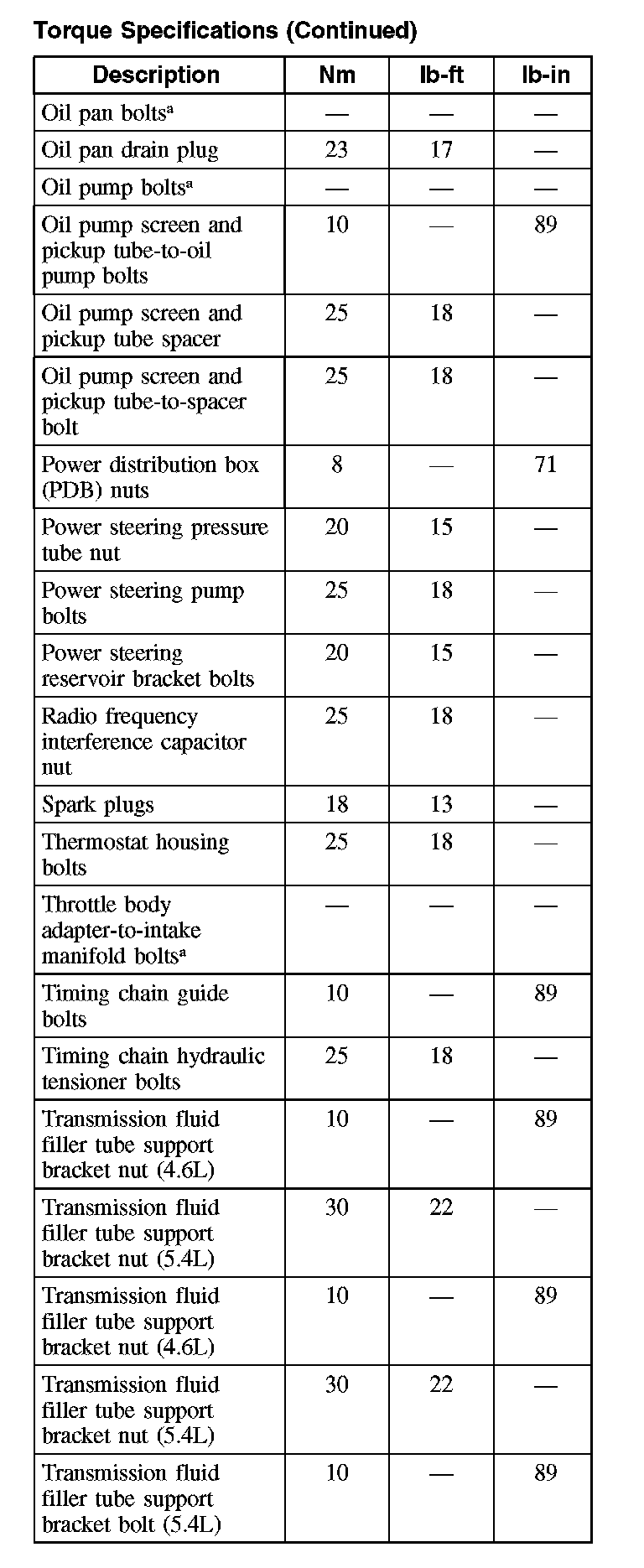

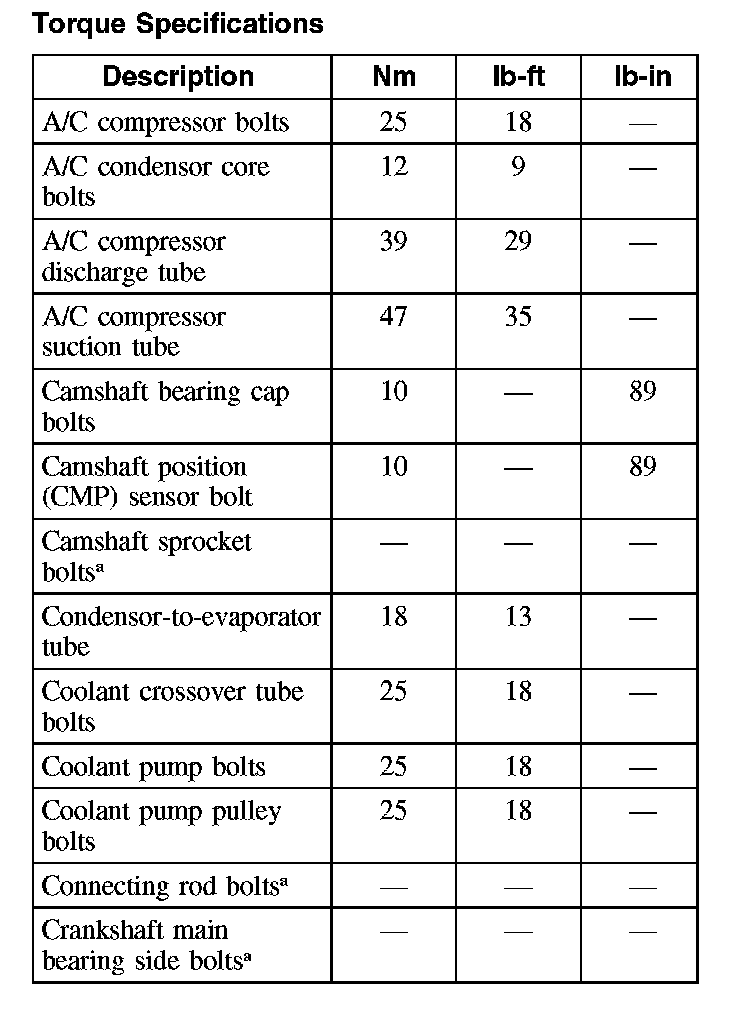

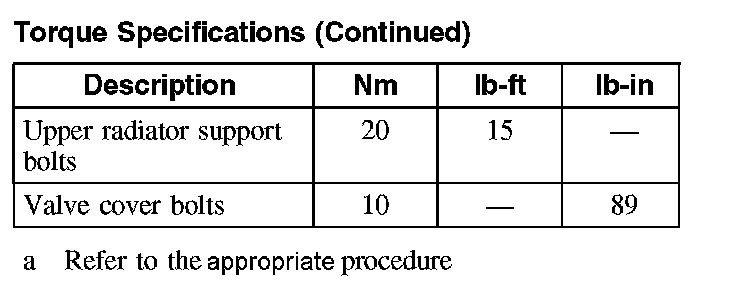

Torque Specifications (Part 1):

Torque Specifications (Part 2):

Torque Specifications (Part 3):

Torque Specifications (Part 4):

Torque Specifications (Part 5):

Torque Specifications (Part 6):

Intake Manifold Bolts

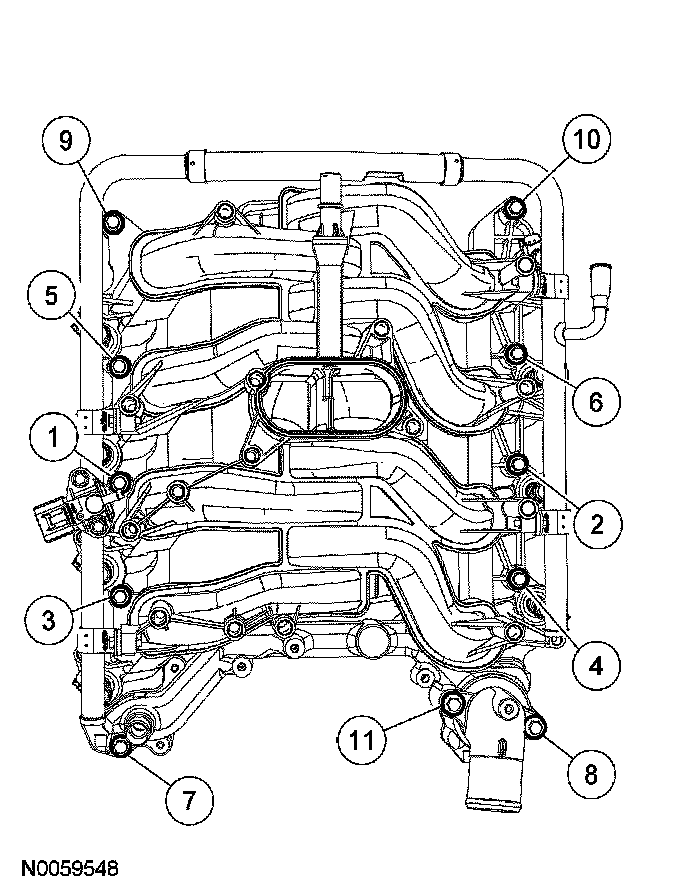

4.6L Engine






First pass 2 Nm (18 inch lbs).
Final pass 25 Nm (18 ft. lbs).

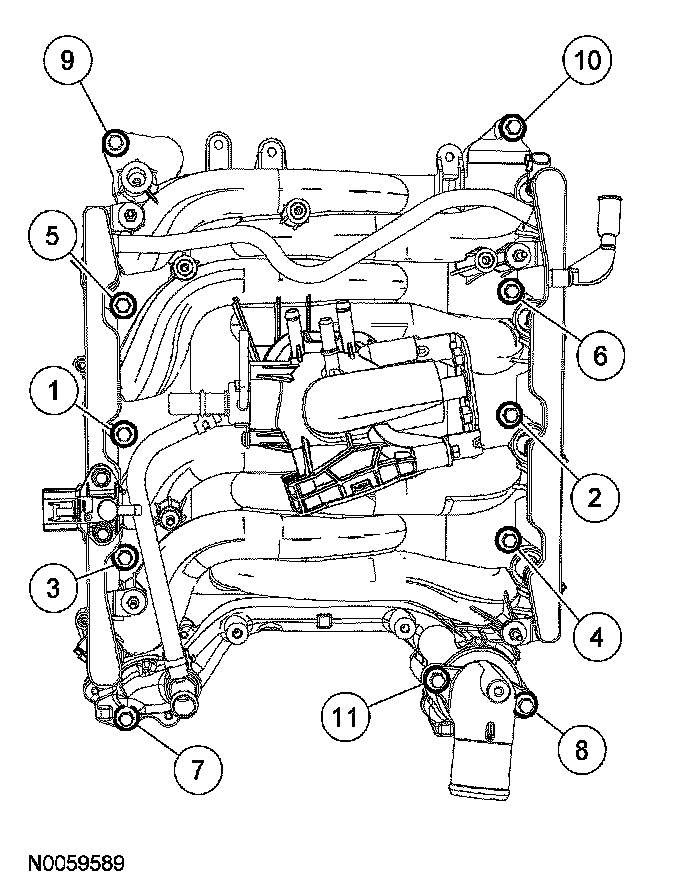

5.4L Engine






First pass 2 Nm (18 inch lbs).
Final pass 25 Nm (18 ft. lbs).
