Front Bumper: Specifications

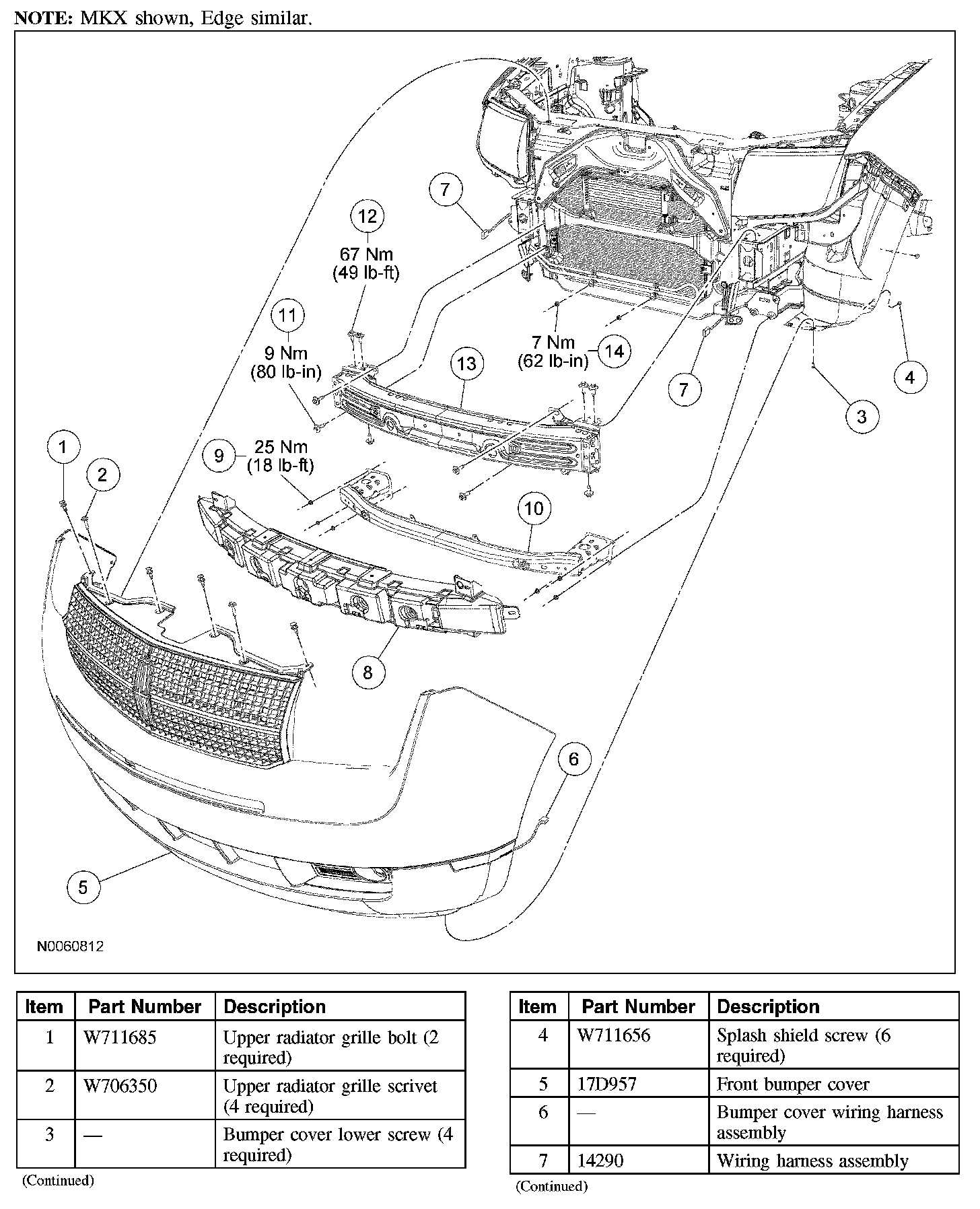

BUMPER - EXPLODED VIEW, FRONT

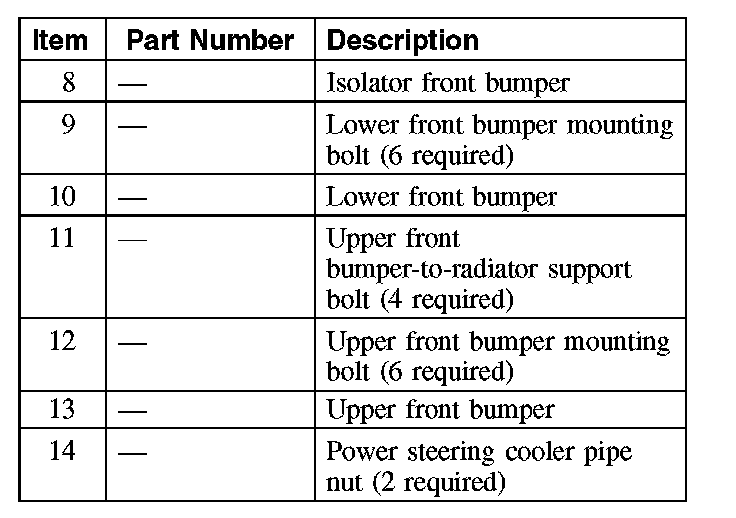

Part 1:






Part 2:






Removal and Installation
1. For additional information, refer to the procedures.
