Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-12 (Left Front)

April 5, 2026: LEMON Manuals is launched! Read the announcement.

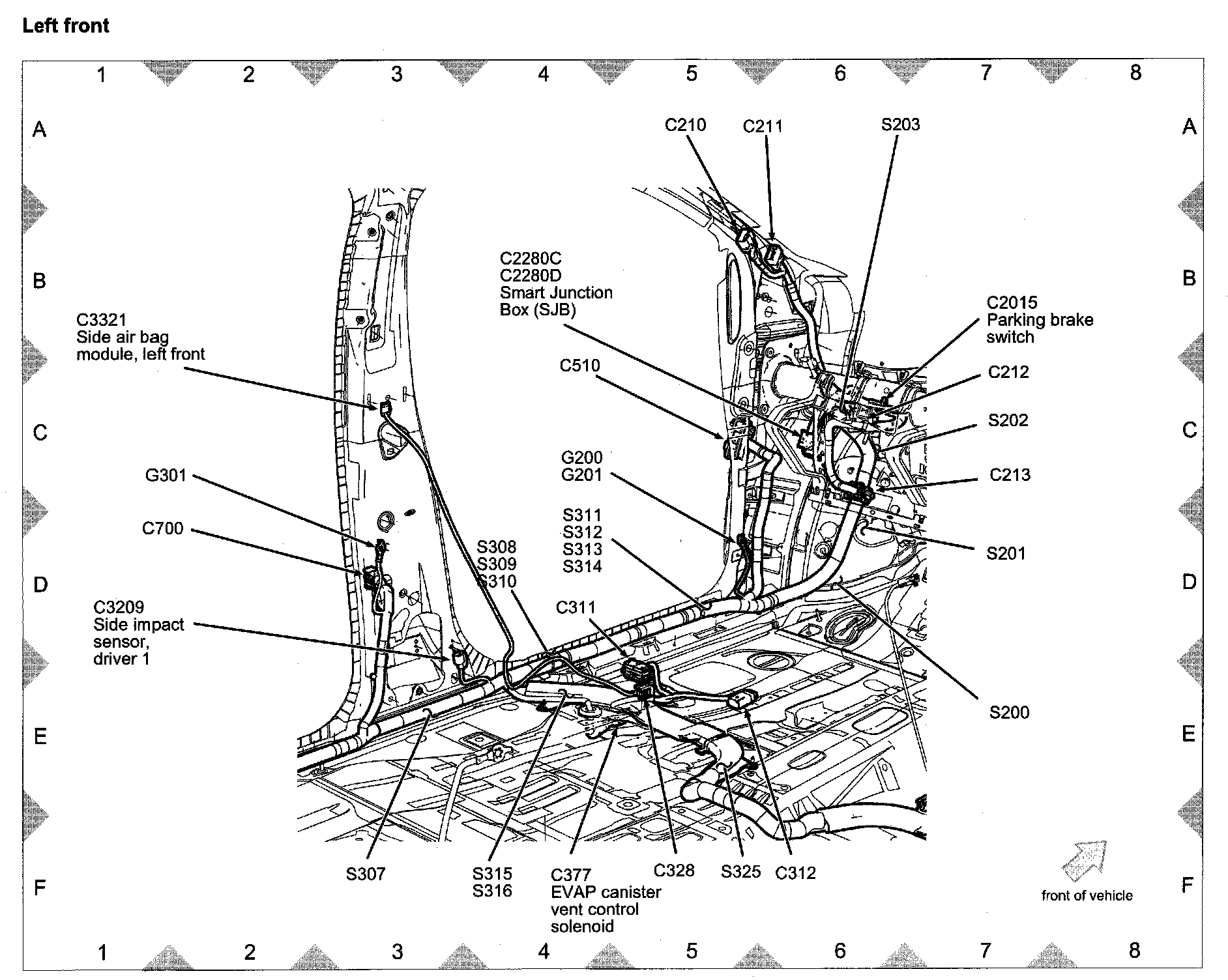

View 151-12 (Left Front)

View 151-12 (Left Front):
