Seat Occupant Sensor
>>
Occupant Classification Sensor (OCS) 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

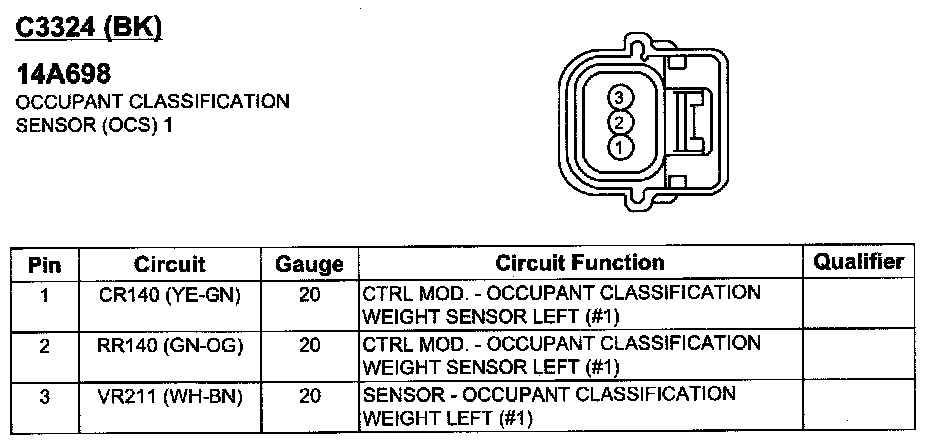

Occupant Classification Sensor (OCS) 1
C3324:
