System Diagram

INTERIOR TRIM - EXPLODED VIEW

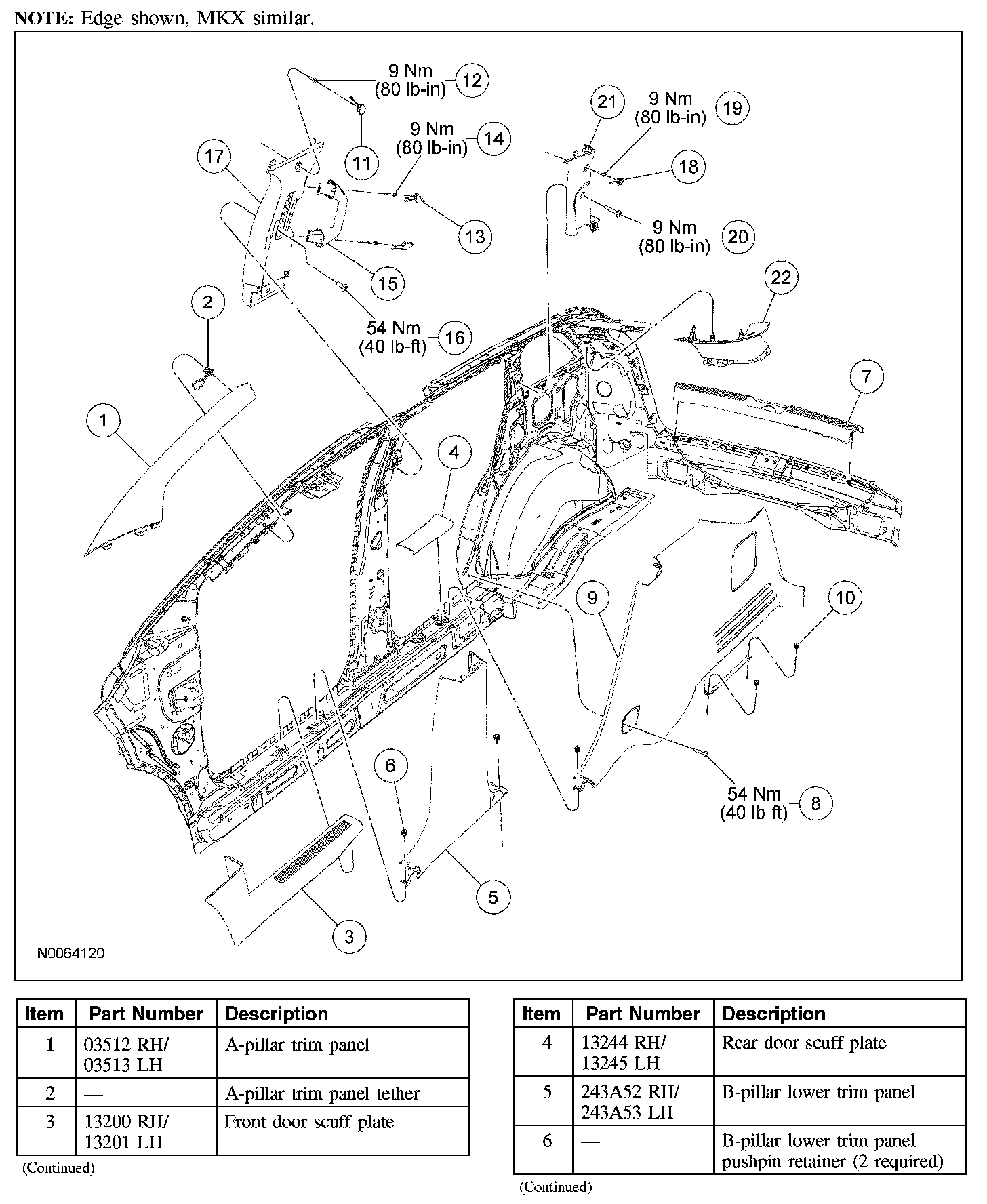

Part 1:

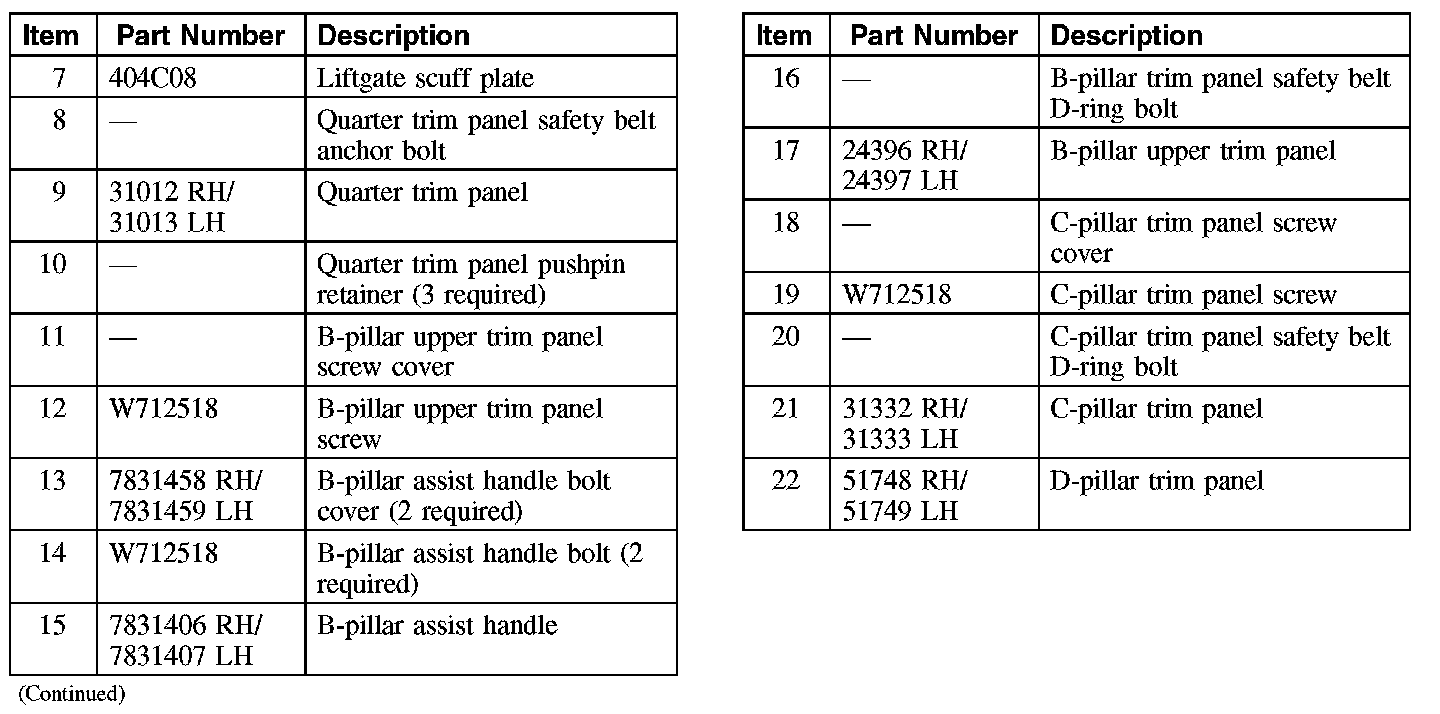

Part 2:






Removal and Installation
1. For additional information, refer to the procedures.
