Tests DF: Vehicle Speed Circuit (VSC) Check

PINPOINT TEST DF: VEHICLE SPEED CIRCUIT (VSC) CHECK

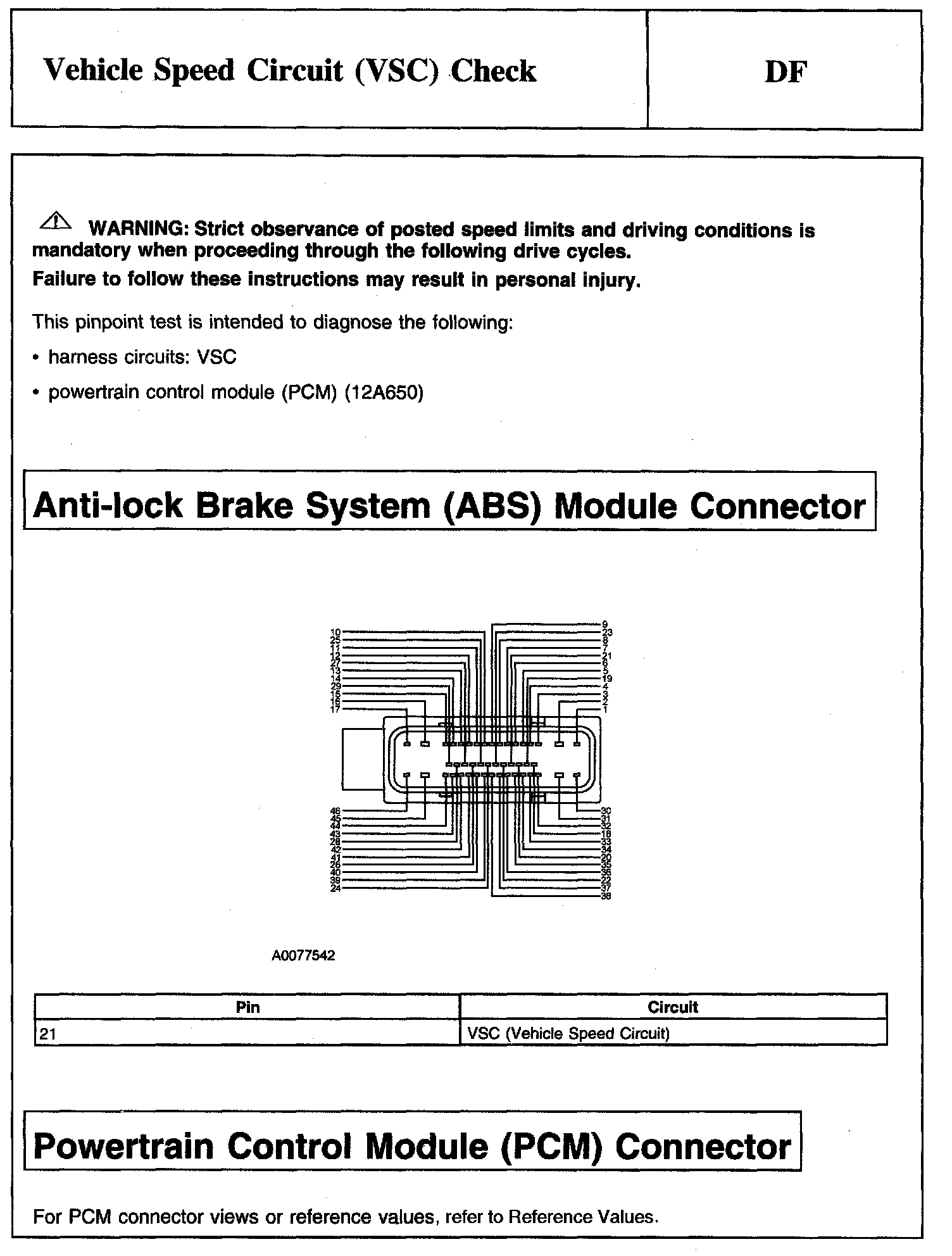

Warning, Anti-lock Brake System (ABS) Module Connector And Powertrain Control Module (PCM) Connector:

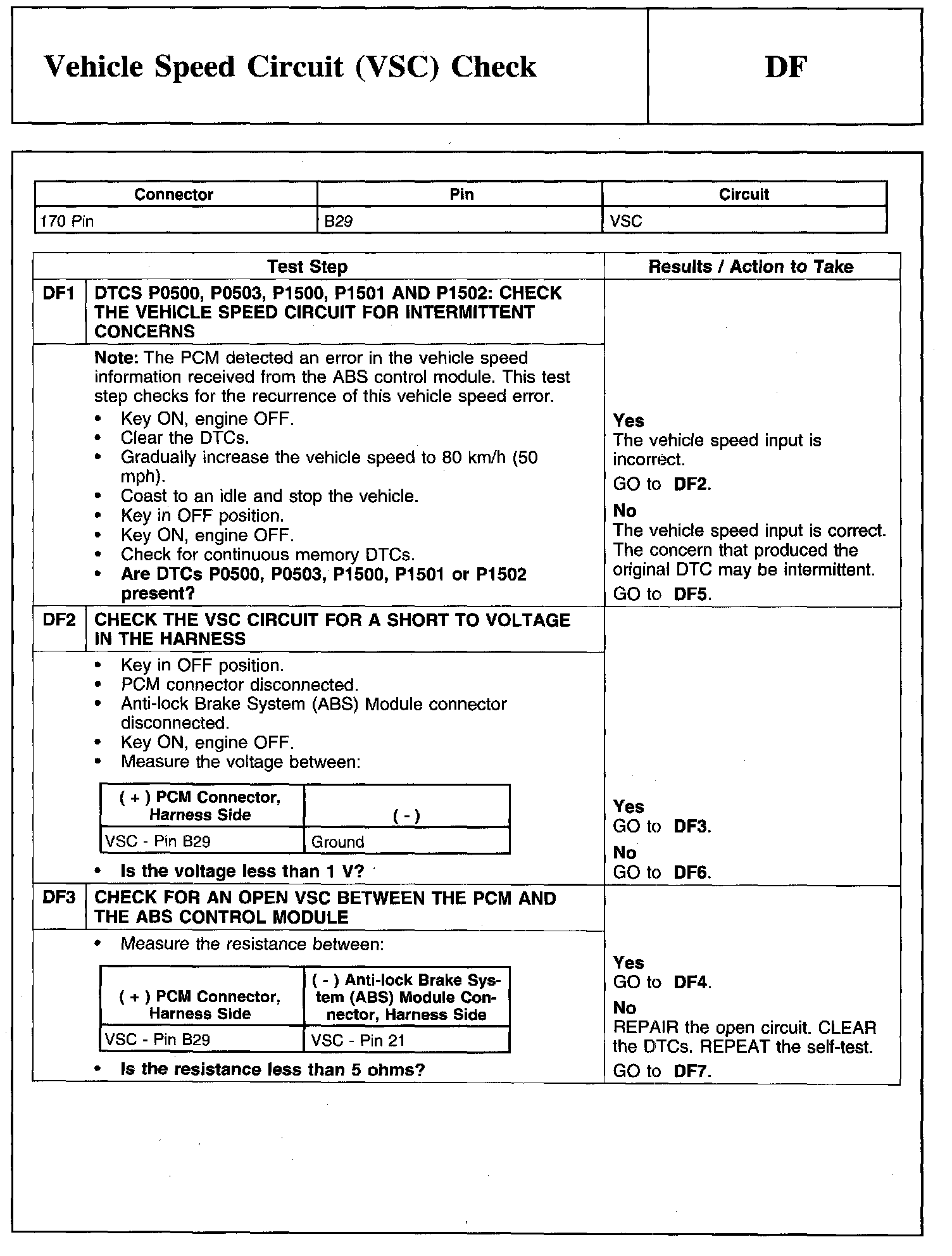

DF1-DF3:

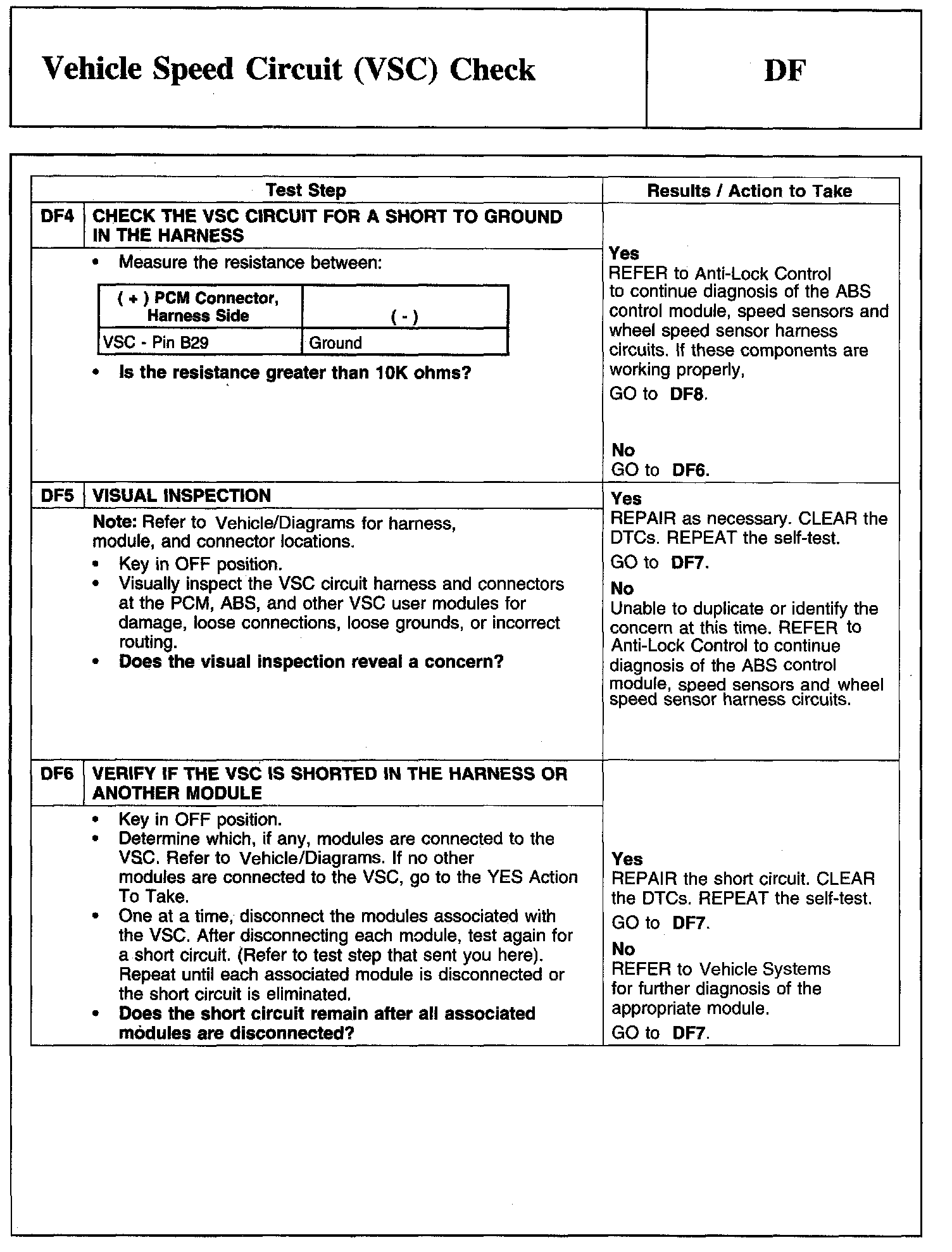

DF4-DF6:

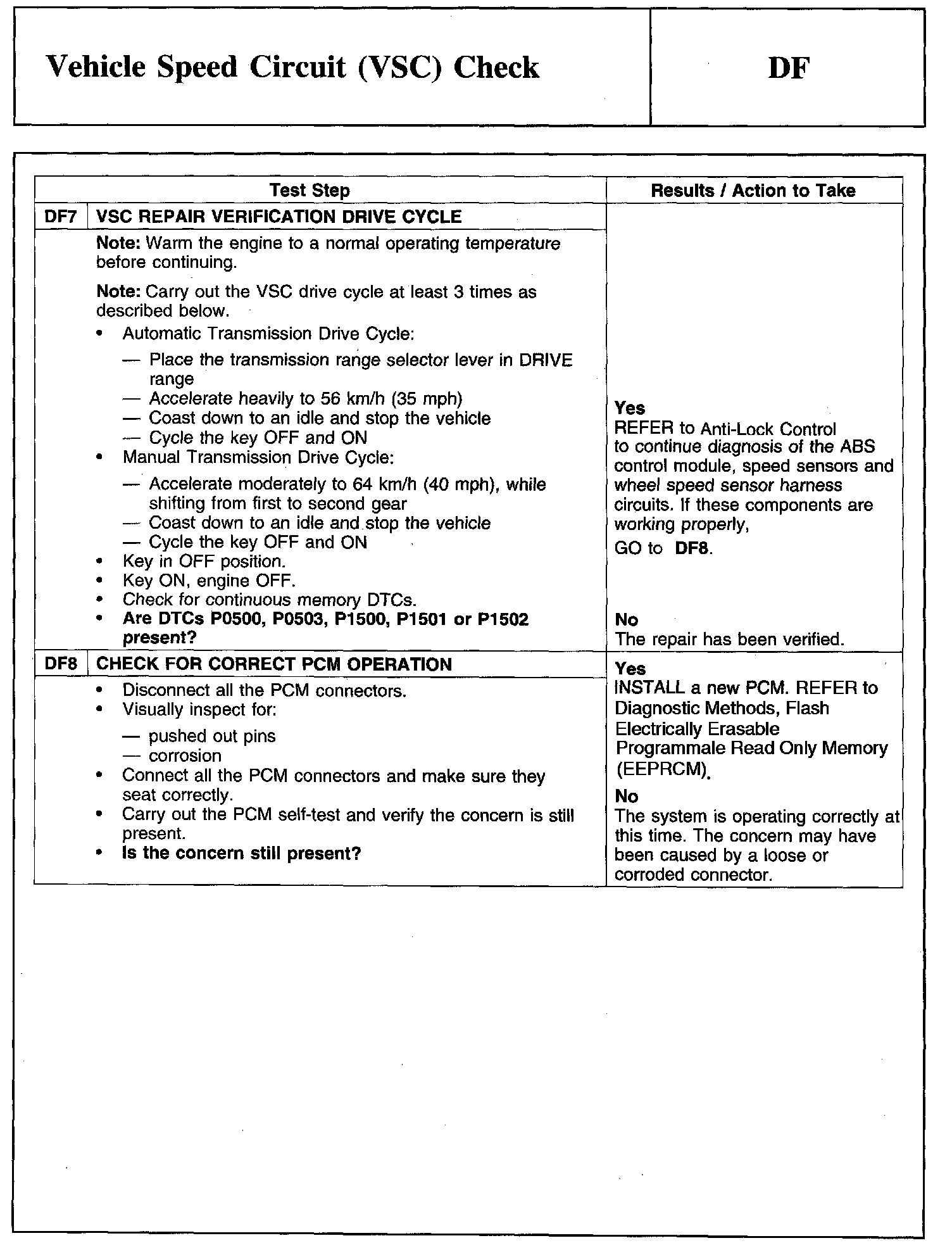

DF7-DF8:
