Tests DG: Knock Sensor

PINPOINT TEST DG: KNOCK SENSOR

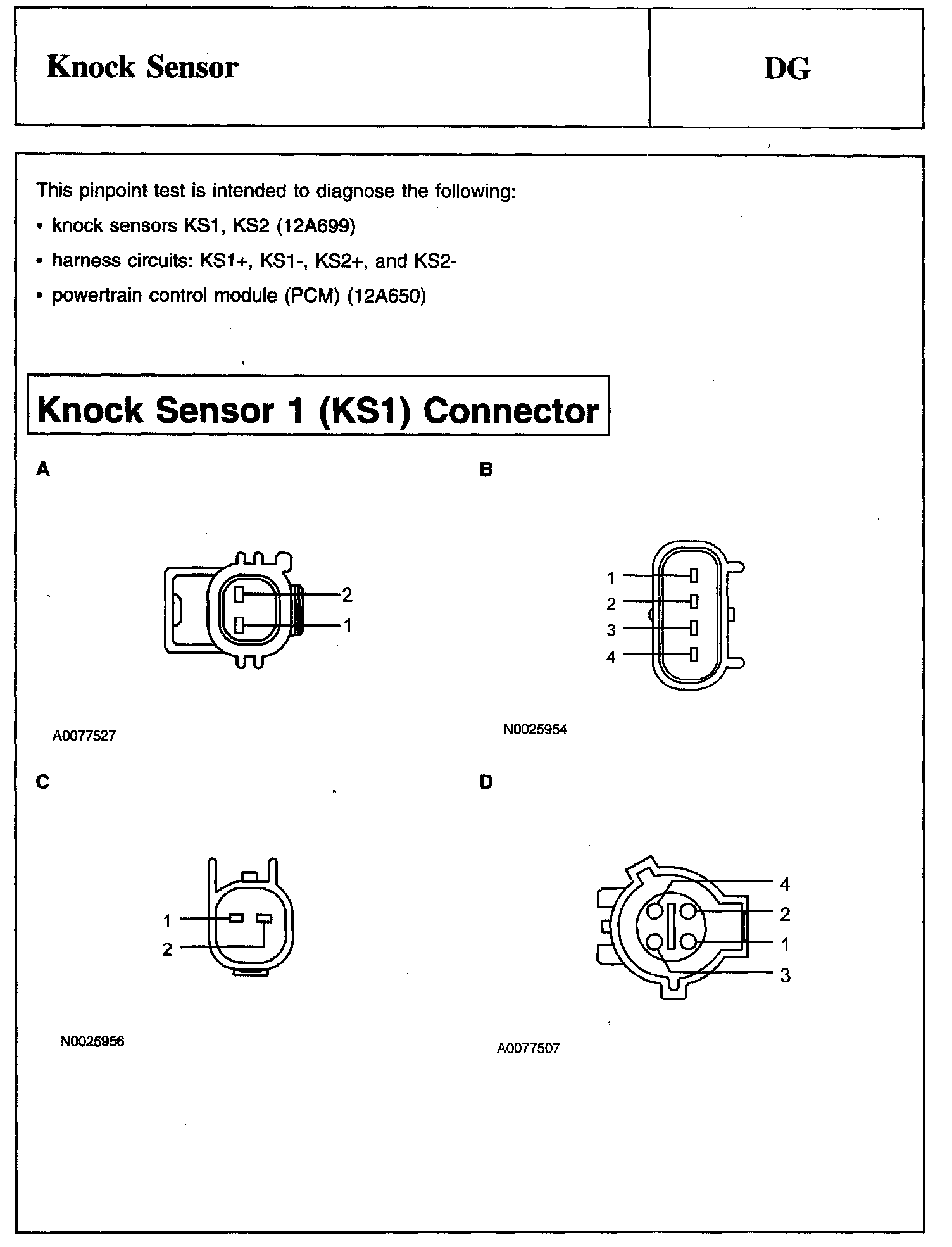

Knock Sensor 1 (KS1) Connector:

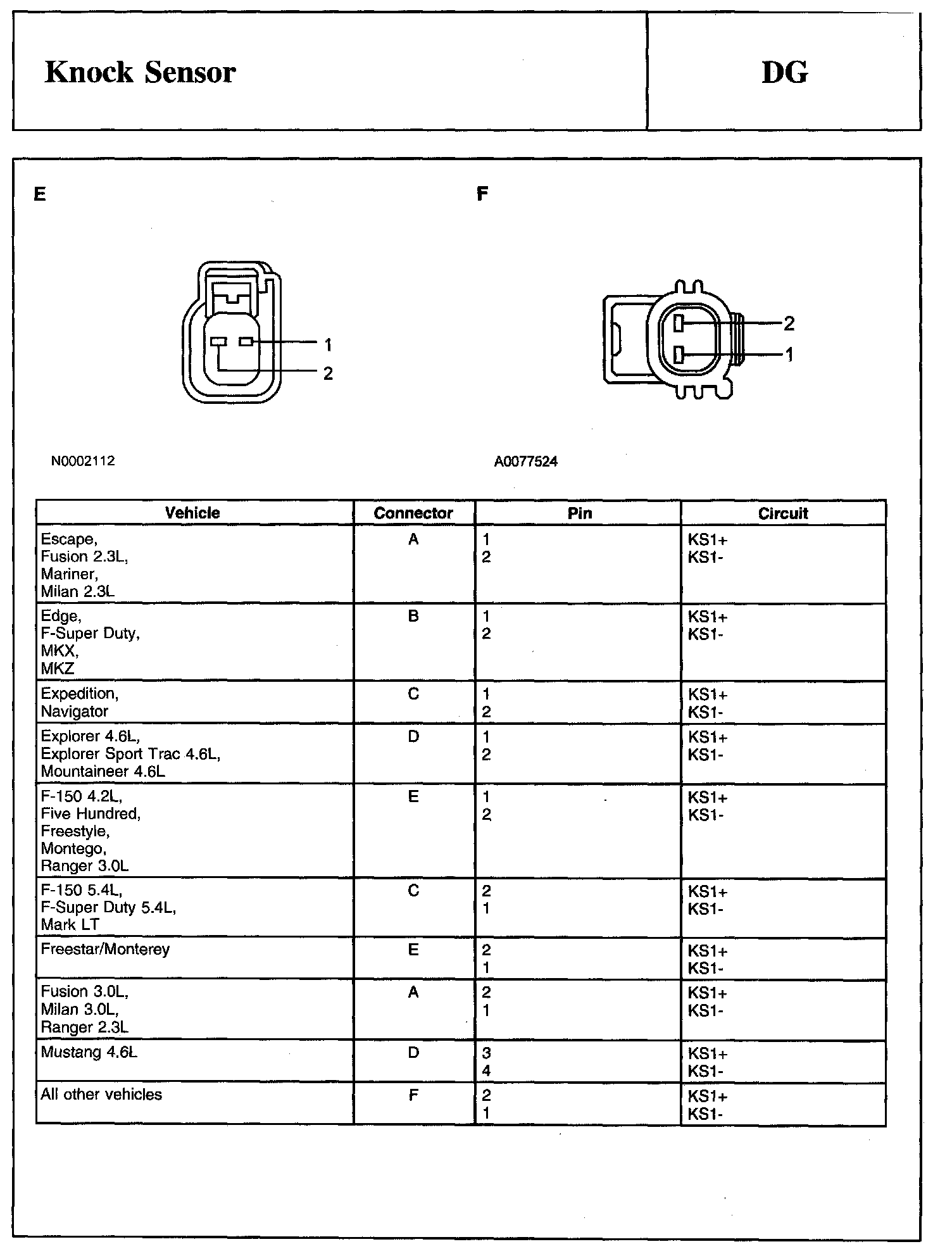

Knock Sensor 1 (KS1) Connector Continued:

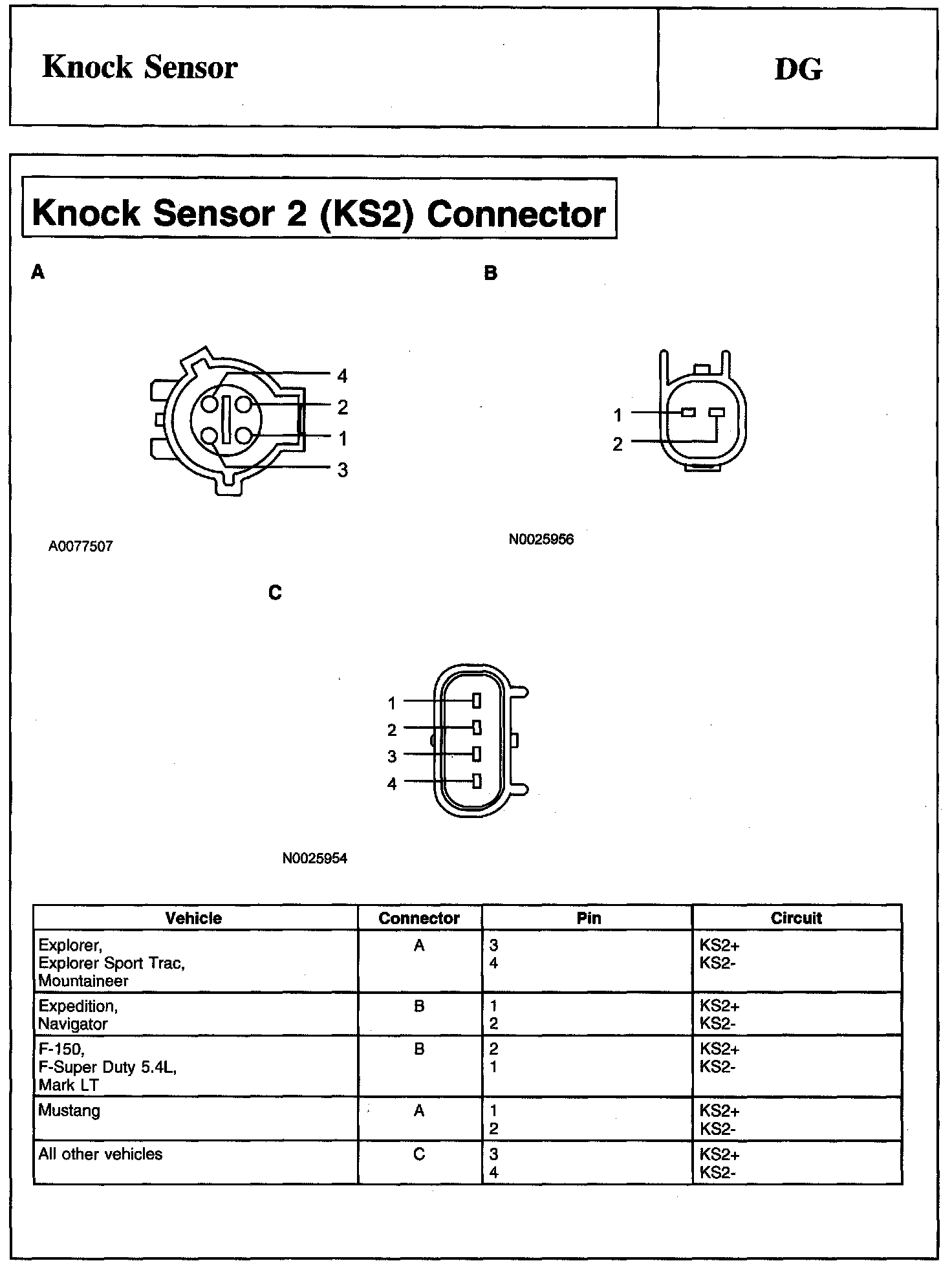

Knock Sensor 2 (KS2) Connector:

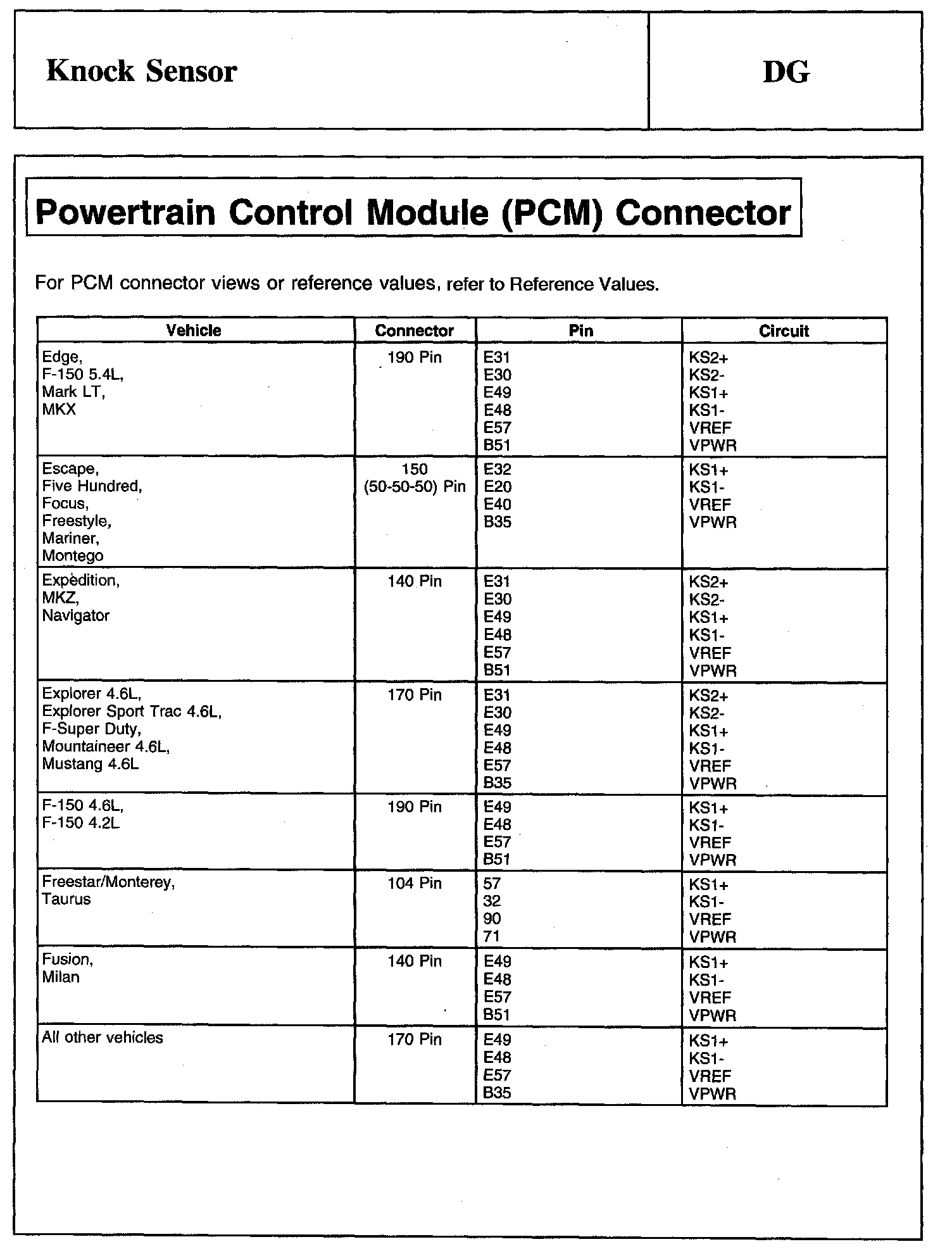

Powertrain Control Module (PCM) Connector:

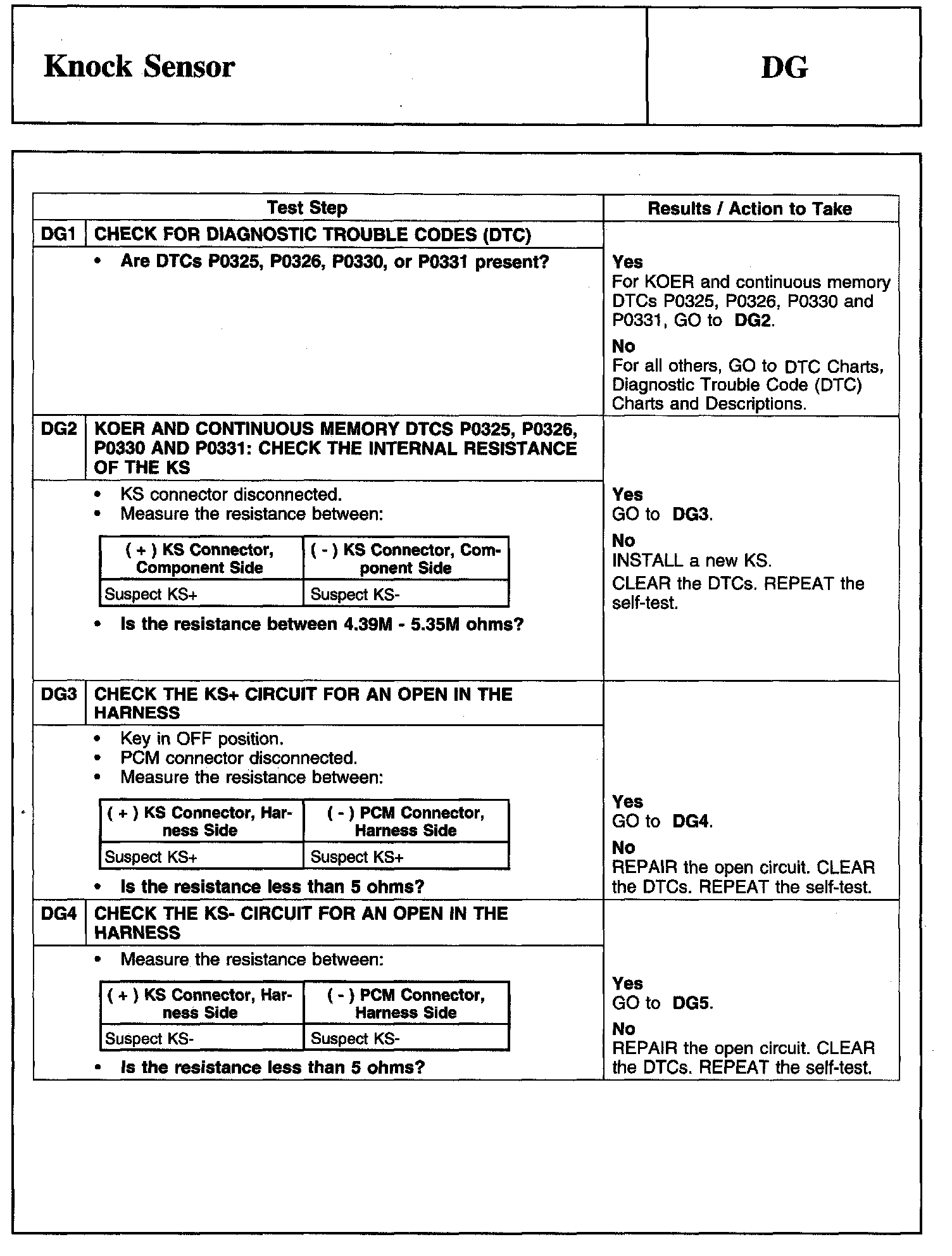

DG1-DG4:

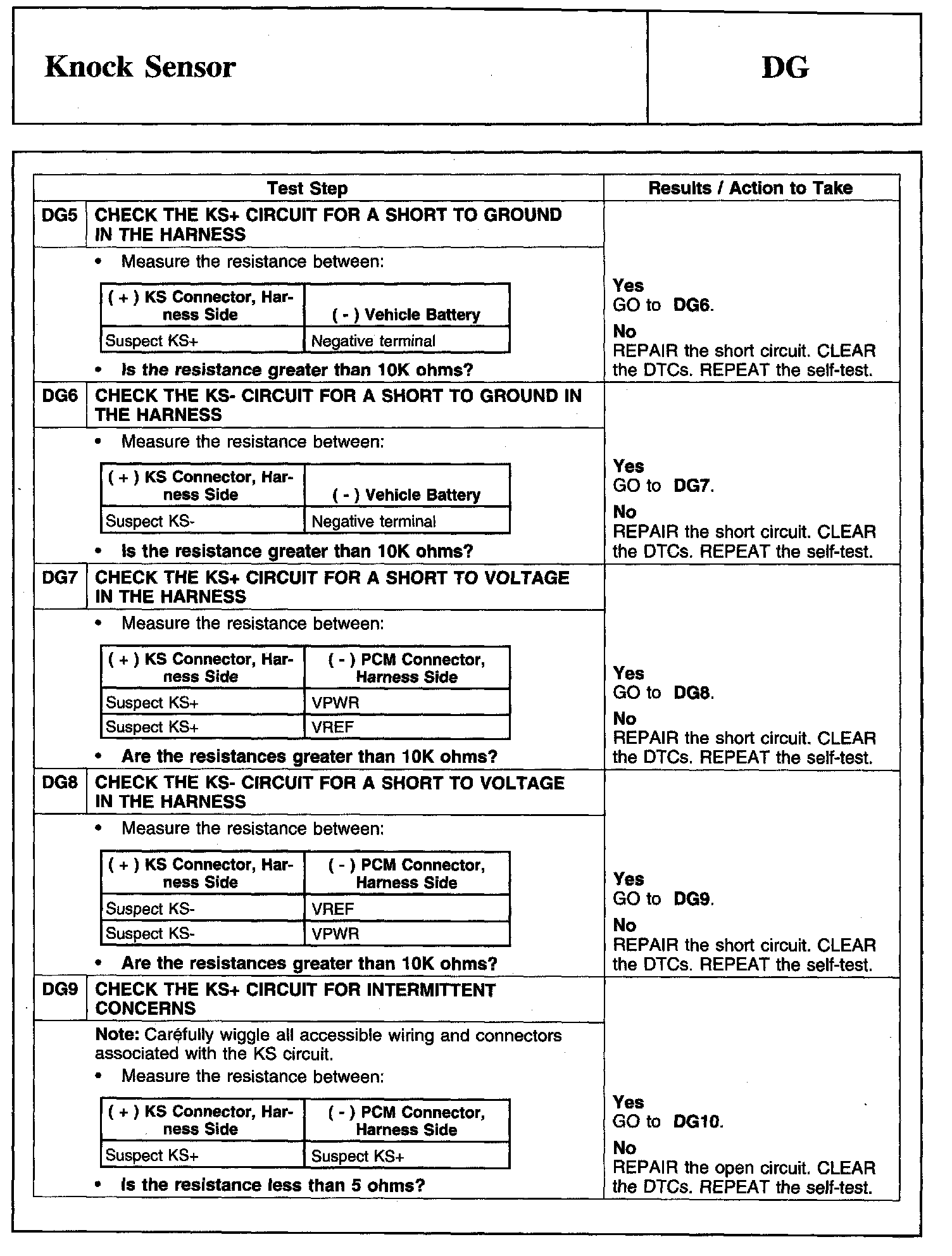

DG5-DG9:

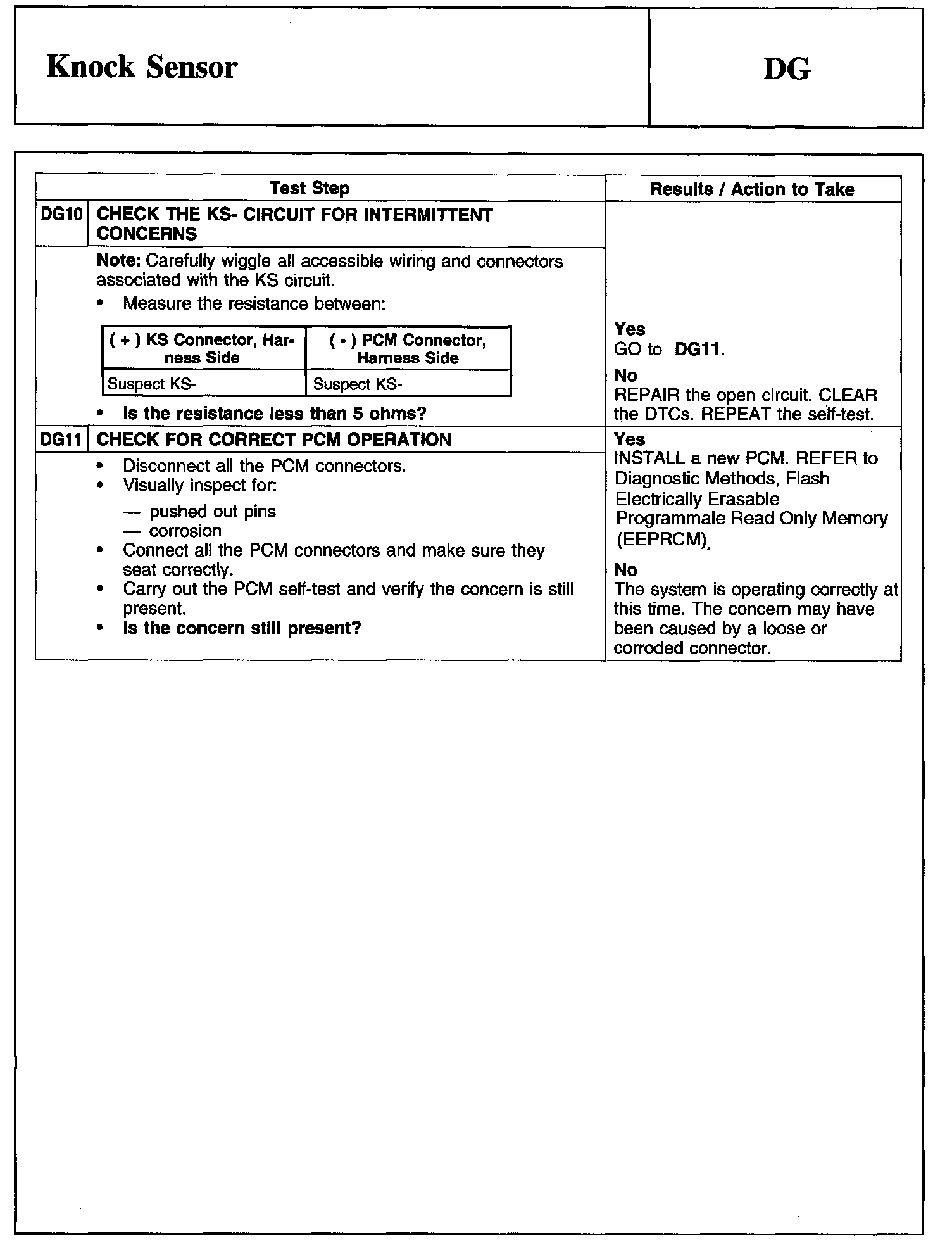

DG10-DG11:
