Tests DK: Accelerator Pedal Position (APP) Sensor

PINPOINT TEST DK: ACCELERATOR PEDAL POSITION (APP) SENSOR

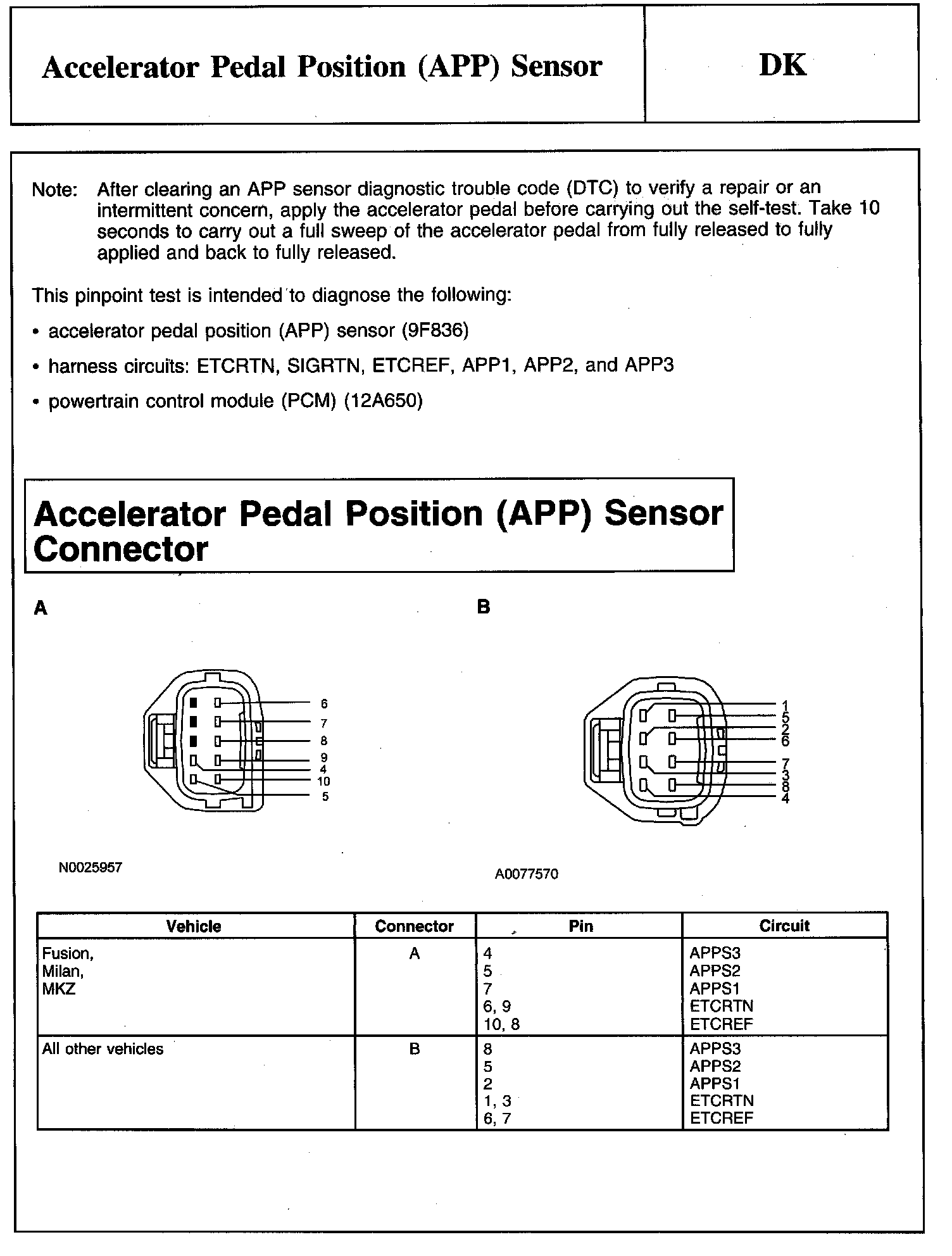

Accelerator Pedal Position (APP) Sensor Connector:

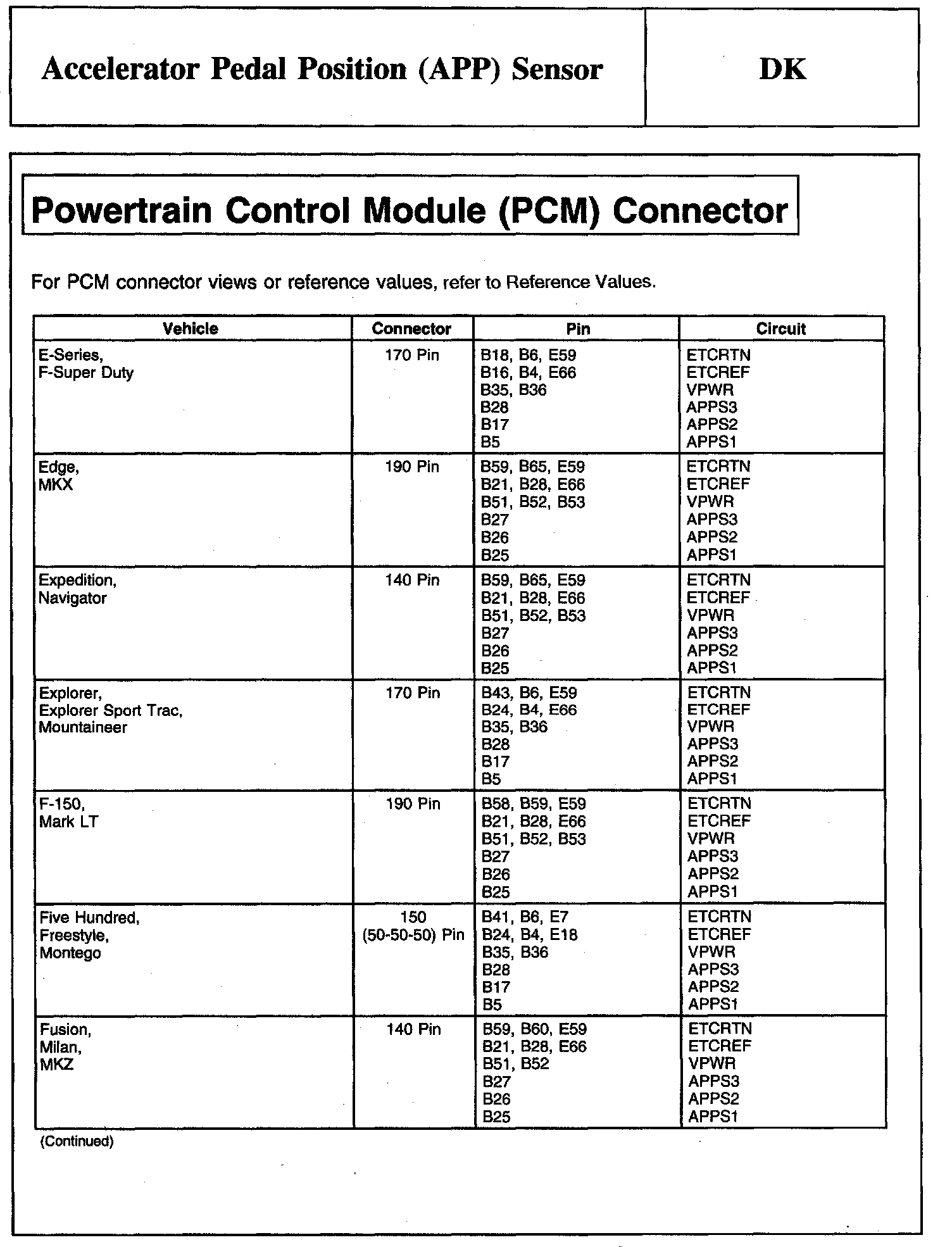

Powertrain Control Module (PCM) Connector:

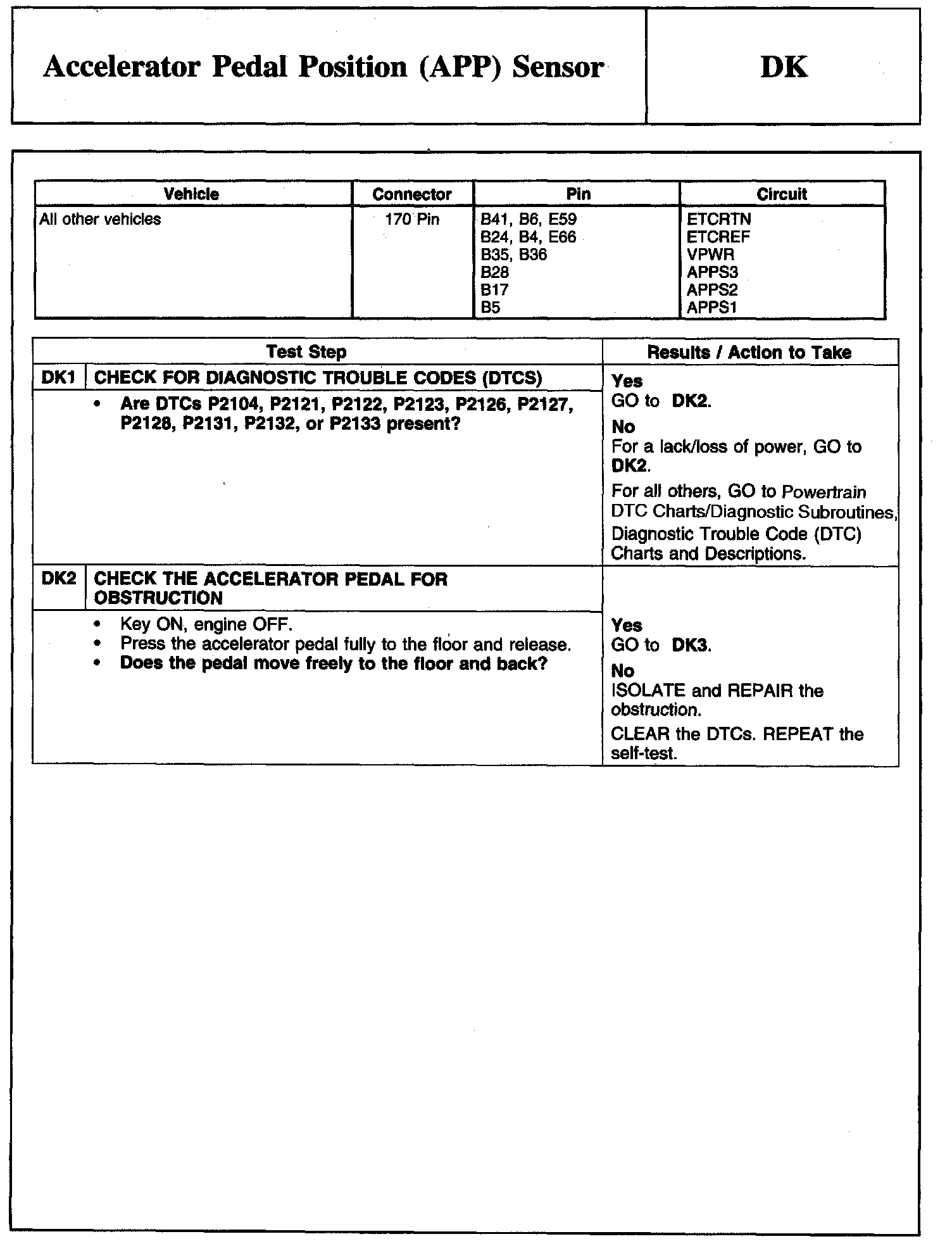

DK1-DK2:

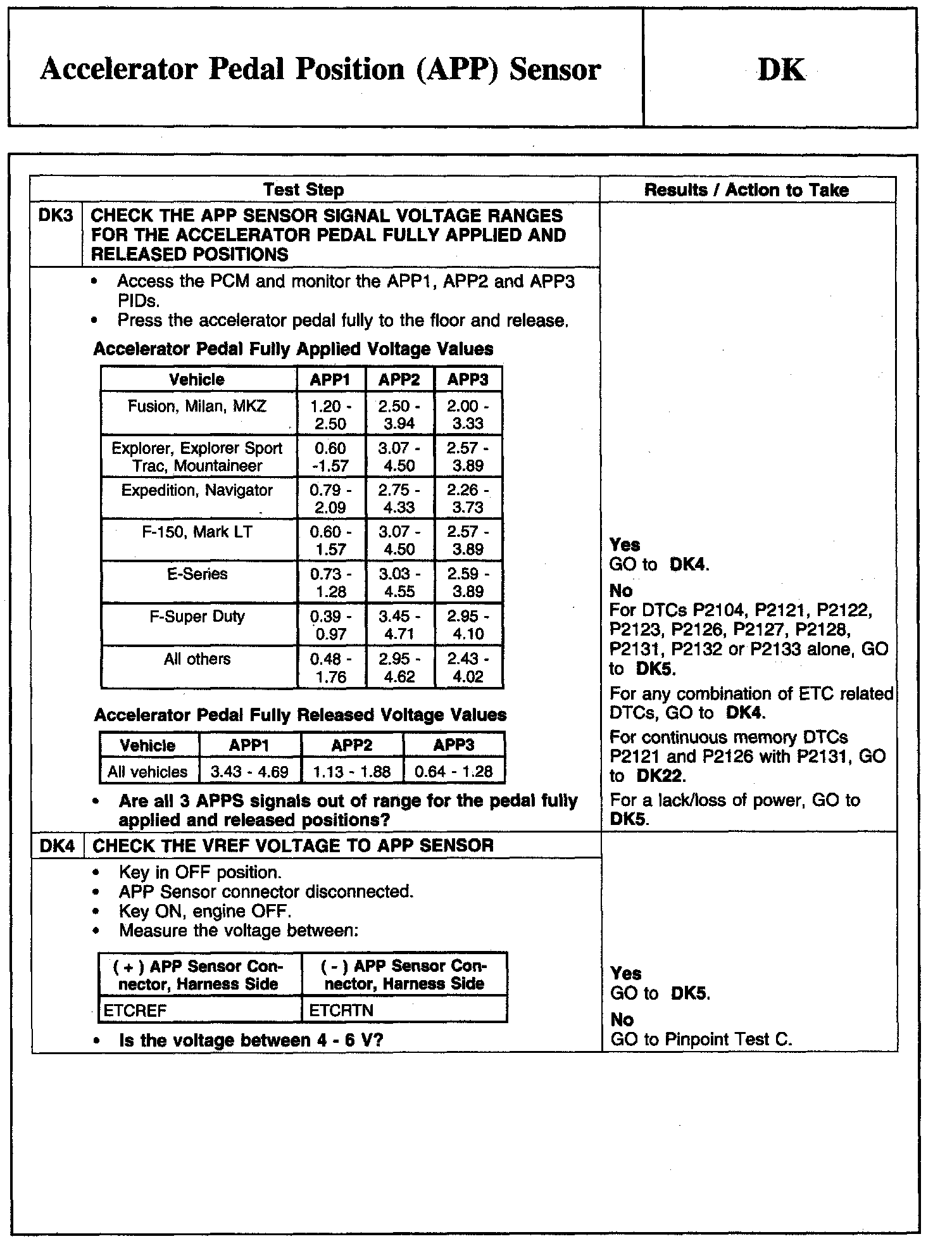

DK3-DK4:

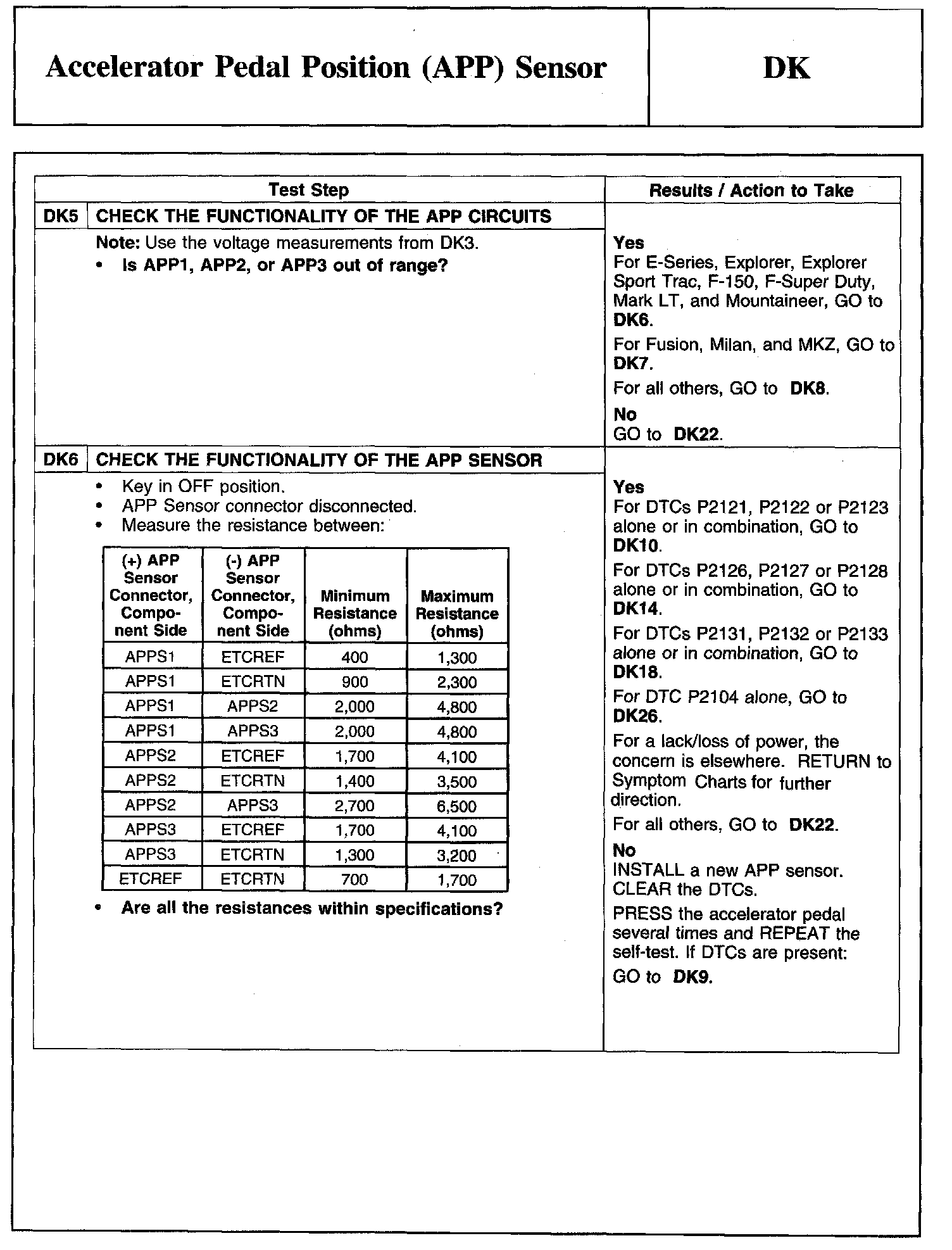

DK5-DK6:

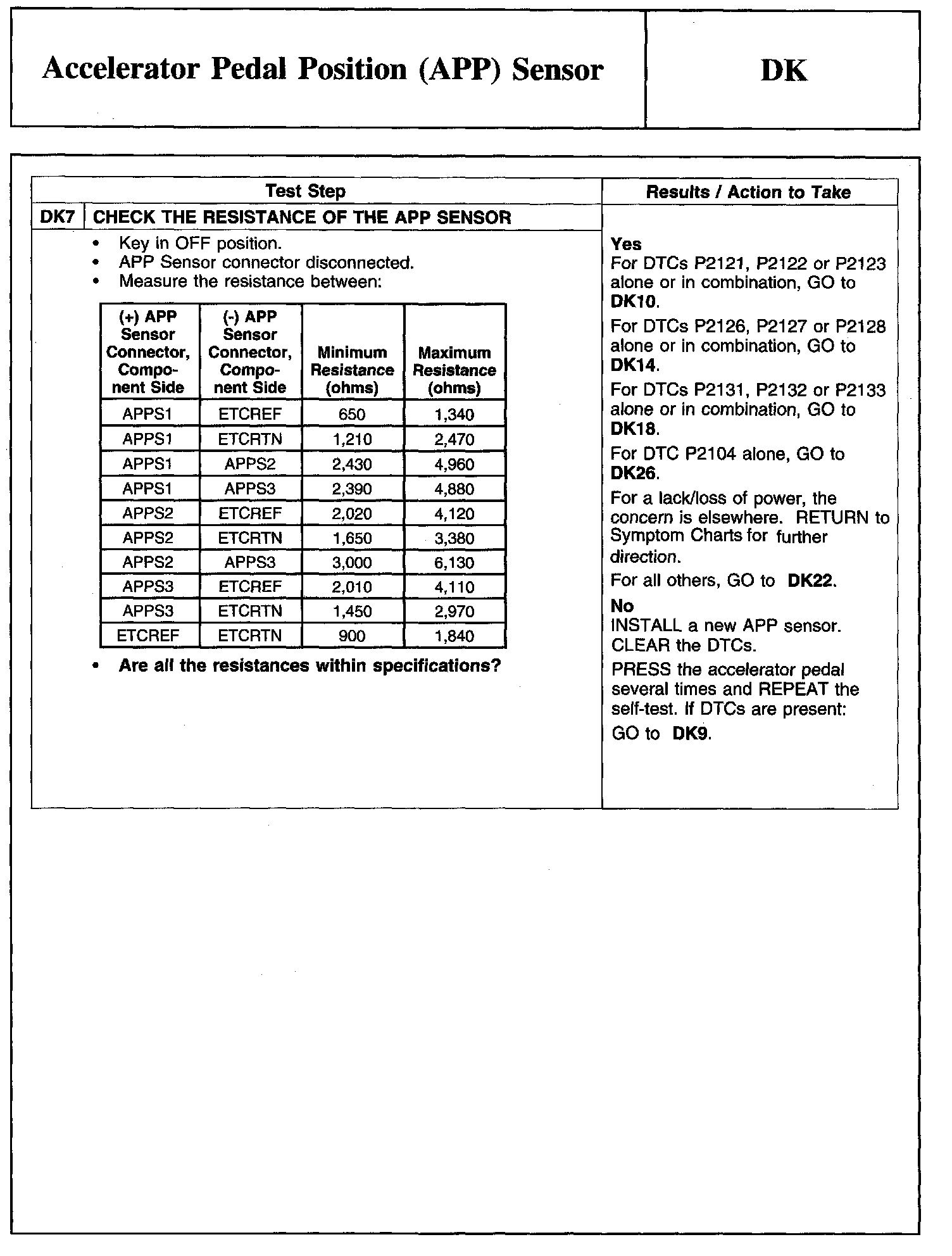

DK7:

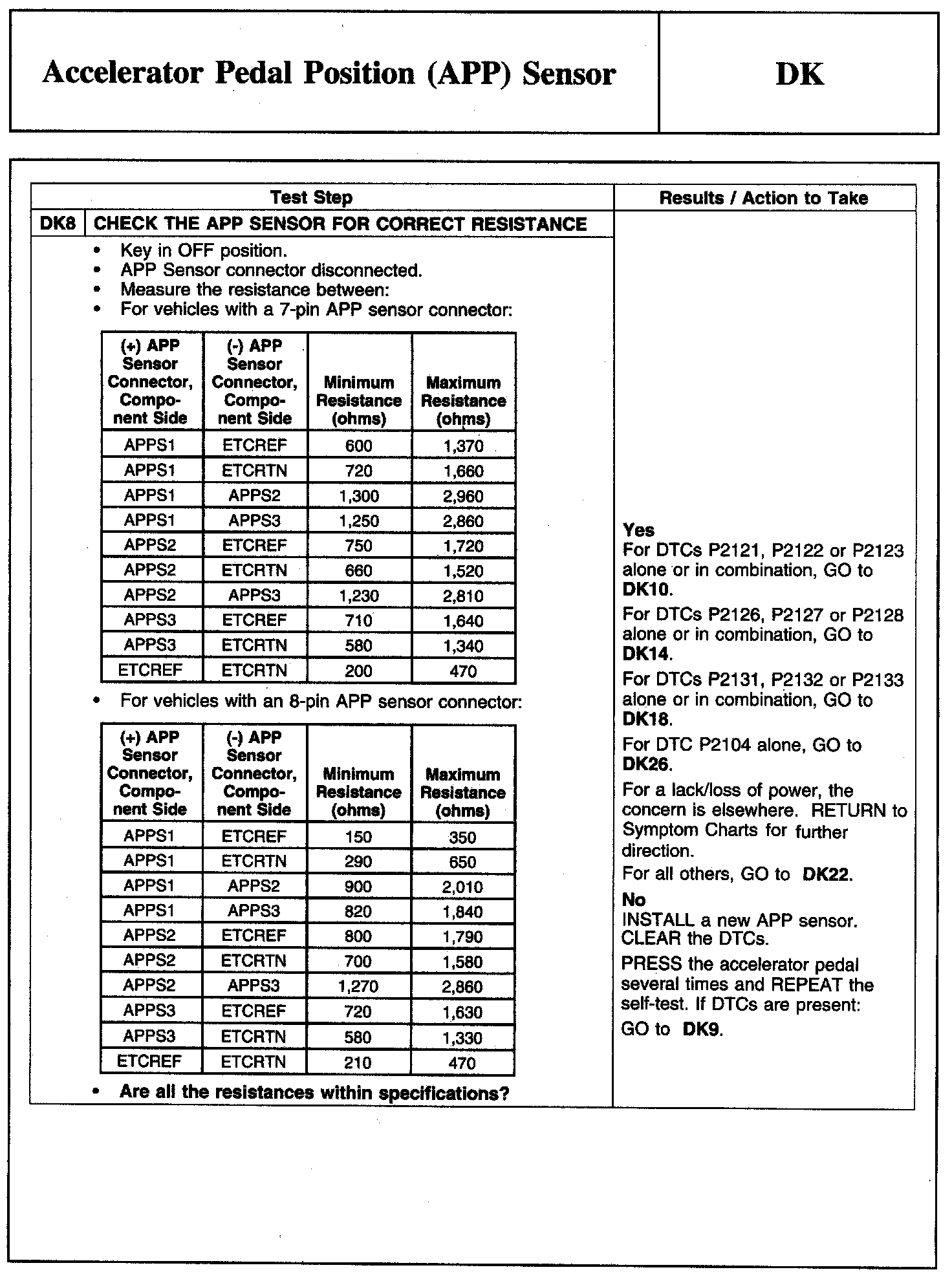

DK8:

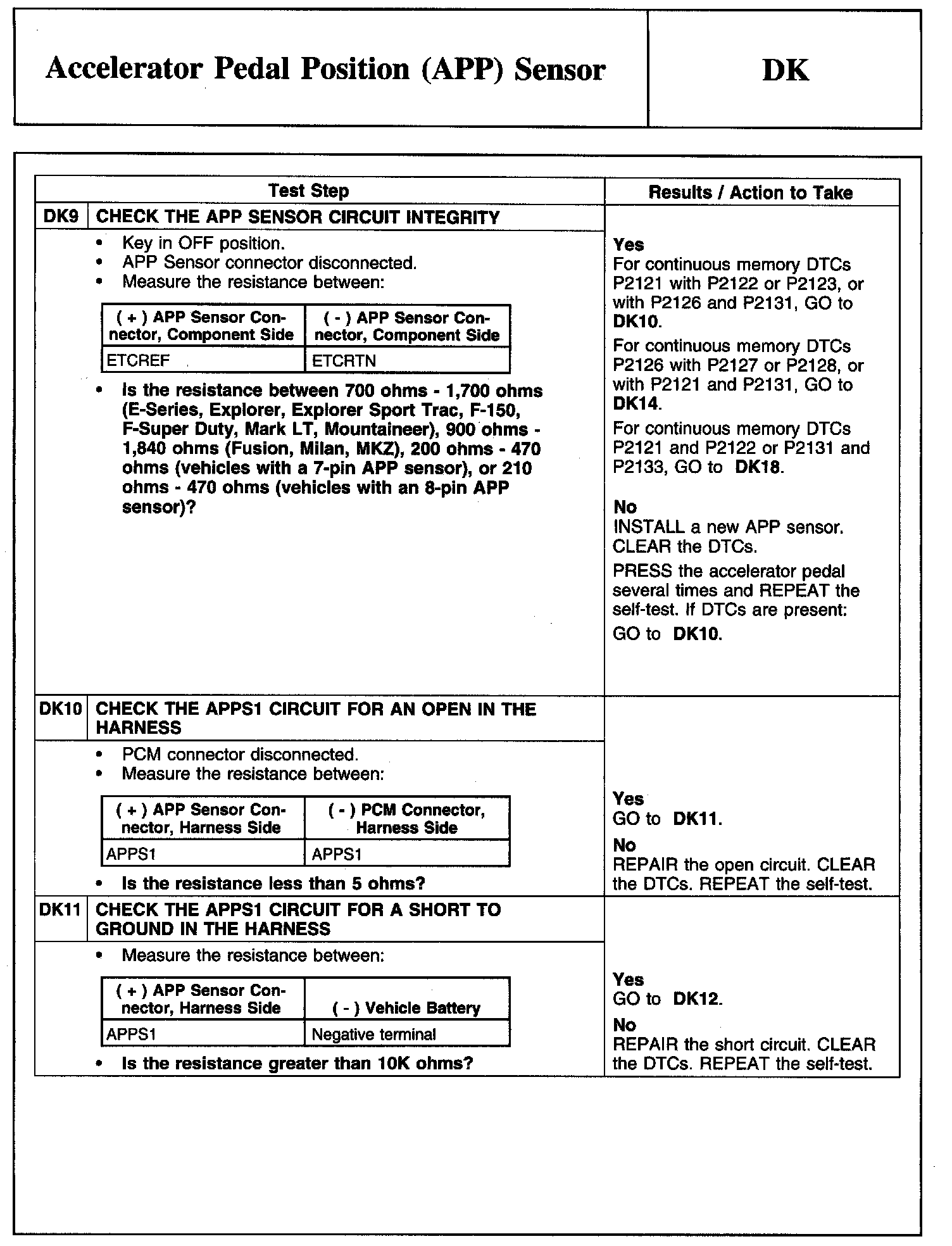

DK9-DK11:

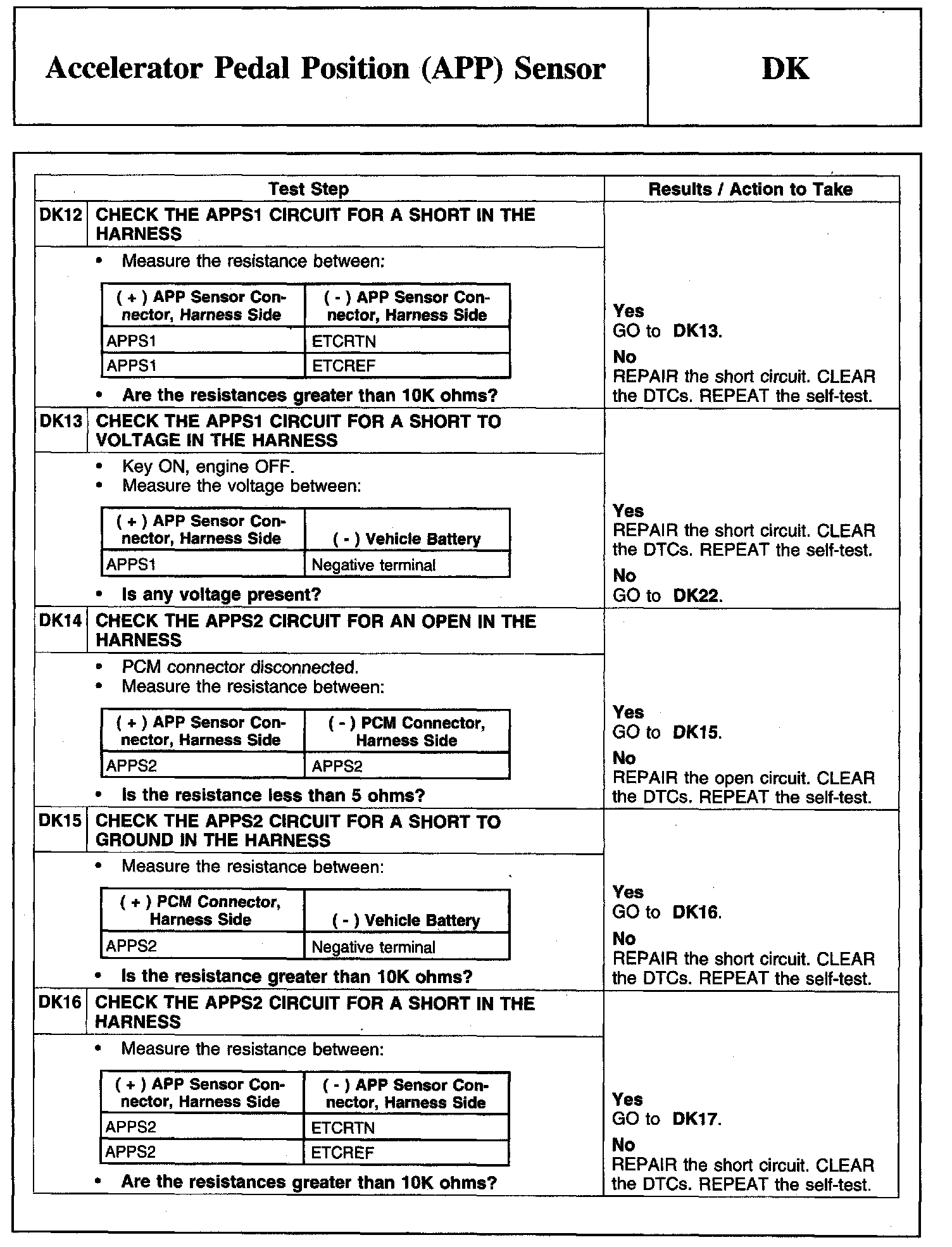

DK12-DK16:

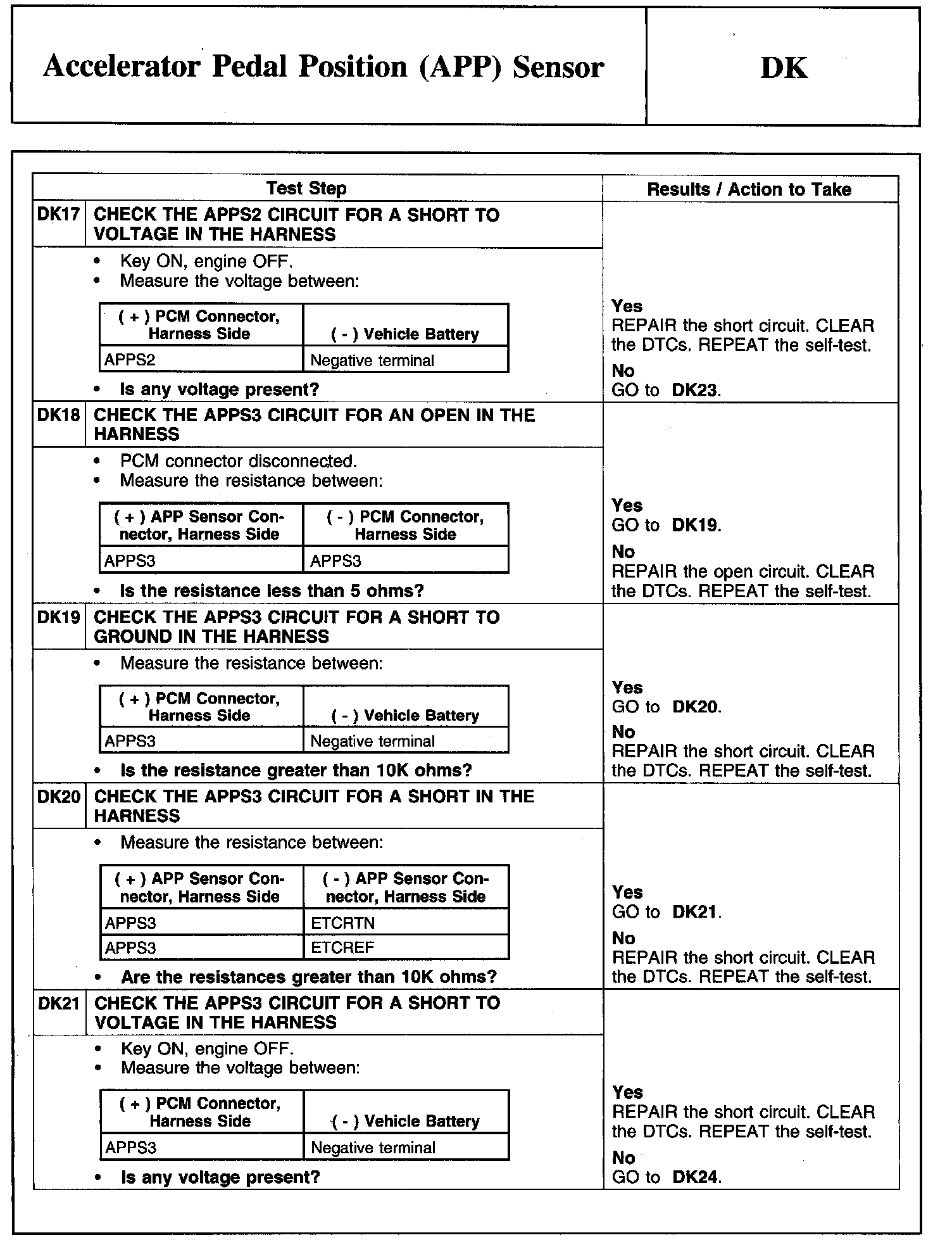

DK17-DK21:

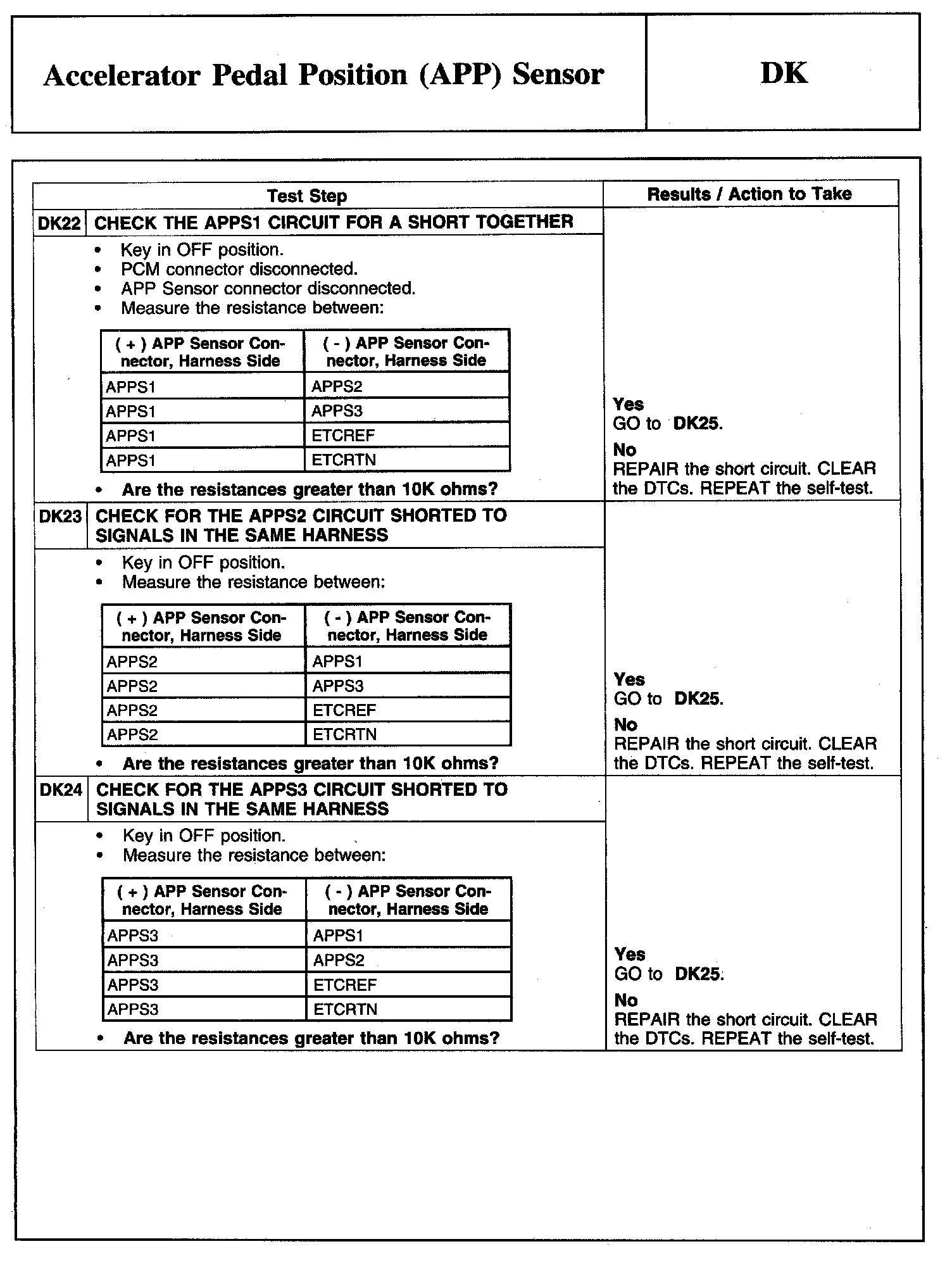

DK22-DK24:

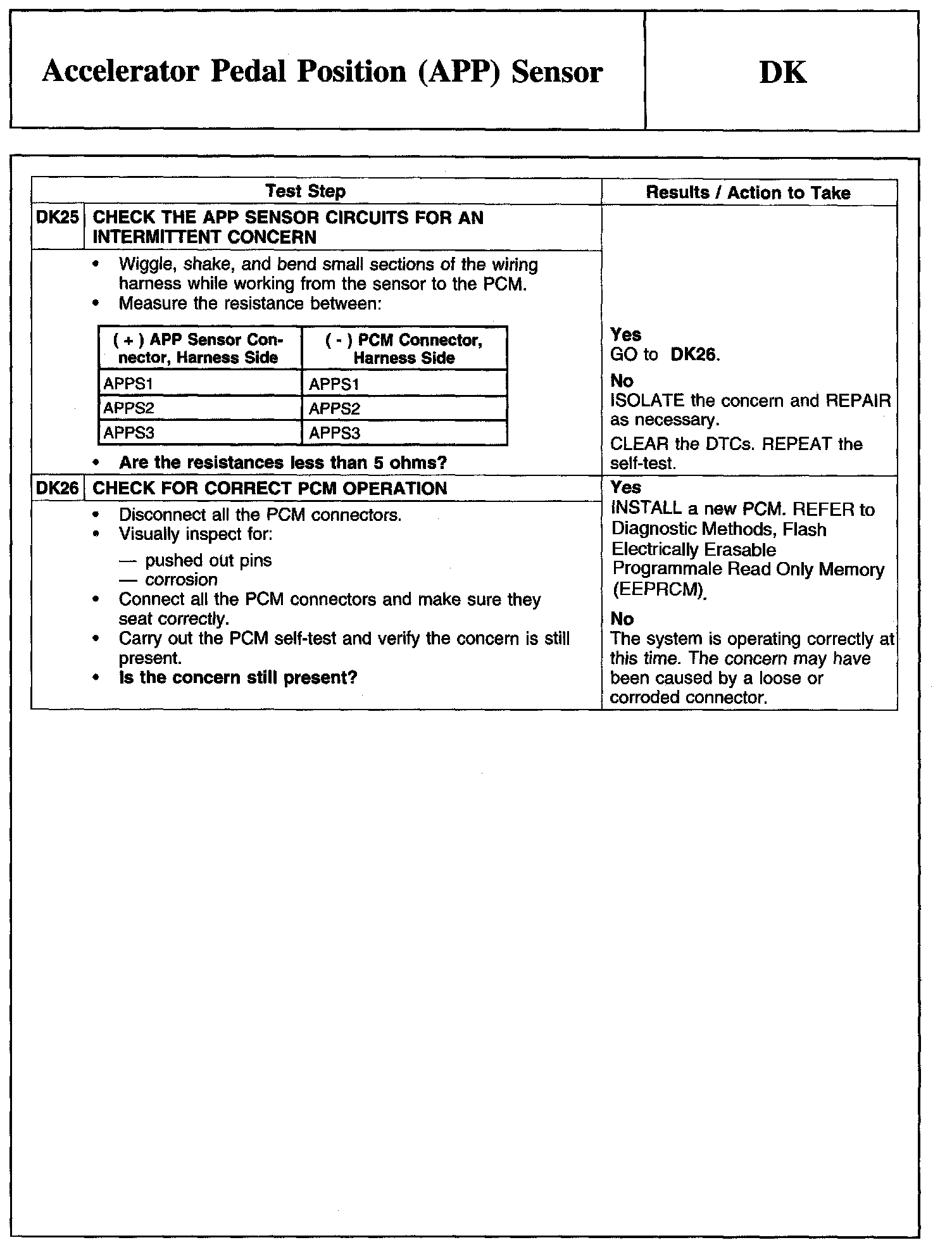

DK25-DK26:
