Tests DM: Manifold Absolute Pressure (MAP) Sensor

PINPOINT TEST DM: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

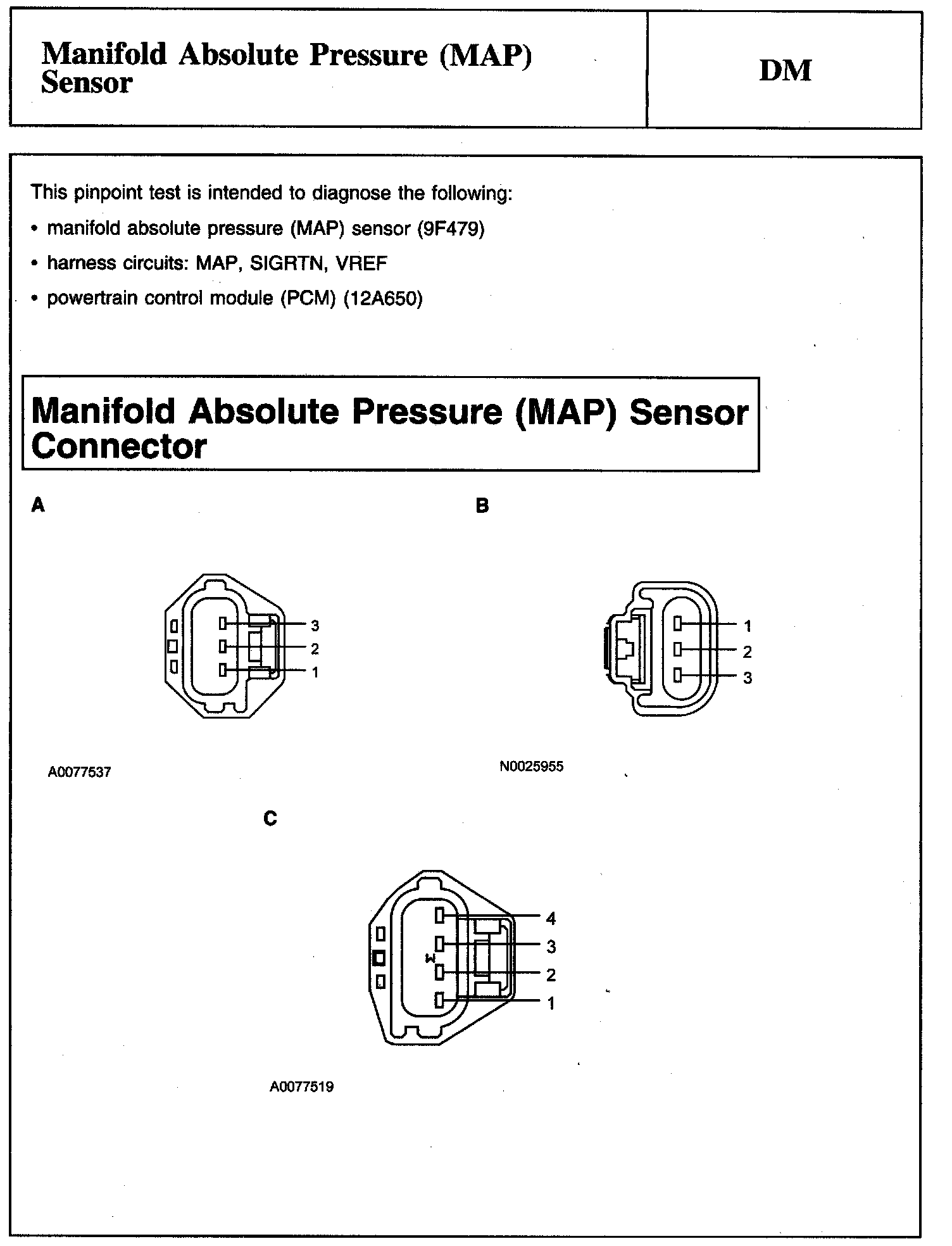

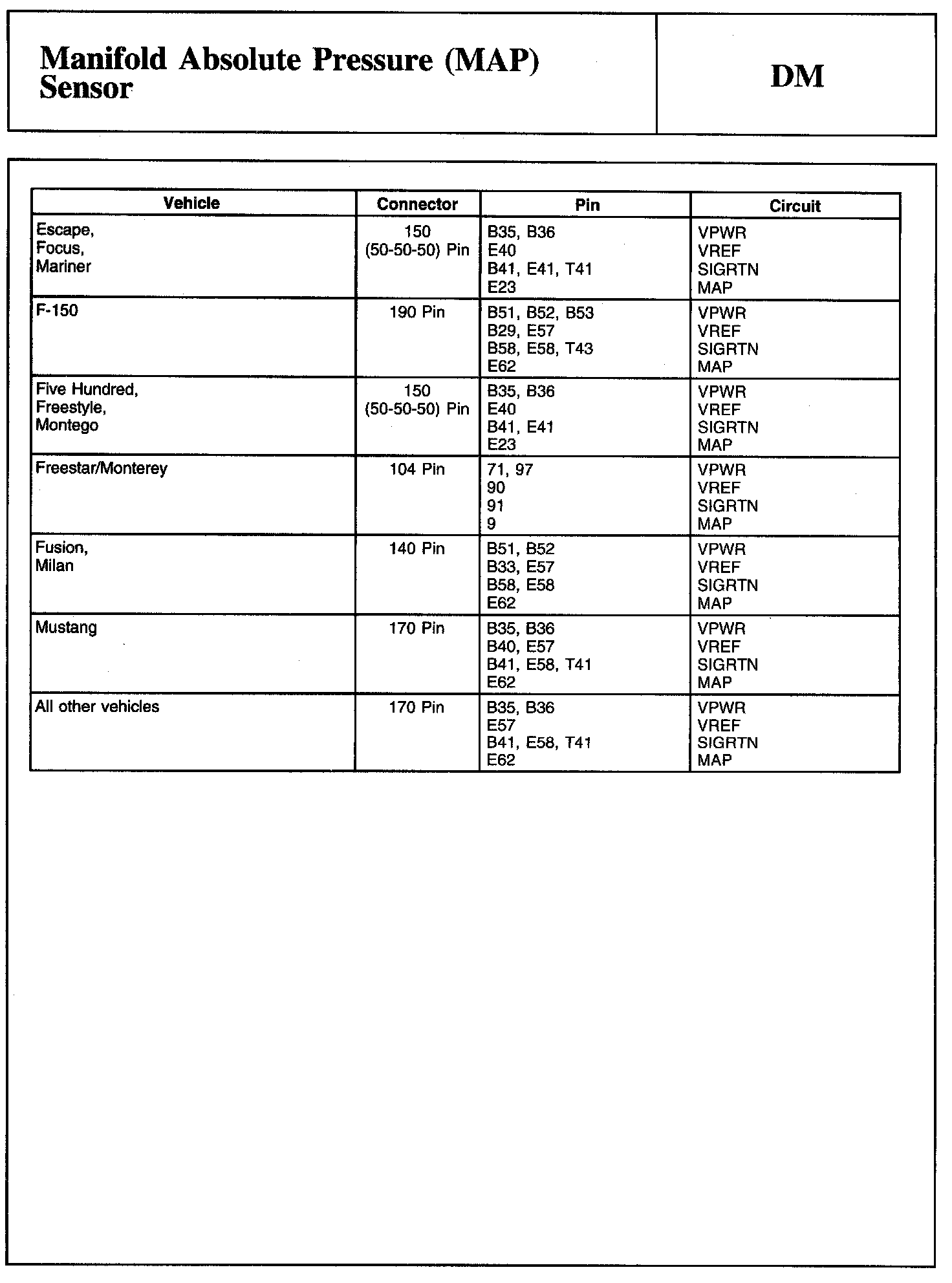

Manifold Absolute Pressure (MAP) Sensor Connector:

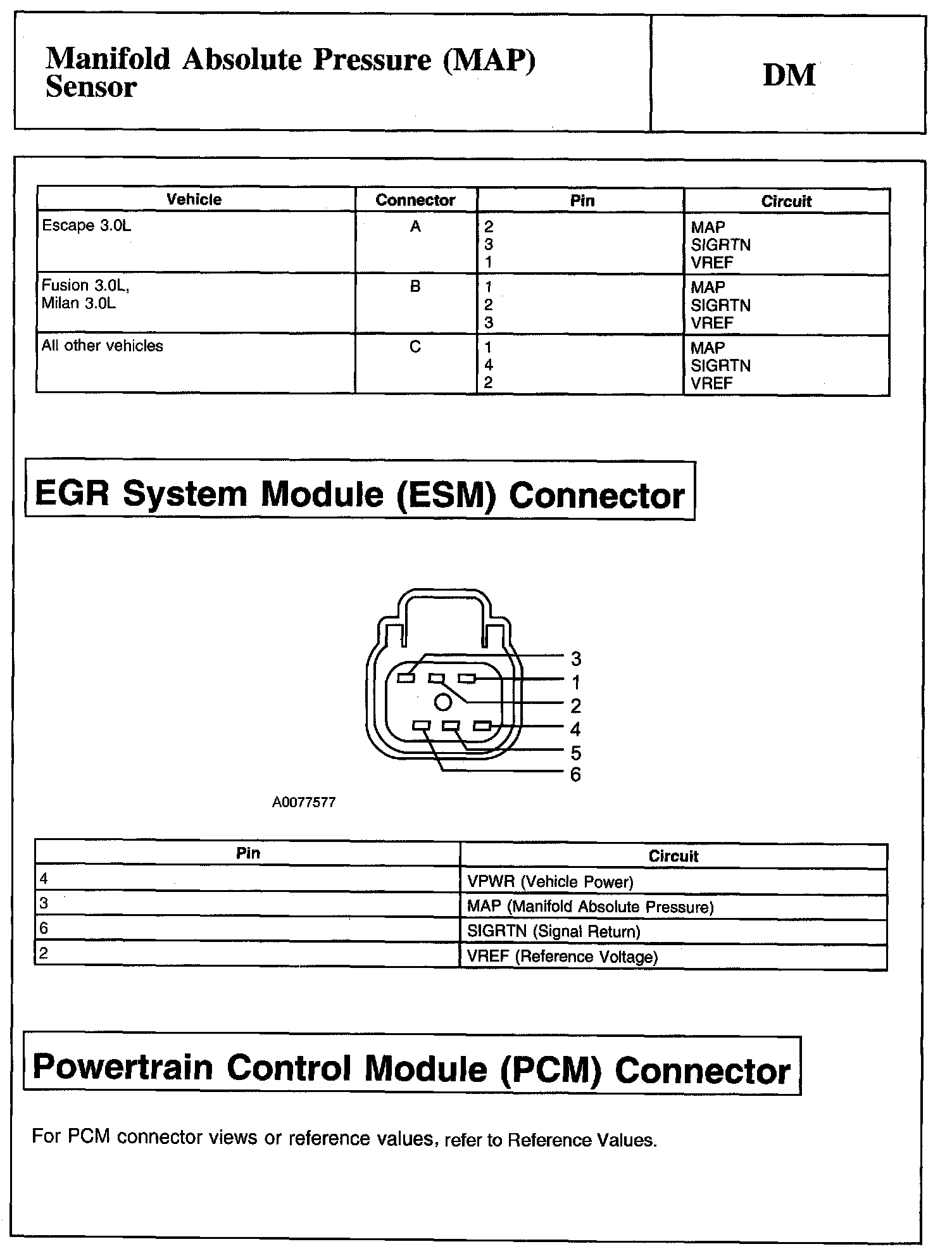

Manifold Absolute Pressure (MAP) Sensor Connector, EGR System Module (ESM) Connector And Powertrain Control Module (PCM) Connector:






Powertrain Control Module (PCM) Connector Continued:

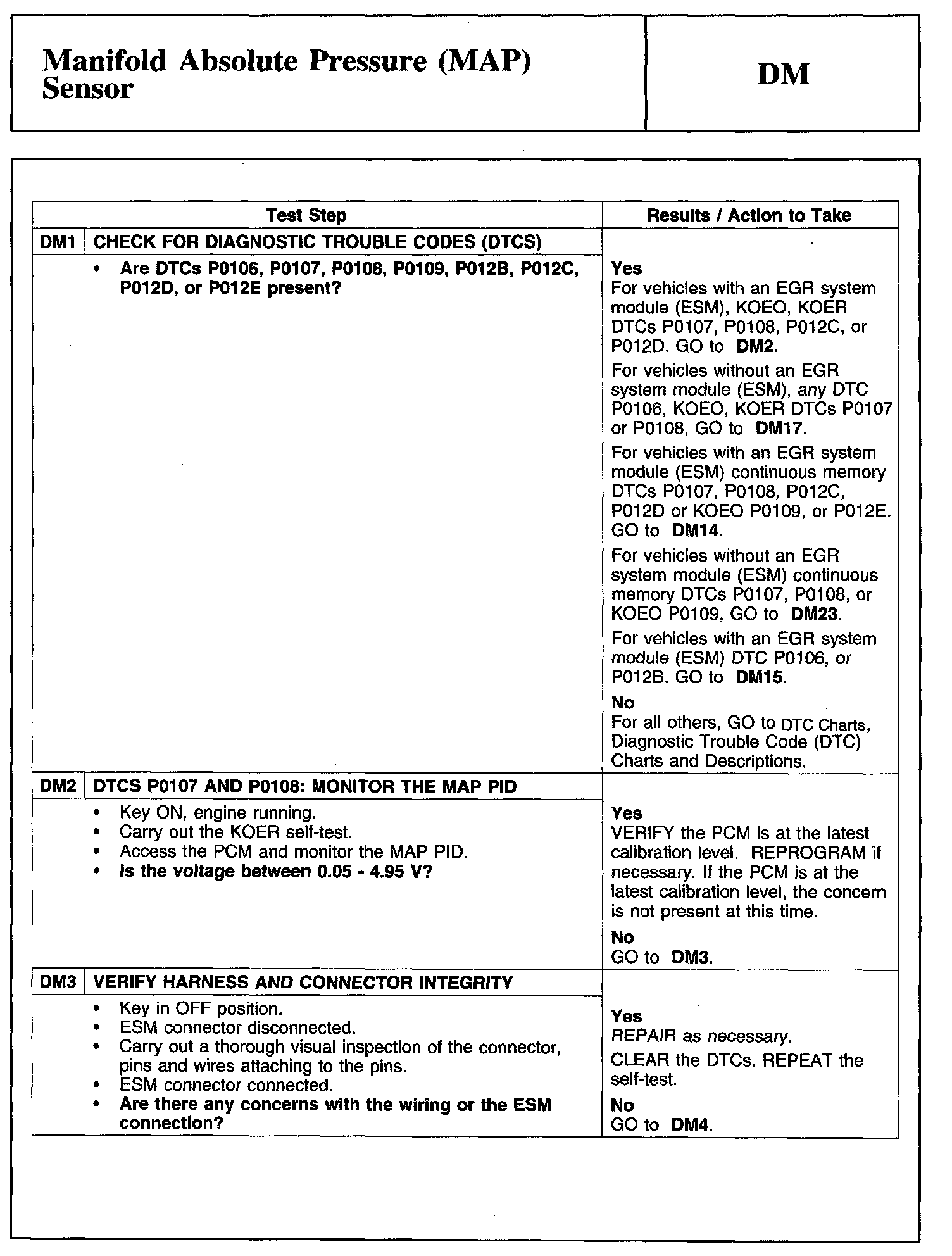

DM1-DM3:

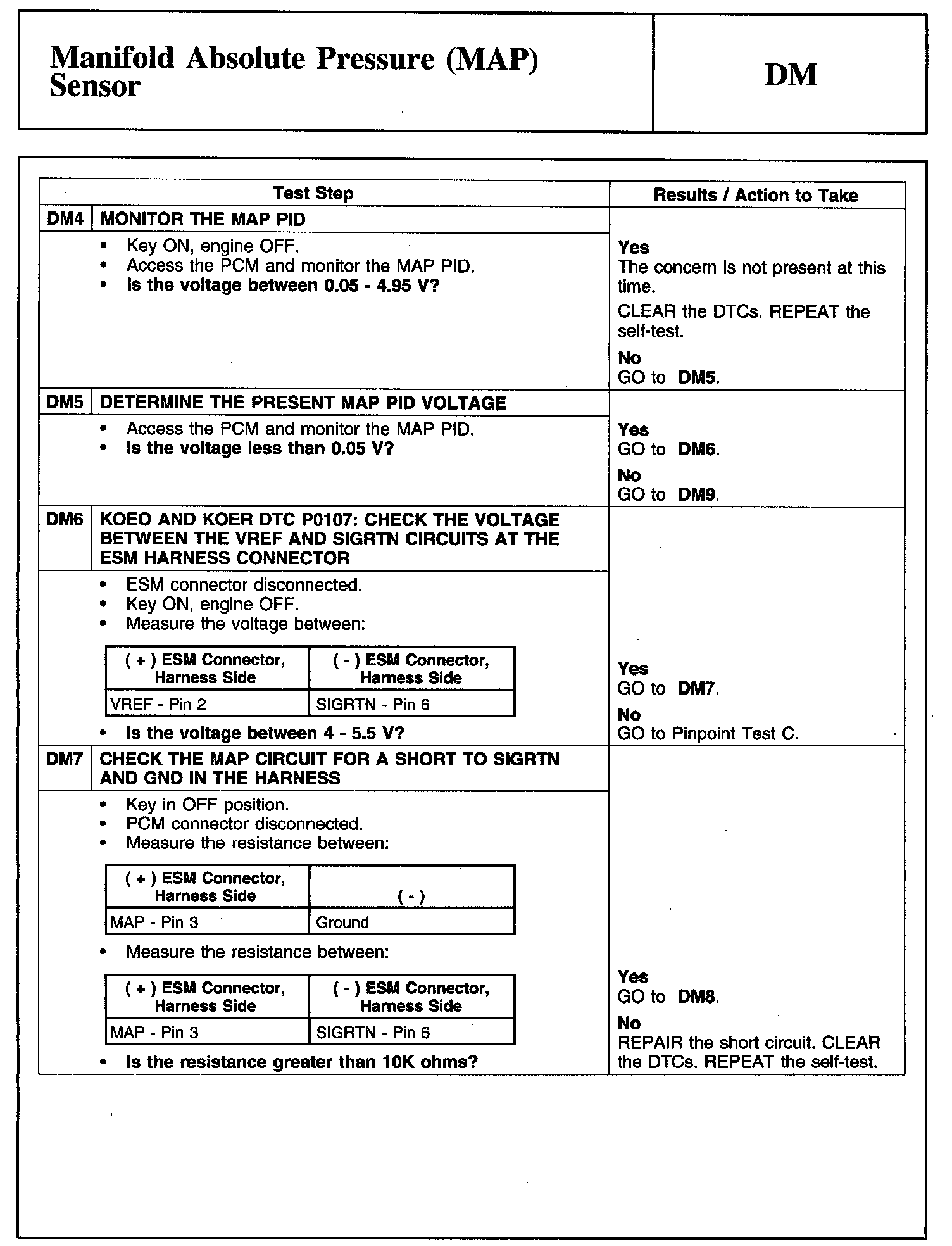

DM4-DM7:

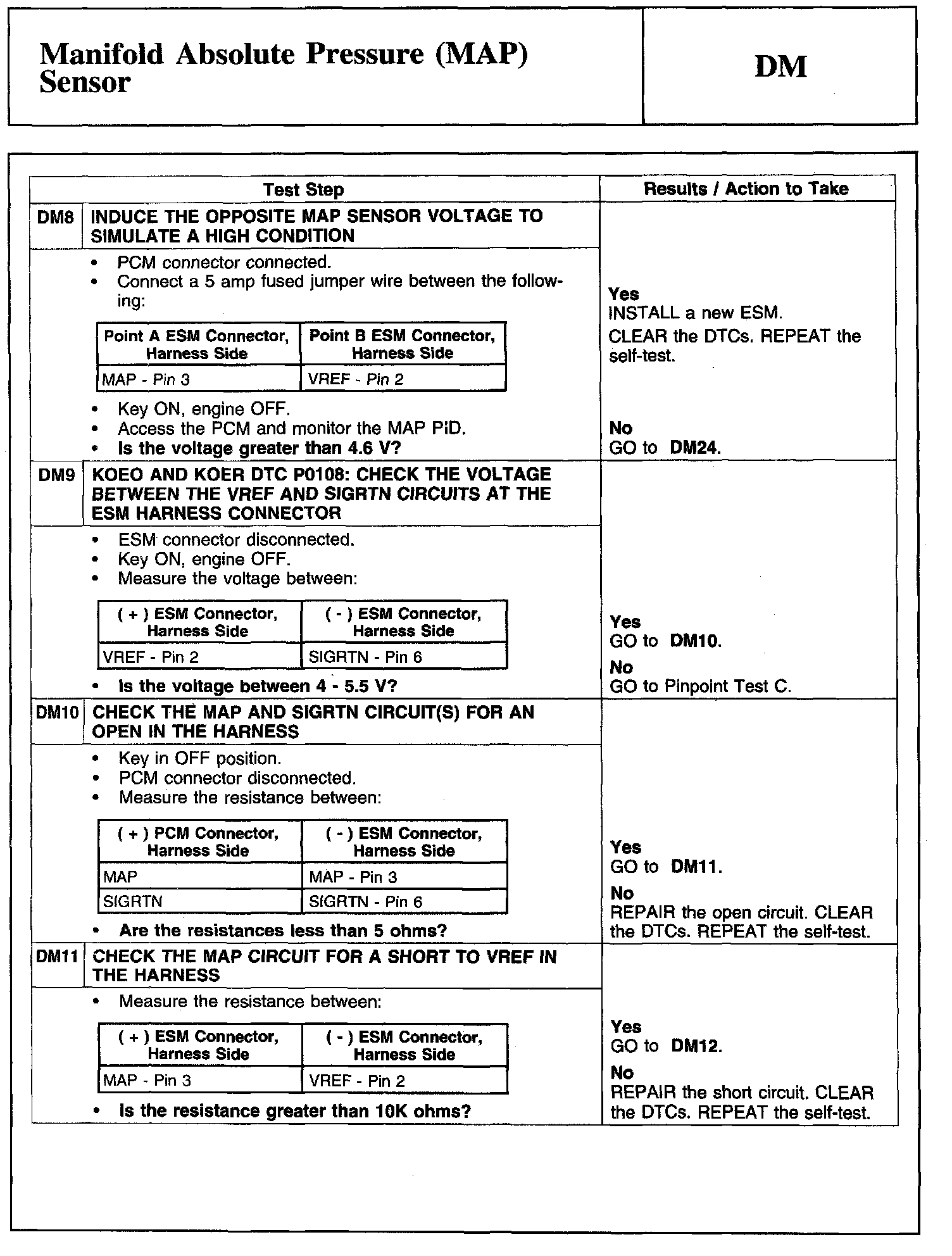

DM8-DM11:

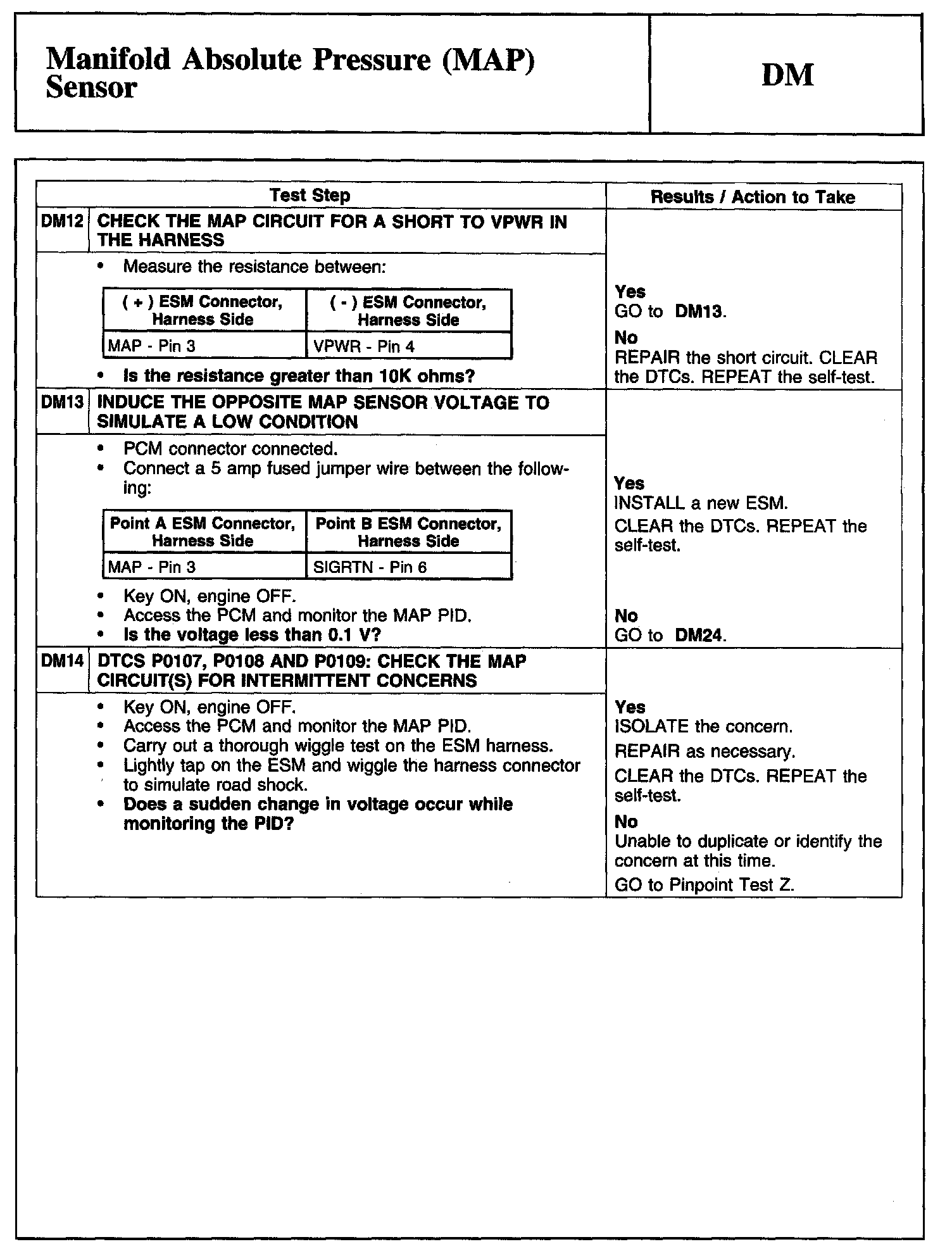

DM12-DM14:

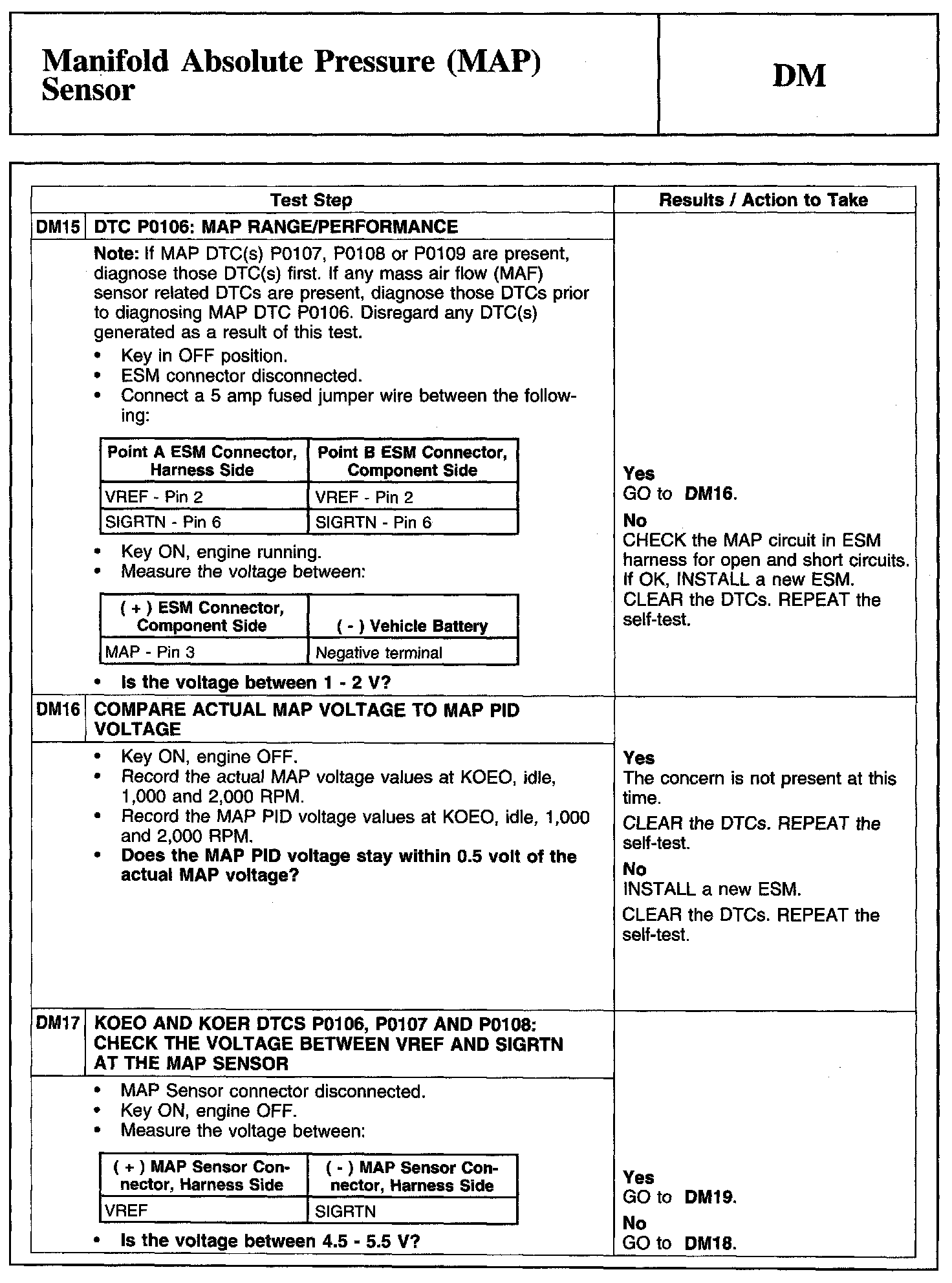

DM15-DM17:

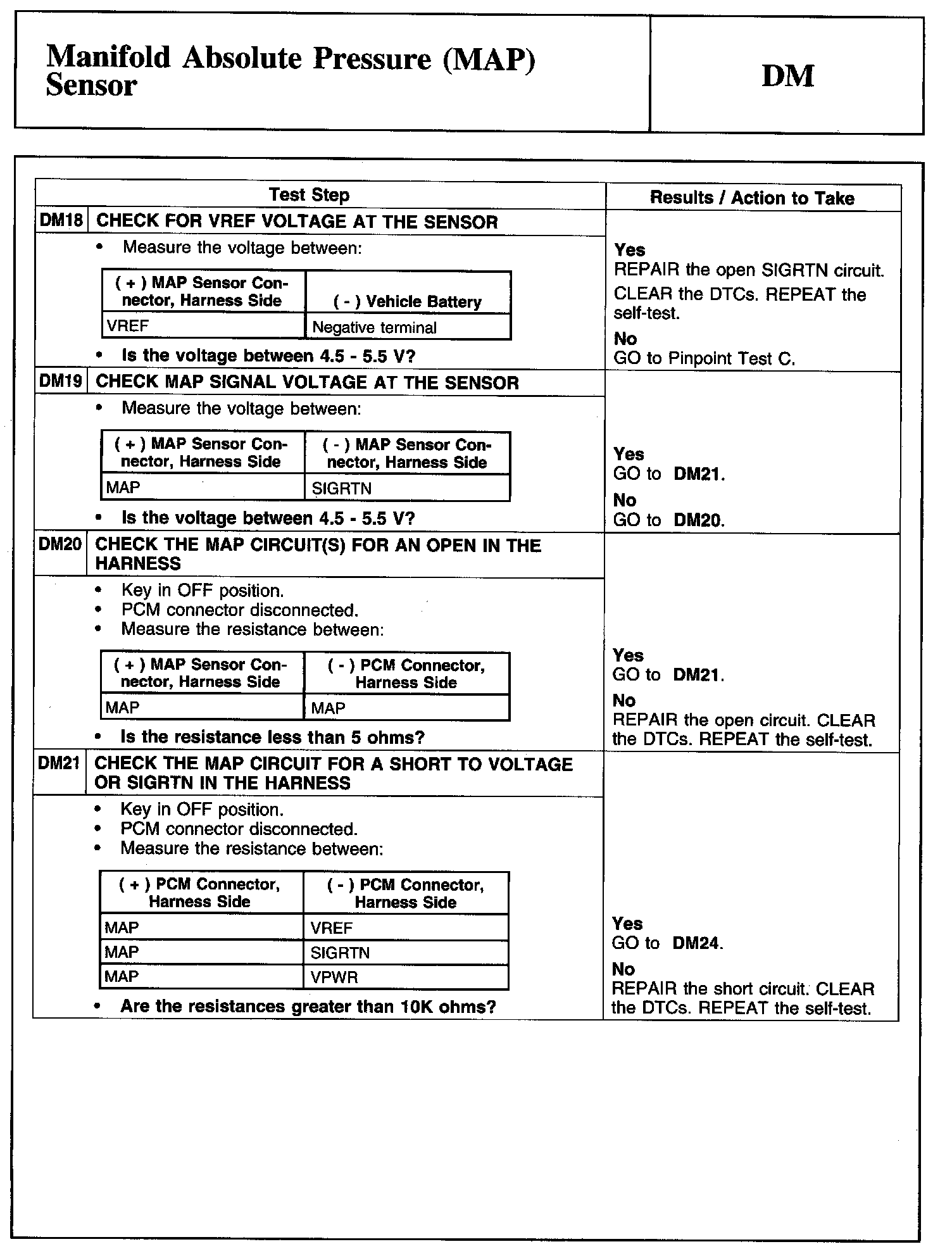

DM18-DM21:

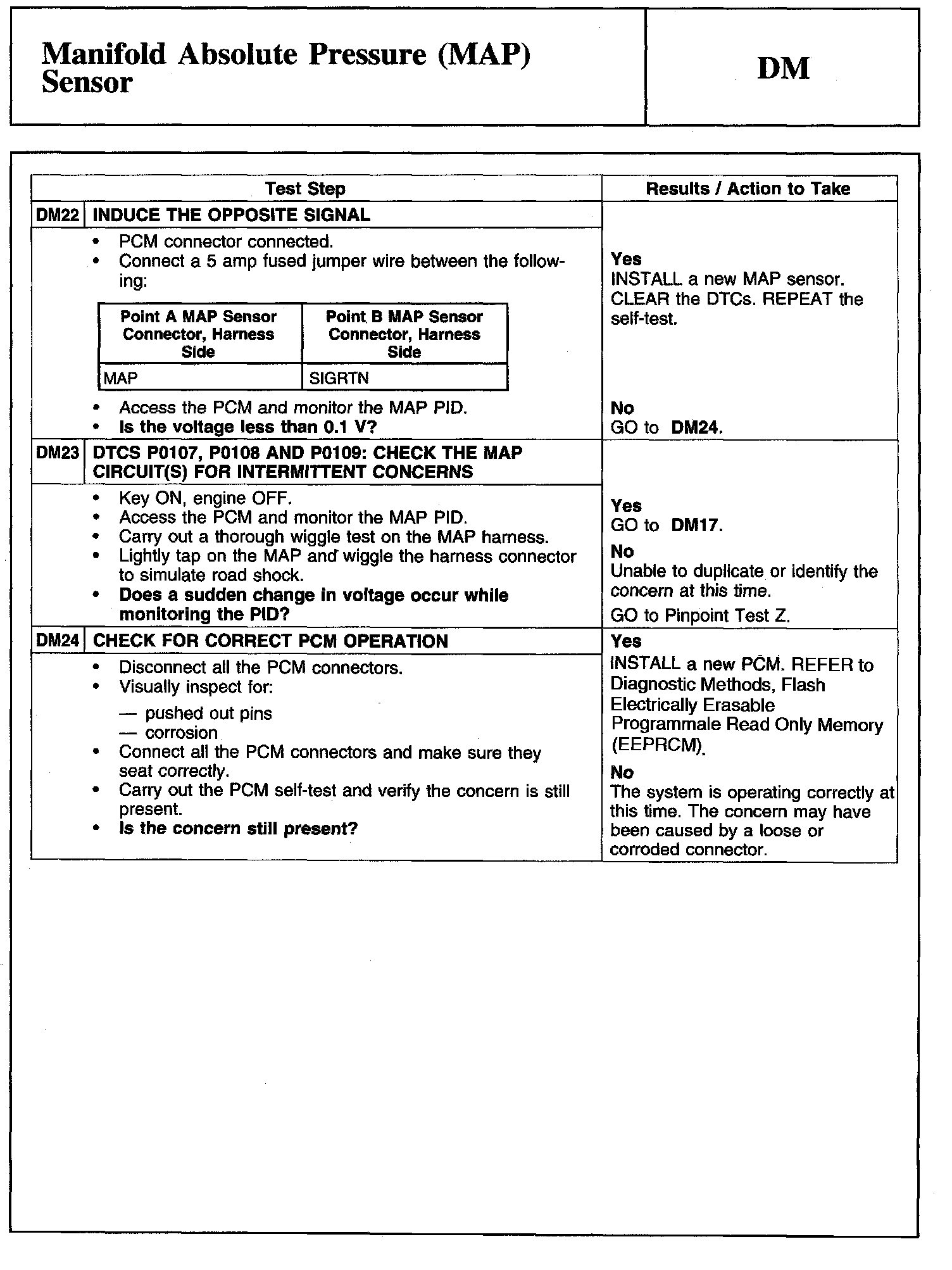

DM22-DM24:
