Tests TB: Transmission Control Switch (TCS)/Transmission Control Indicator Lamp (TCIL)
PINPOINT TEST
TB
: TRANSMISSION CONTROL SWITCH (TCS)/TRANSMISSION CONTROL INDICATOR LAMP (TCIL)

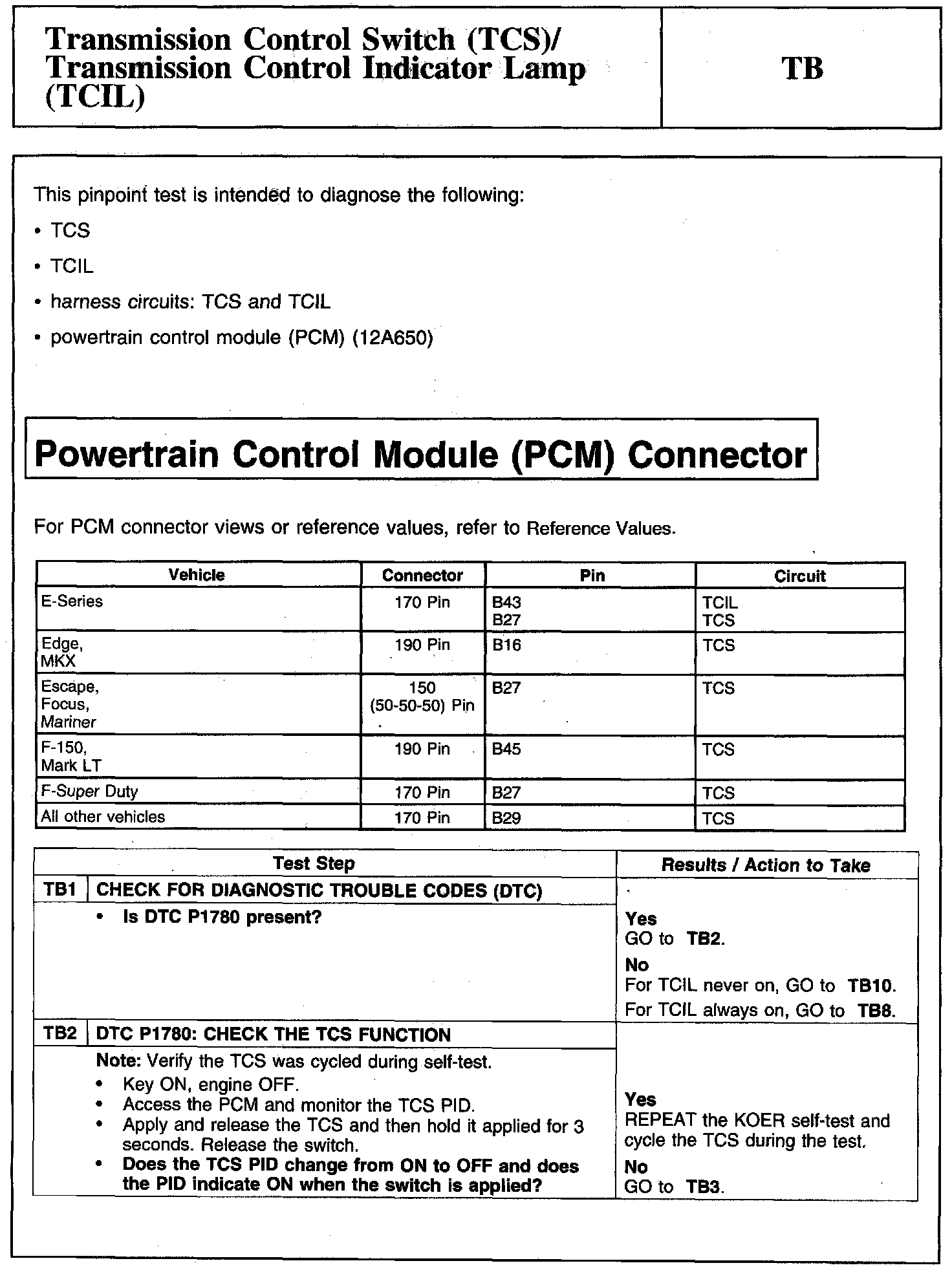

TB1-TB2:

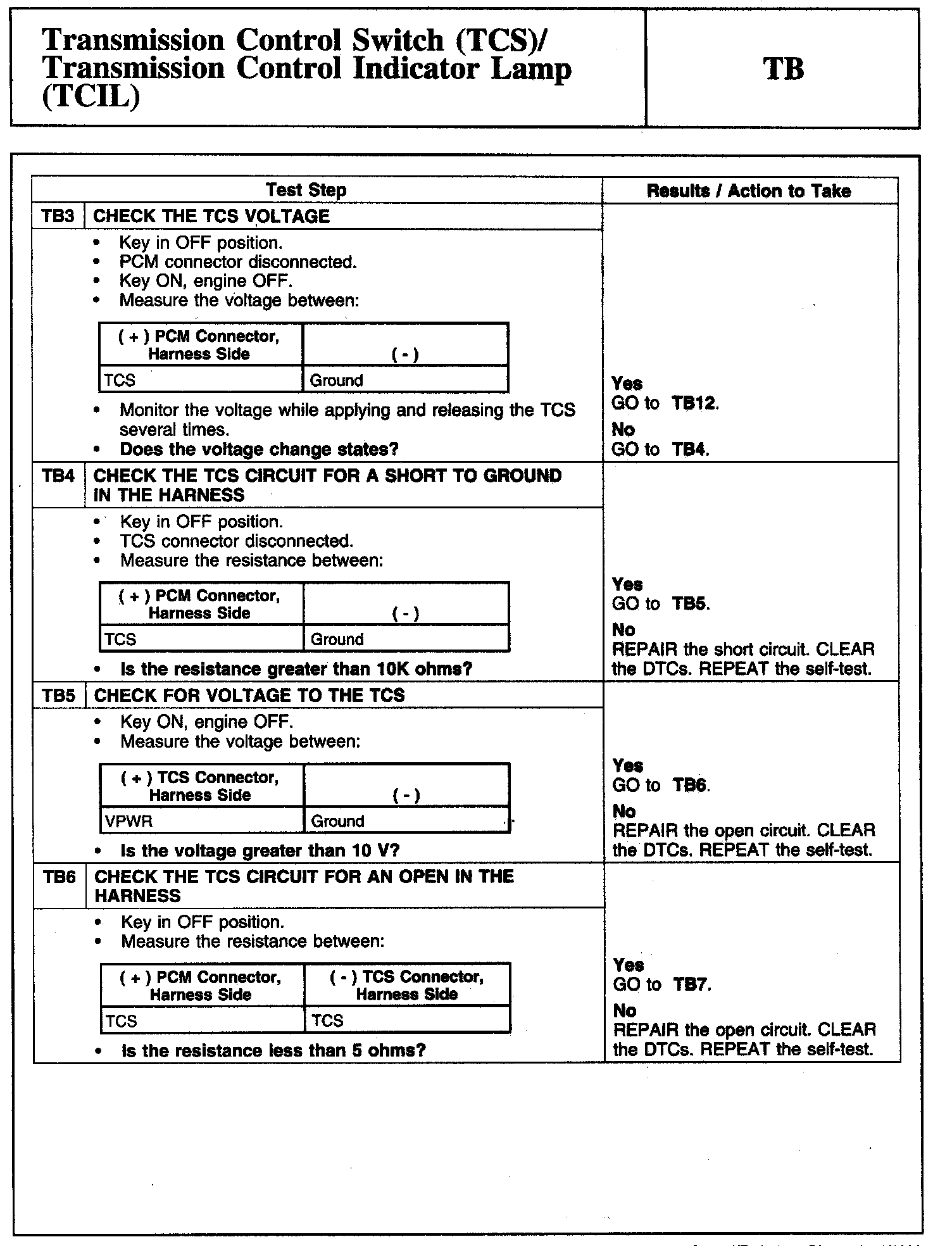

TB3-TB6:

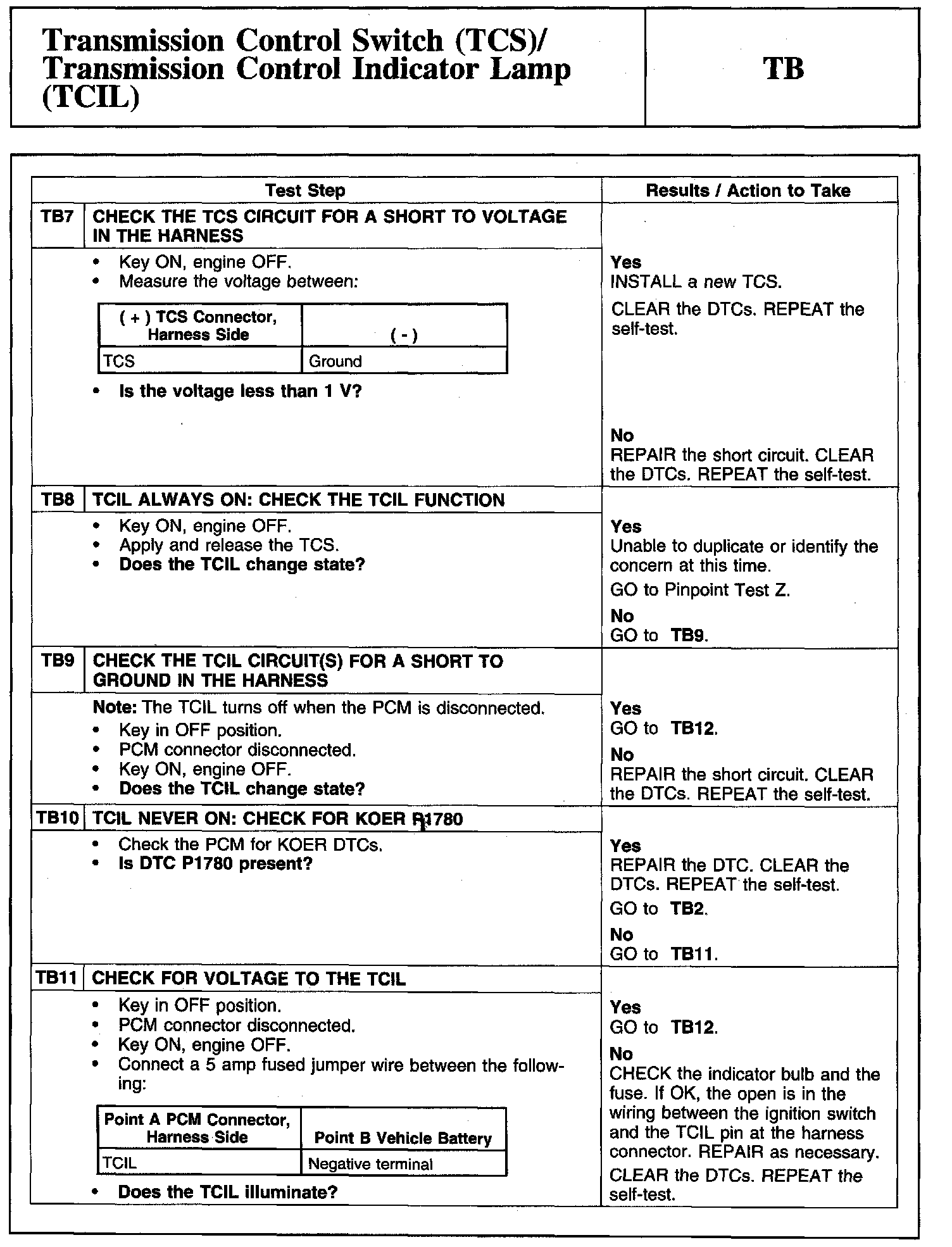

TB7-TB11:

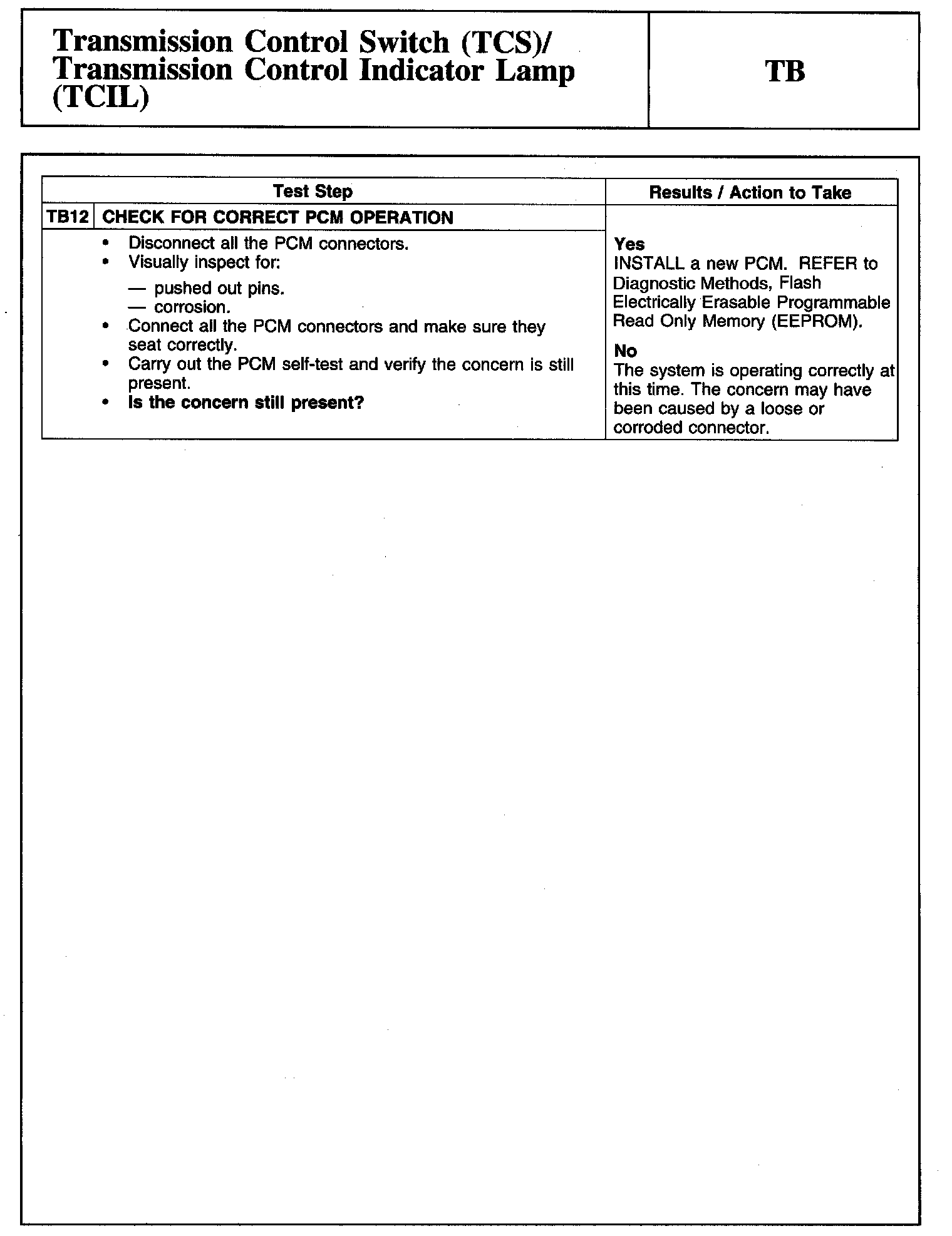

TB12:
