Battery Tray

BATTERY TRAY

Battery And Battery Tray:

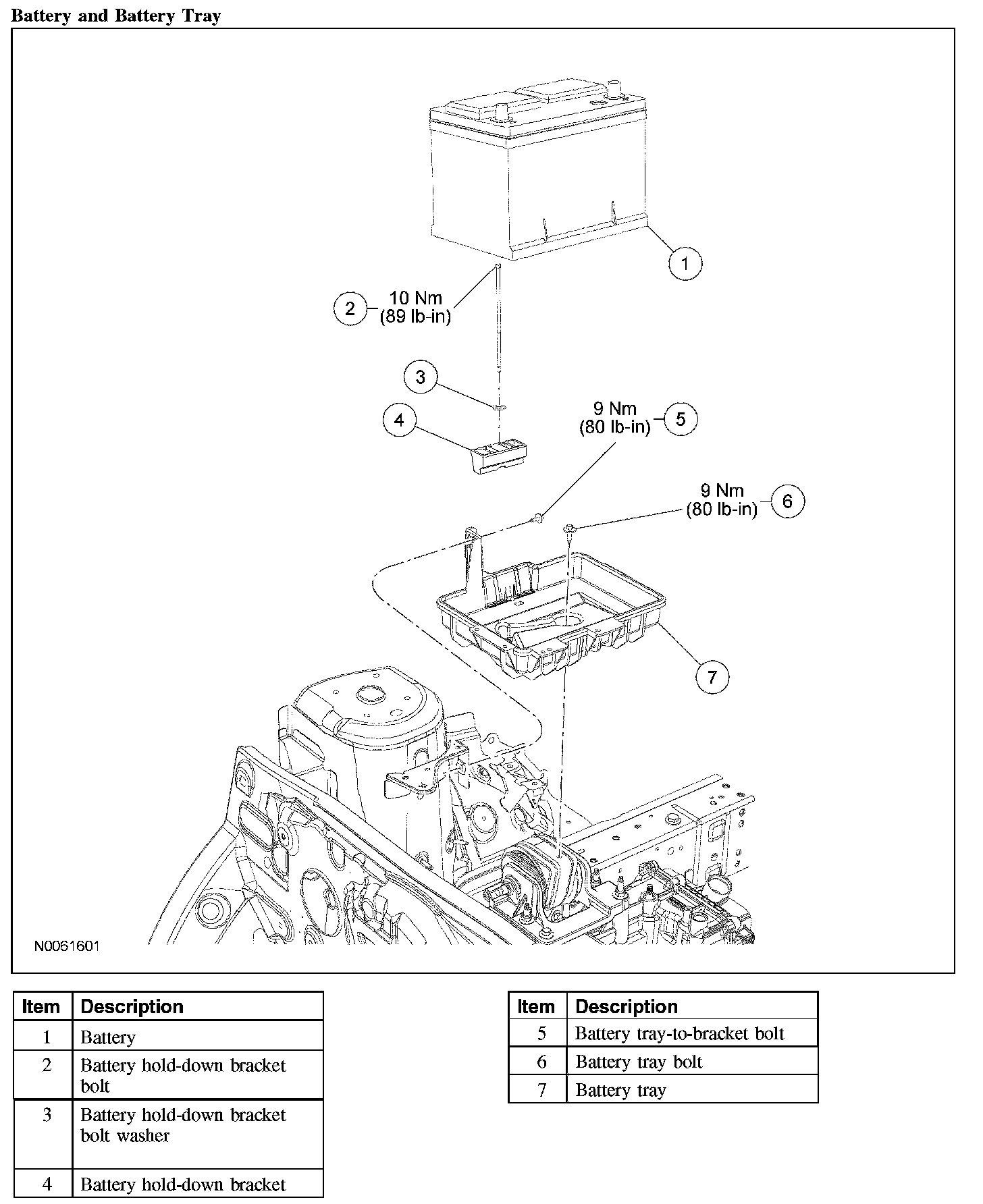

Exploded View

Removal and Installation
1. Remove the battery.
2. Remove the 3 battery cable harness locators from the battery tray.
3. Remove the battery tray bolt.
- To install, tighten to 9 Nm (80 lb-in).

4. Remove the battery tray-to-bracket bolt.
- To install, tighten to 9 Nm (80 lb-in).

5. Remove the battery tray.
6. To install, reverse the removal procedure.
