Test G: Radio Interference

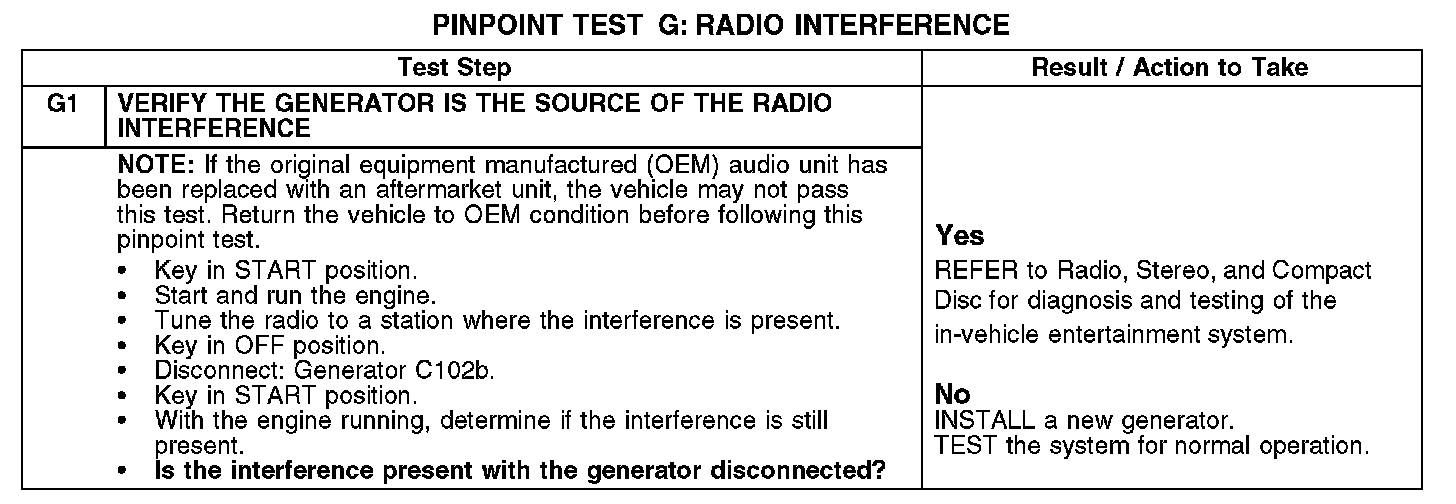

PINPOINT TEST G: RADIO INTERFERENCE


G1:






Normal Operation
The generator radio suppression equipment reduces interference transmitted through the speakers by the vehicle electrical system.

Possible Causes
- Generator
- In-vehicle entertainment system
