Ignition Switch Lock Cylinder: Service and Repair

IGNITION LOCK CYLINDER







Removal and Installation
1. Remove the passive anti-theft system (PATS) transceiver.
2. Turn the ignition key to the ON position.

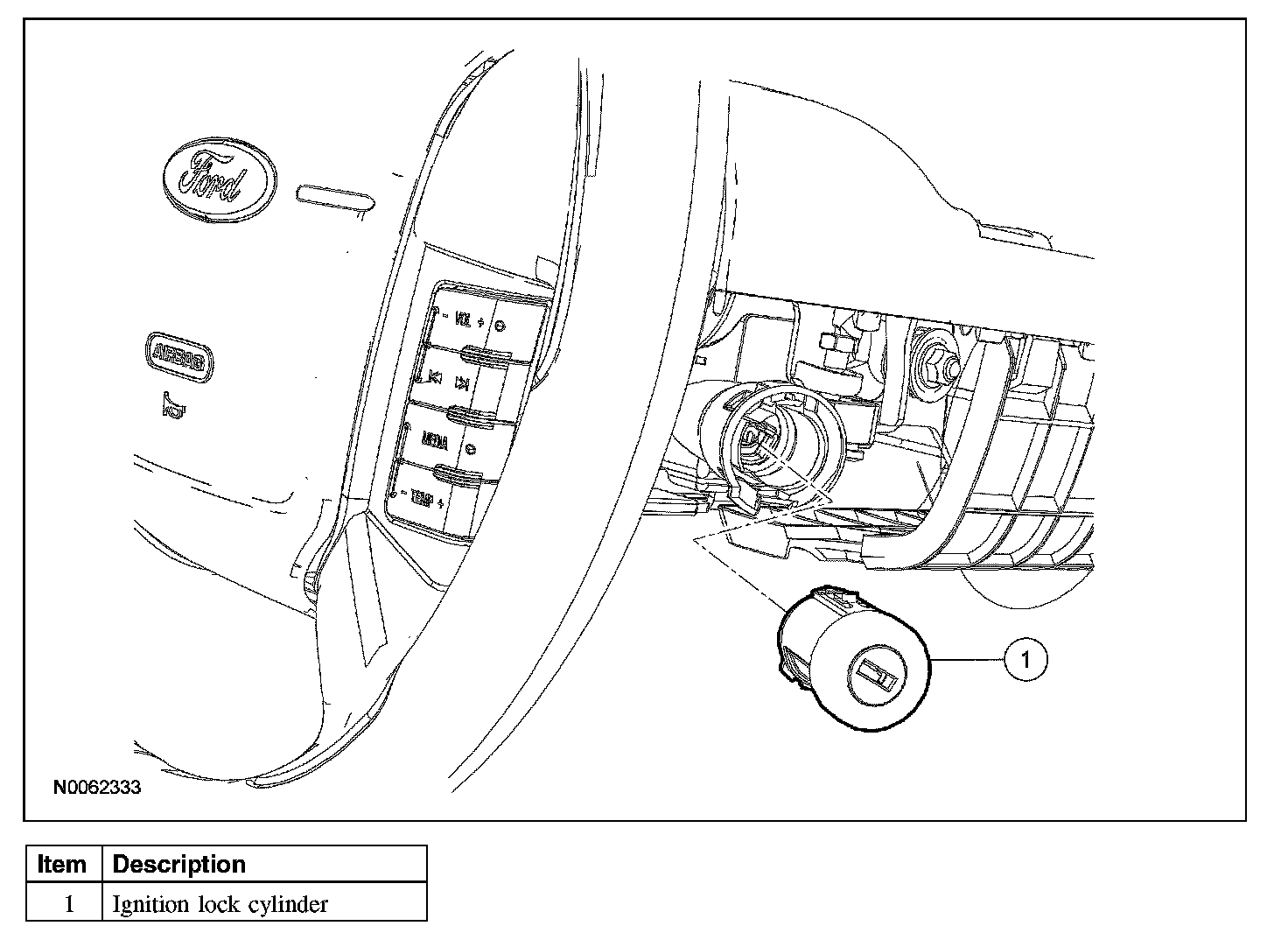

3. Using a suitable tool, press the ignition lock cylinder release button and remove the ignition lock cylinder.
4. To install, reverse the removal procedure.
