Tests HC: Fuel Delivery System

PINPOINT TEST HC: FUEL DELIVERY SYSTEM

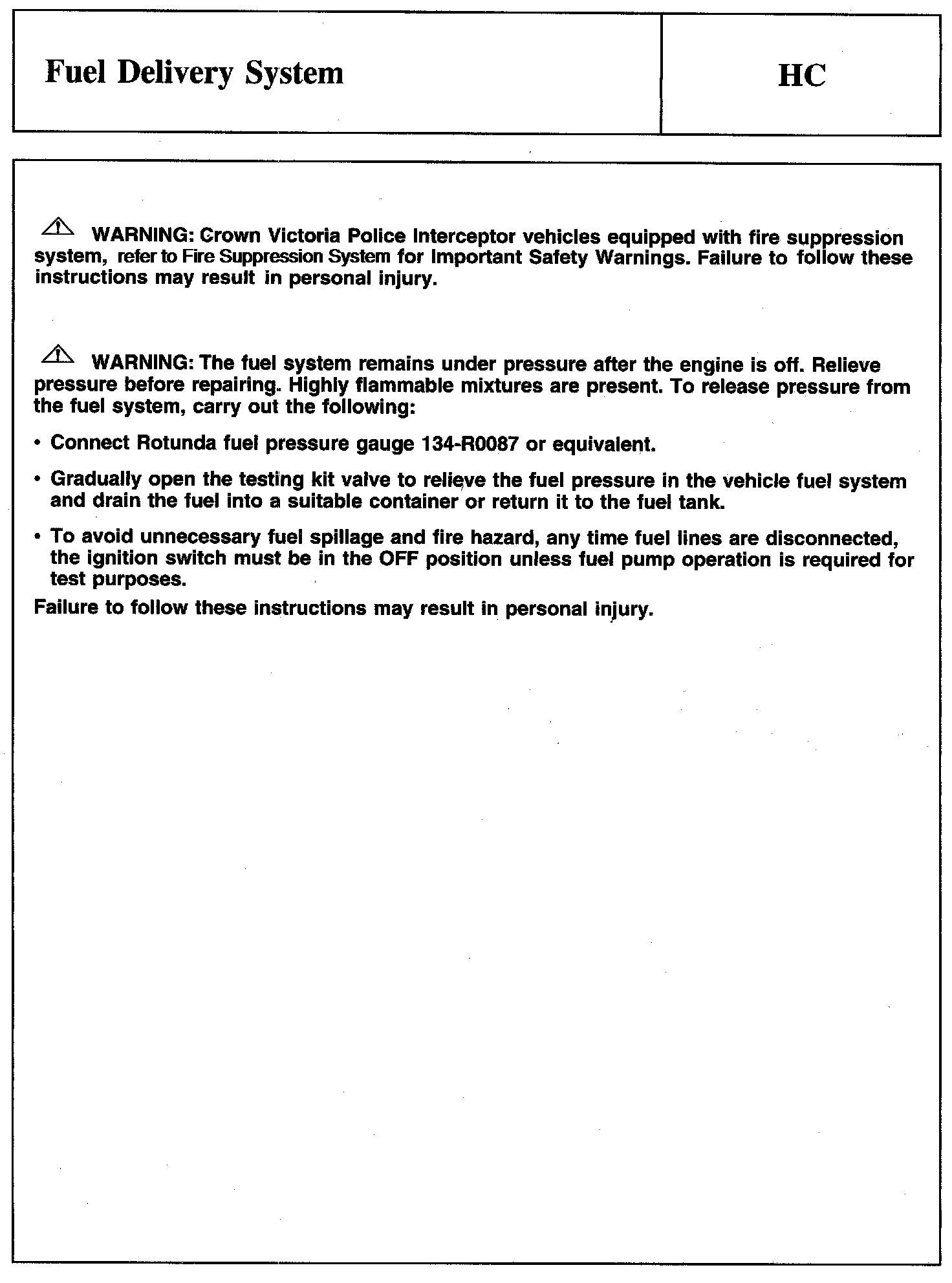

Warning:

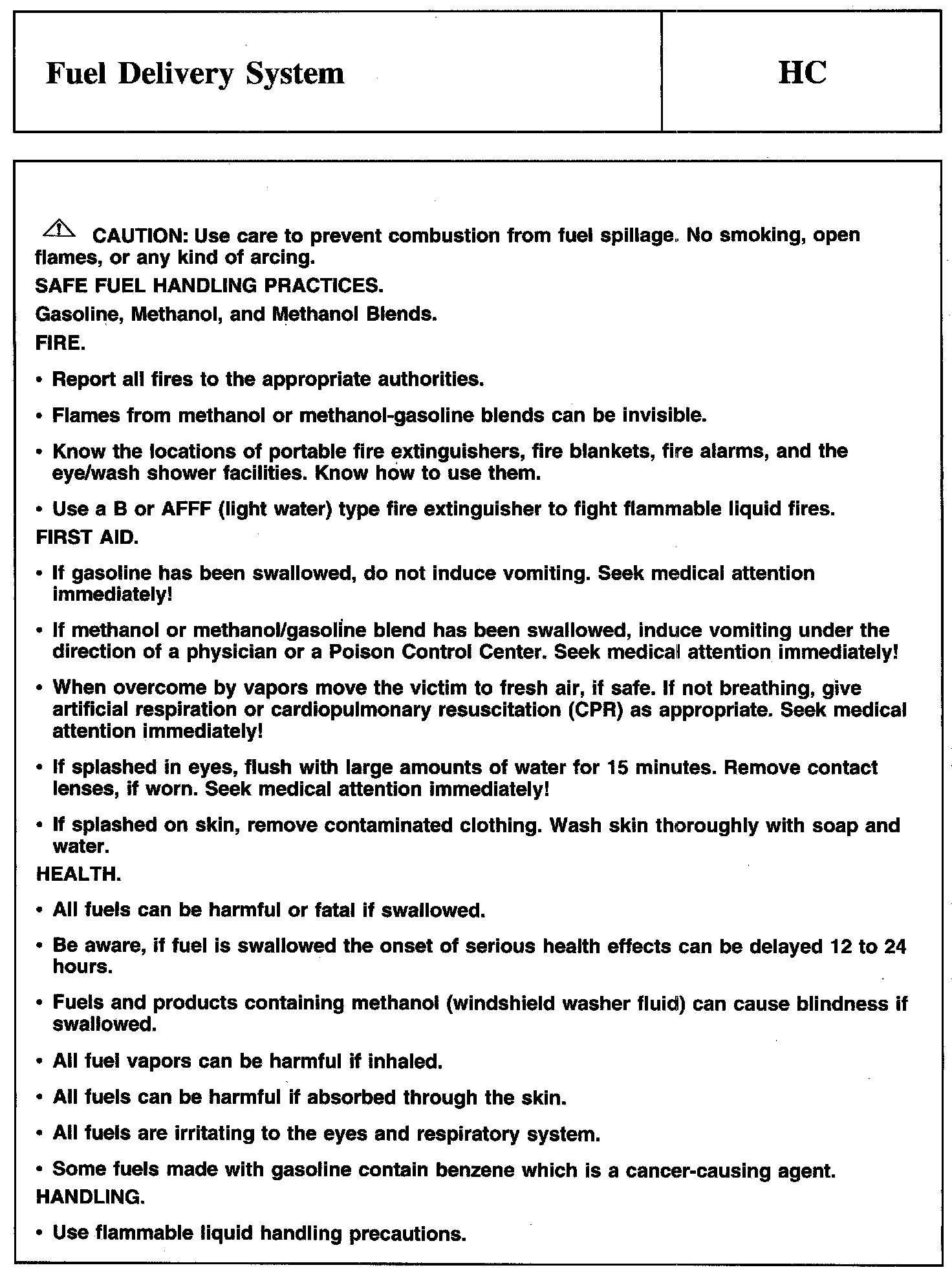

Caution:

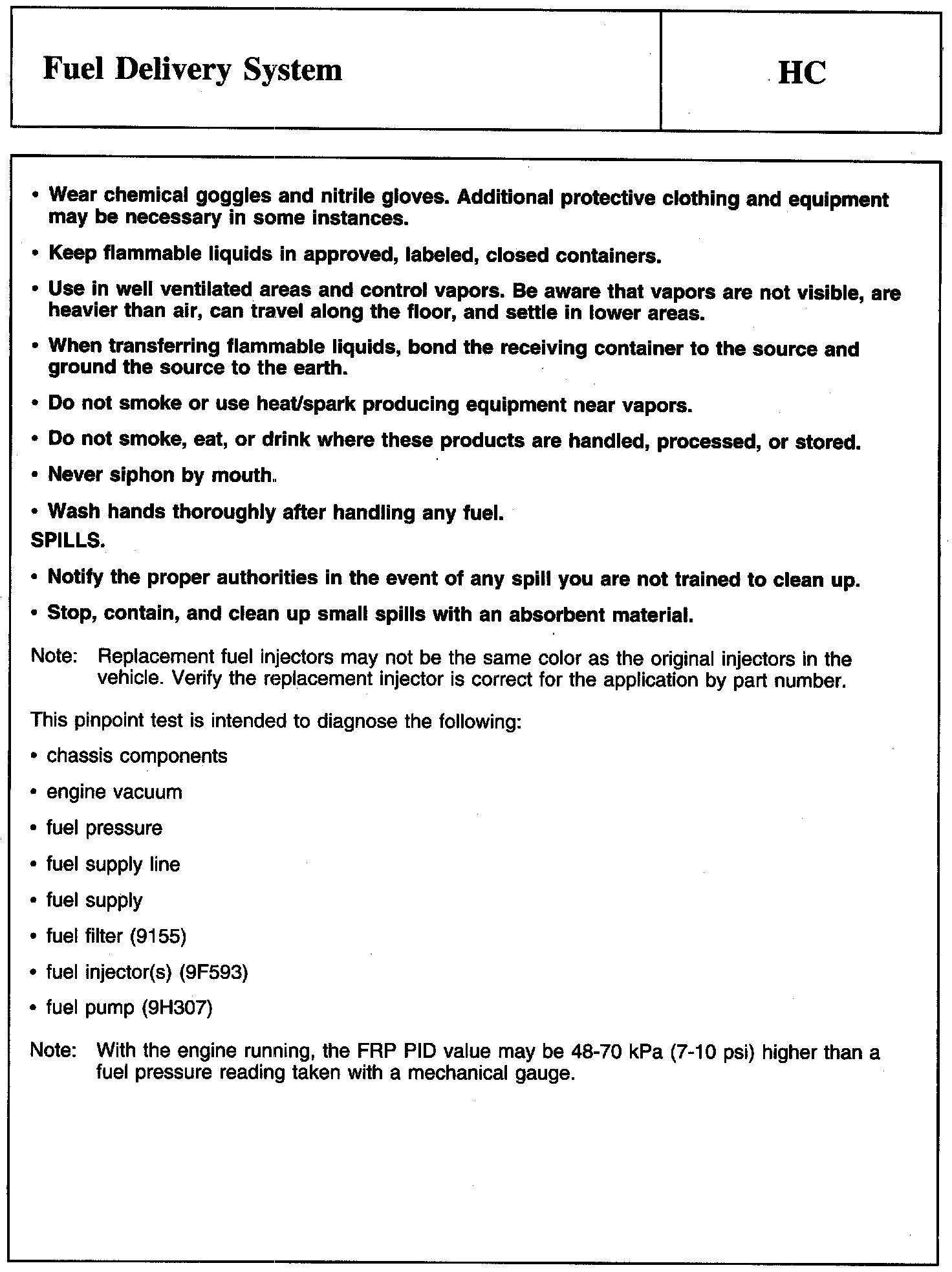

Caution And Note:

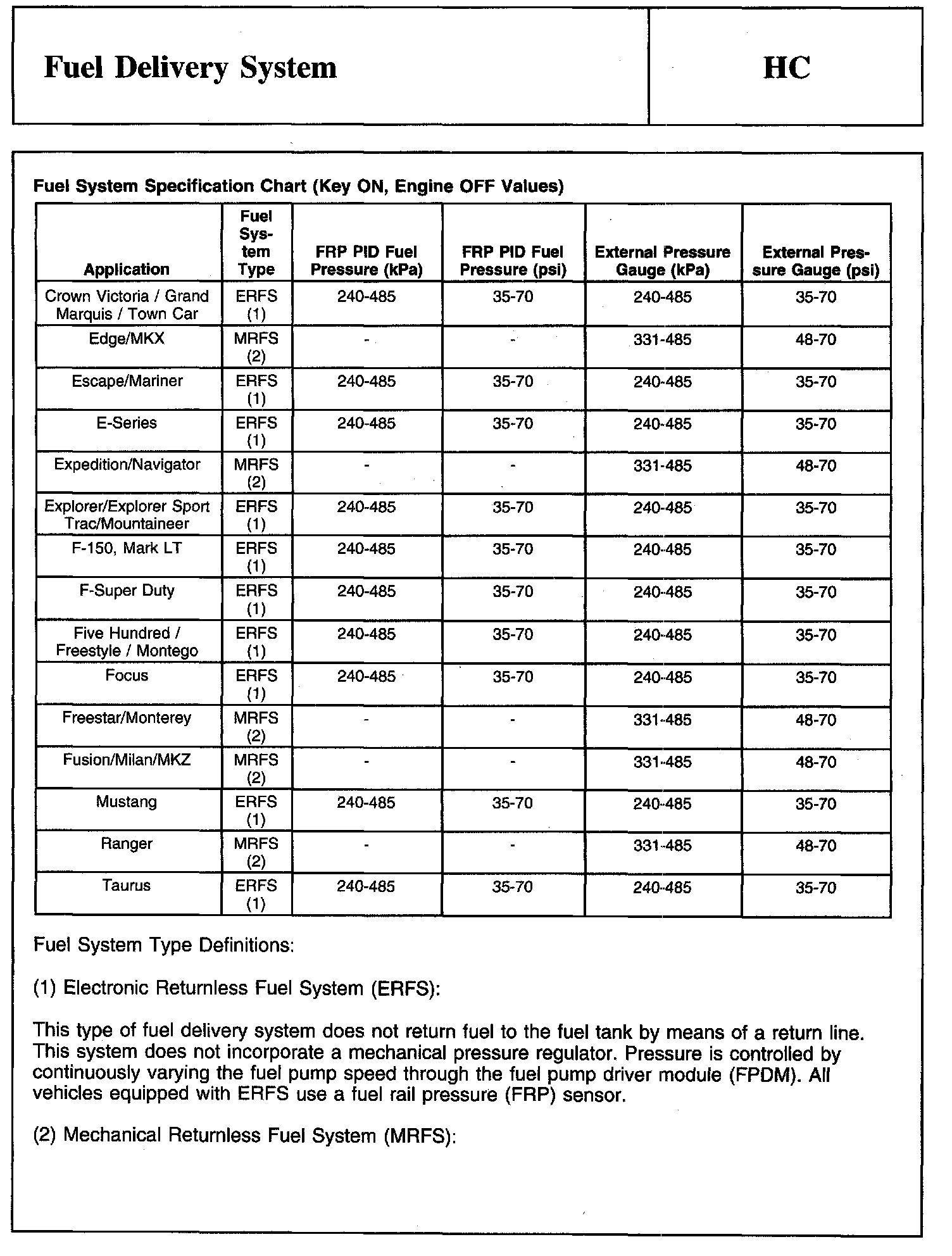

Fuel System Specification Chart:

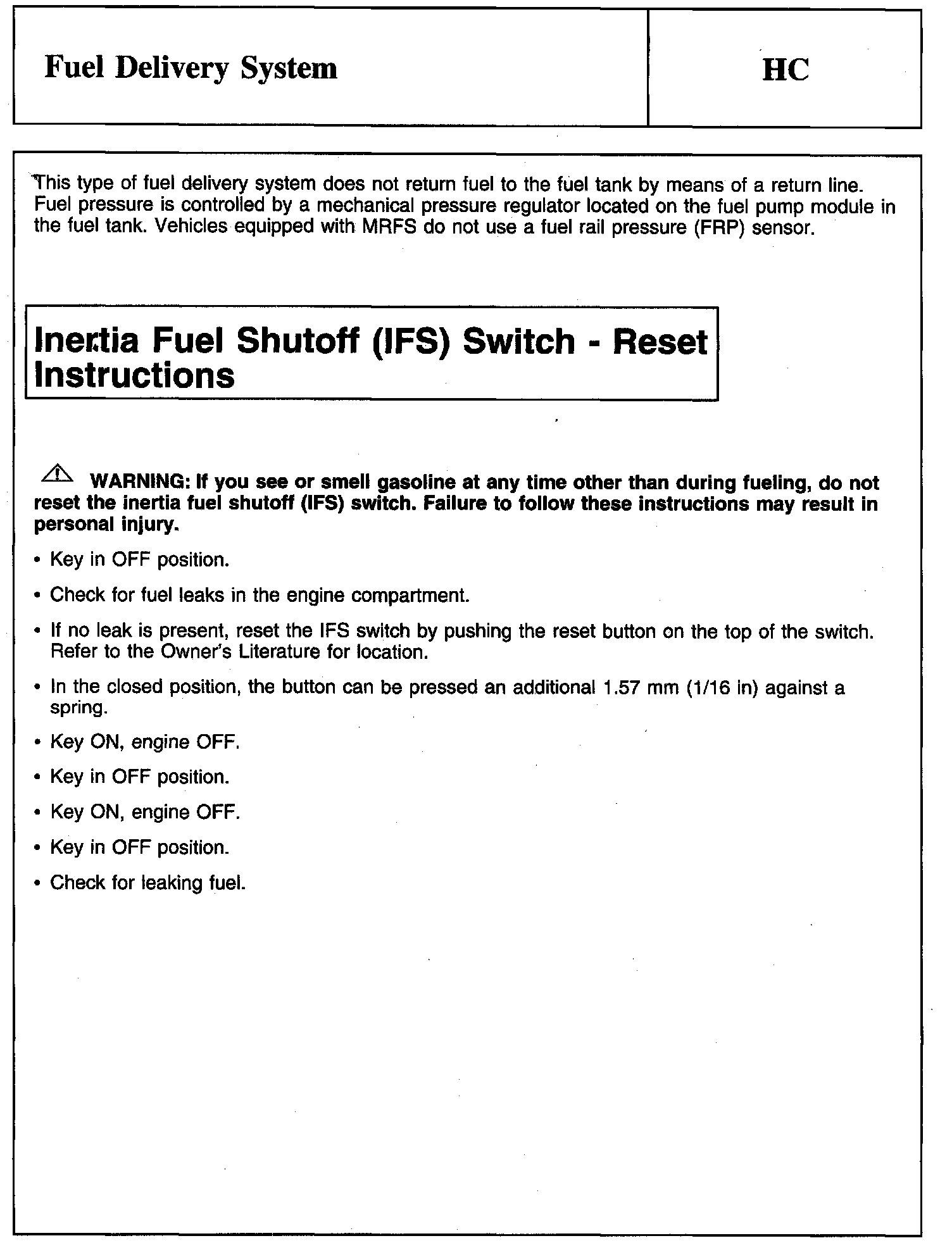

Inertia Fuel Shutoff (IFS) Switch - Reset Instructions:

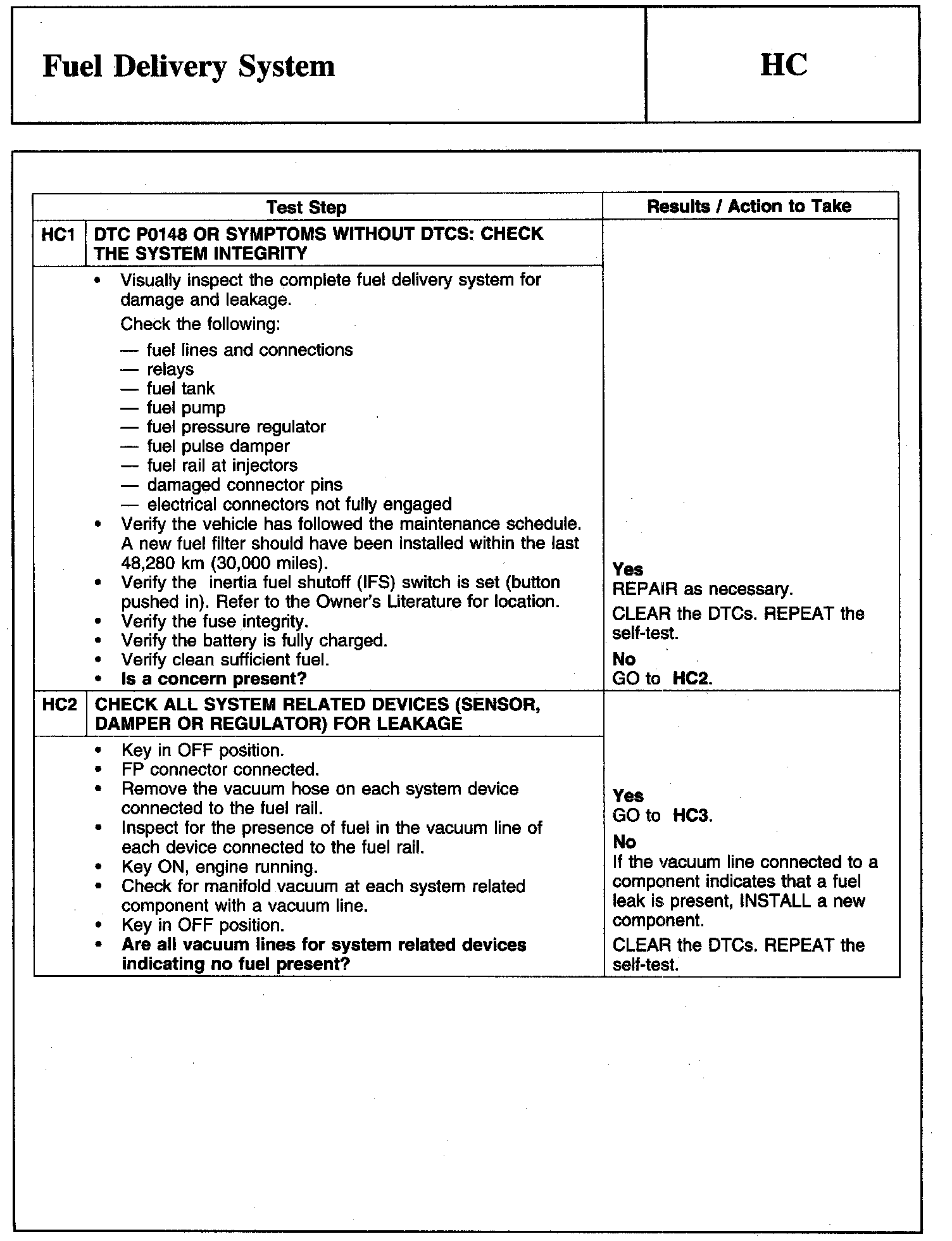

HC1-HC2:

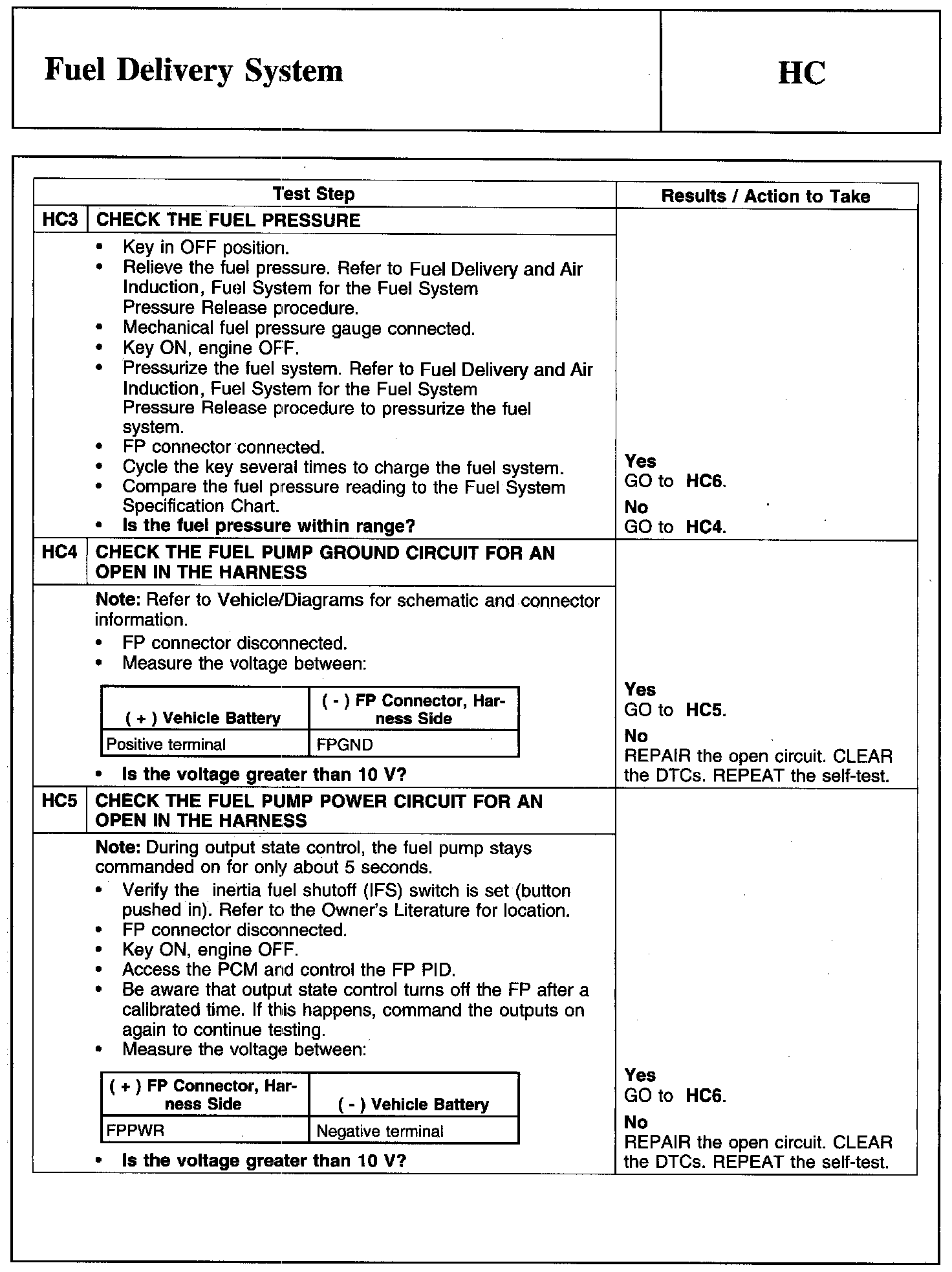

HC3-HC5:

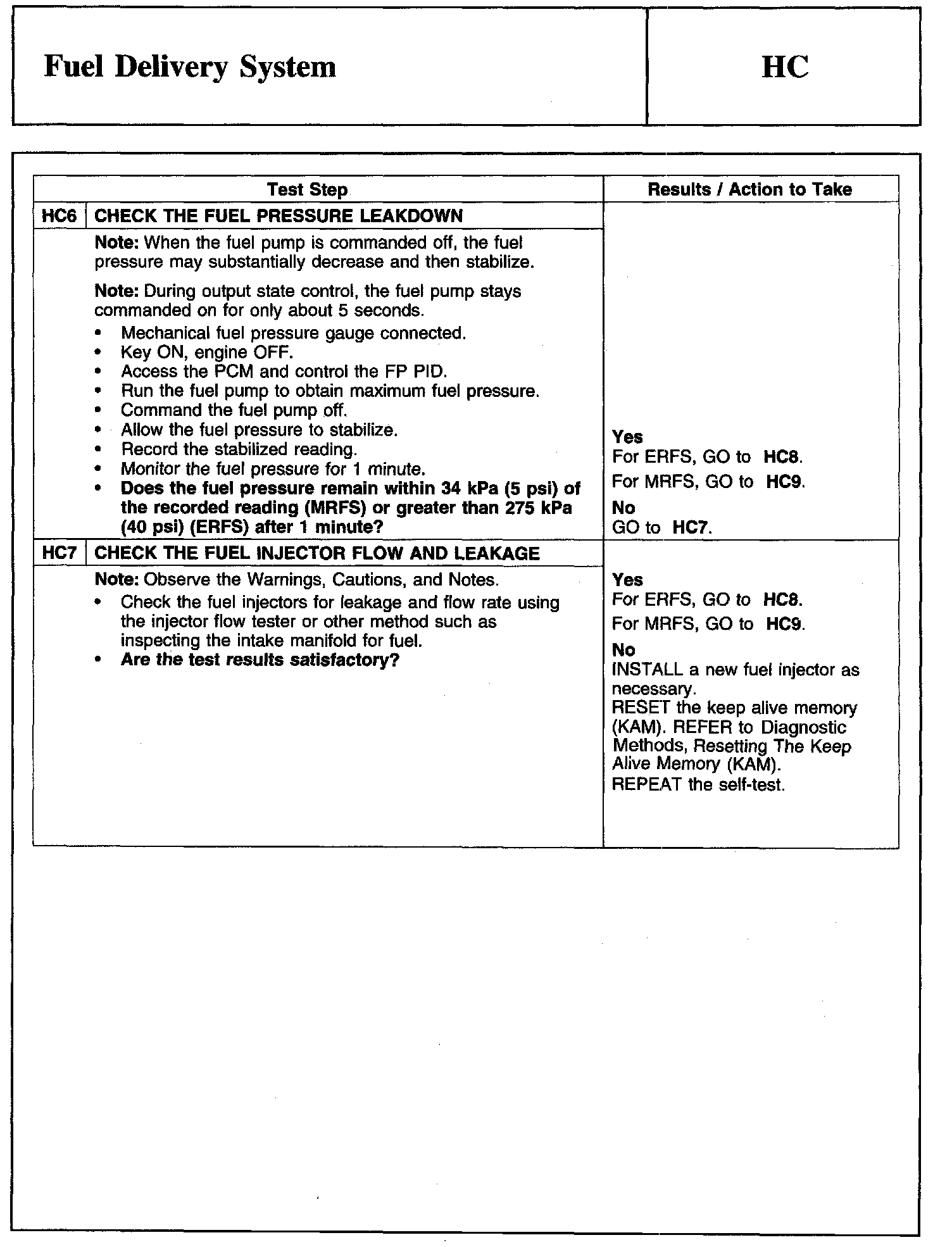

HC6-HC7:

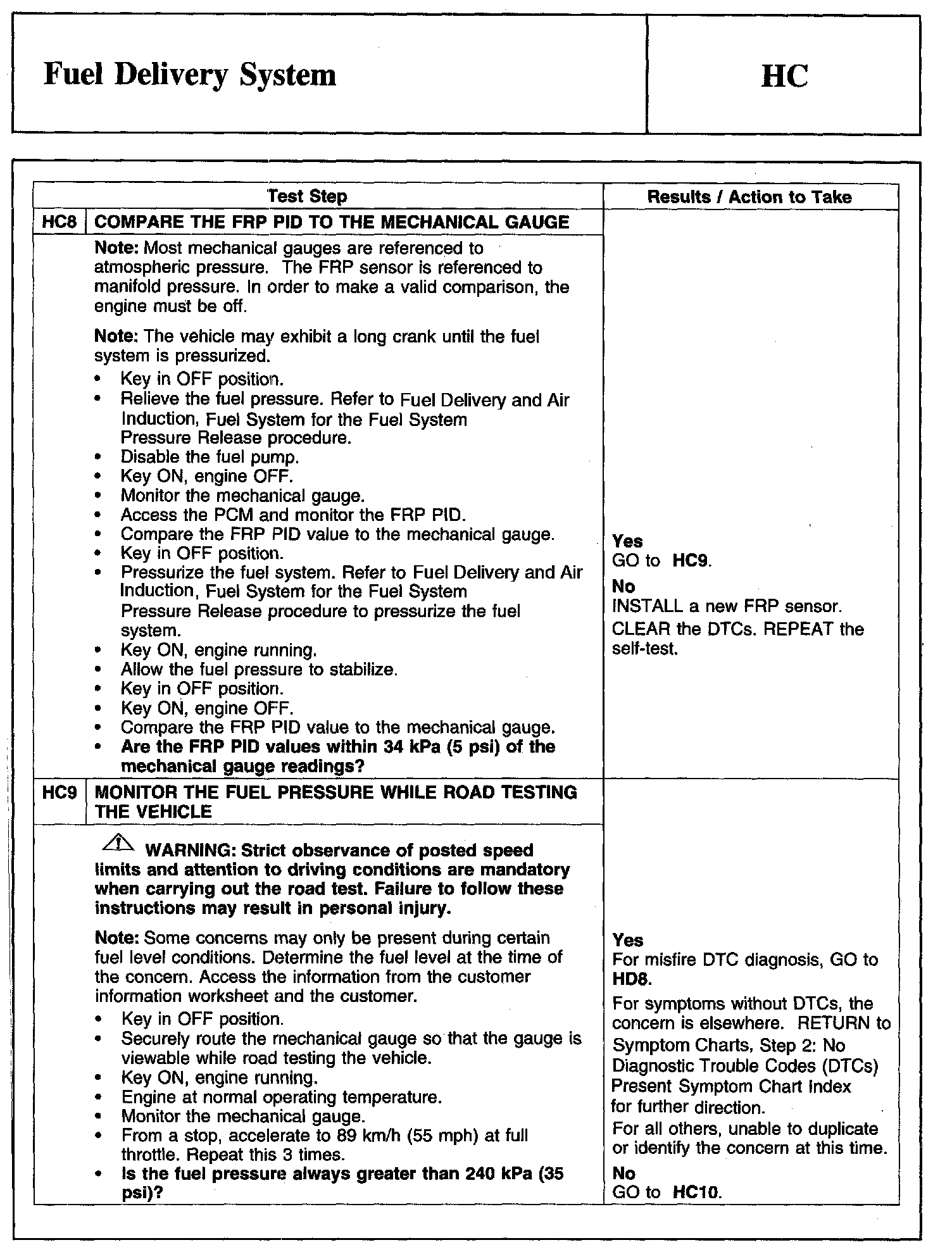

HC8-HC9:

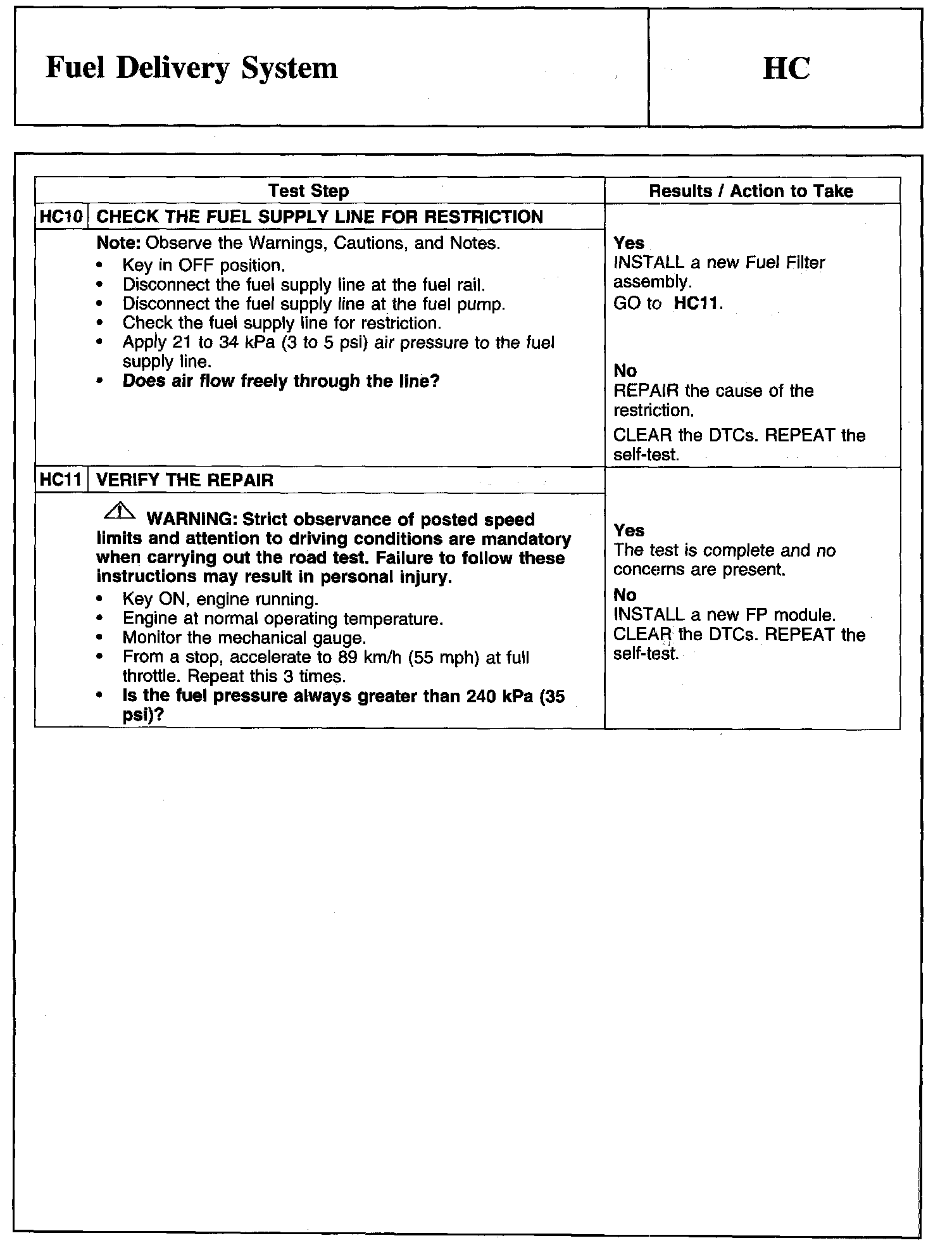

HC10-HC11:
