Alternator: Service and Repair

GENERATOR







Removal and Installation

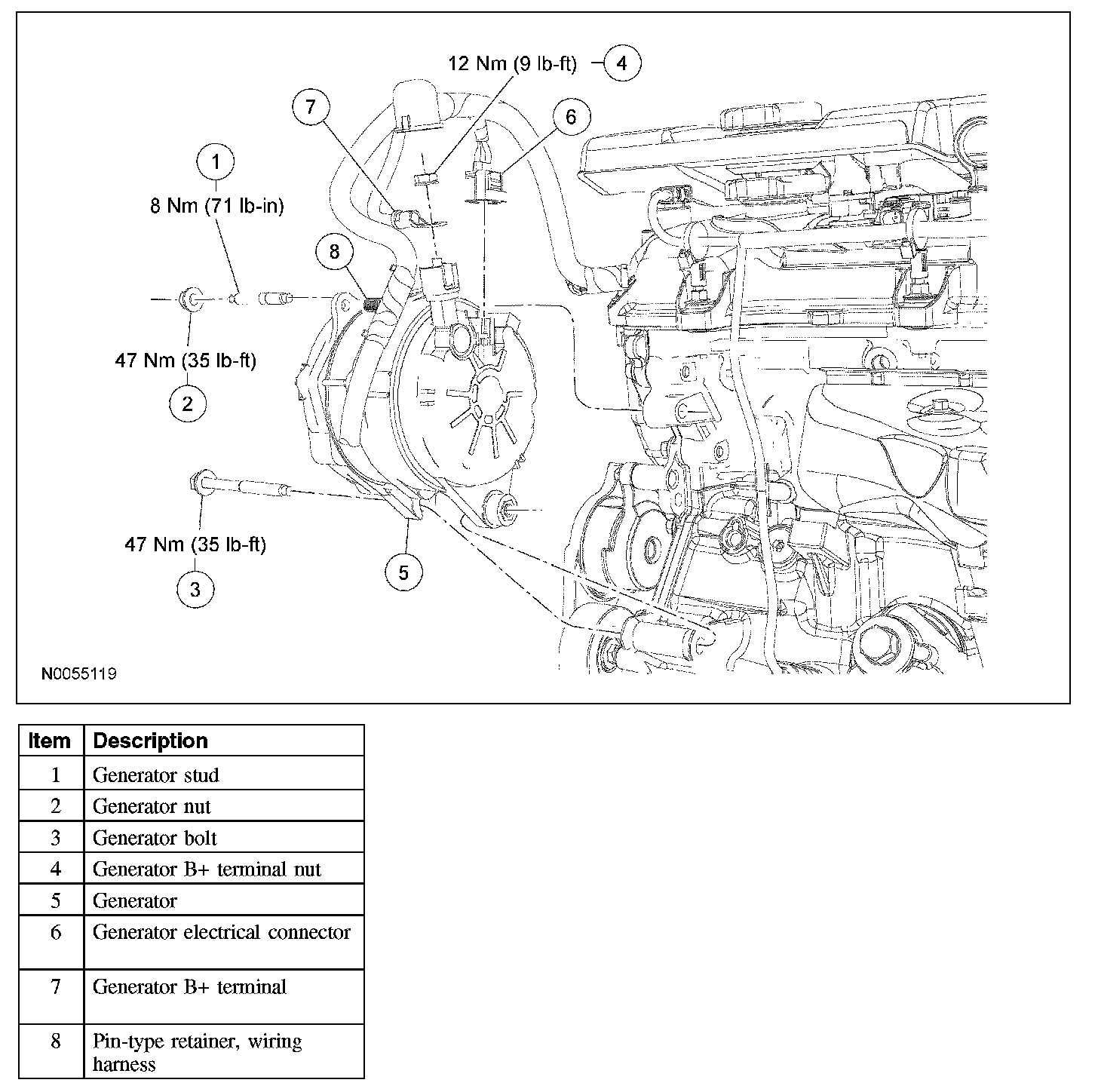

1. Disconnect the battery.
2. Remove the cooling fan.
3. Rotate the accessory drive belt tensioner counterclockwise and position the accessory drive belt aside.
4. Position the generator protective cover aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

5. Disconnect the generator electrical connector.
- Detach the pin-type retainer and wiring harness.

6. Remove the generator stud nut.
- To install, tighten to 47 Nm (35 lb-ft).

7. Remove the generator stud.
- To install, tighten to 8 Nm (71 lb-in).

8. Remove the generator bolt and the generator.
9. To install, reverse the removal procedure.
