Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

Removal and Installation

Edge only
1. Pull the switch bezel straight up to unclip it from the door trim panel.

MKX only







2. NOTE: LH front shown, all others similar.

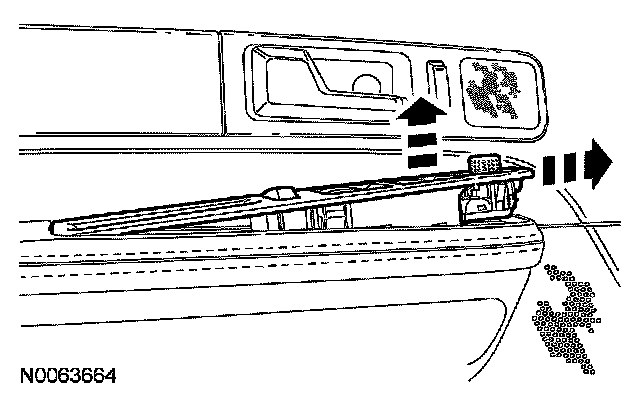

Pull up on the front edge of the switch bezel and pull forward to unhook it from the door trim panel.

All vehicles
3. Disconnect the electrical connector(s).
4. Unclip the window control switch from the switch bezel.
5. To install, reverse the removal procedure.
