4X4 Control Module: Notes

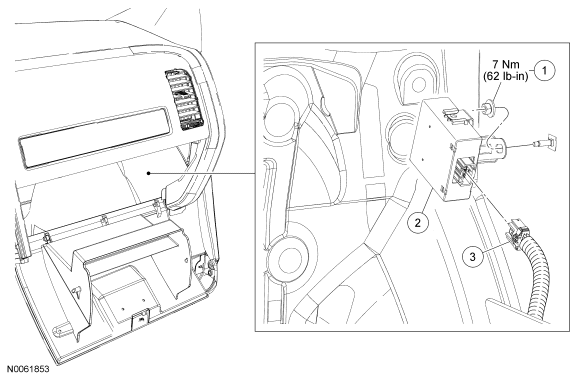

Fig 1: Exploded View Of 4X4 Control Module With Torque Specification
GF0032014Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621906- S424 4X4 control module nut
2 7E453 4X4 control module and bracket
3 - Electrical connector (part of 14A005)
