Exhaust Manifold - LH: Notes

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-

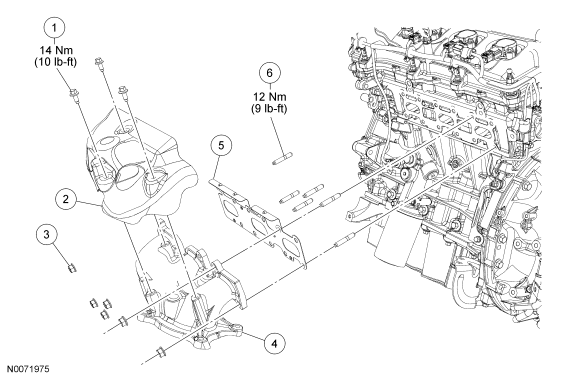

Fig 1: Exploded View Of Exhaust Manifold - LH With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713299	LH exhaust manifold heat shield bolt (3 required)
2	9Y427	LH exhaust manifold heat shield
3	W701706	LH exhaust manifold nut (6 required)
4	9431	LH exhaust manifold
5	9448	LH exhaust manifold gasket
6	W701732	LH exhaust manifold stud (6 required)
