Oil Cooler: Notes

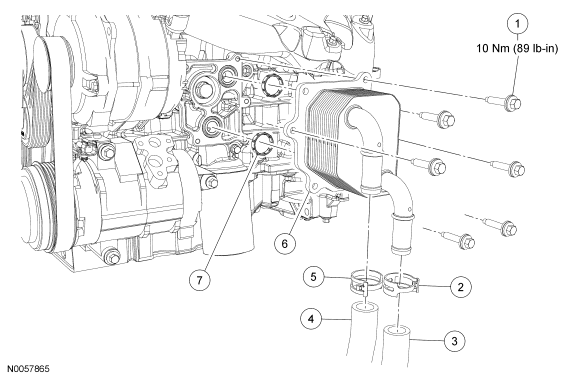

Fig 1: Exploded View Of Oil Cooler With Torque Specification
GF0031372Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W503277 Oil cooler bolt (6 required)
2 15161 Coolant hose clamp
3 8N021 Coolant hose
4 8B274 Coolant hose
5 15161 Coolant hose clamp
6 6A642 Oil cooler
7 6A636 Oil cooler gasket (2 required)
