Power Steering Fluid Reservoir: Notes

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

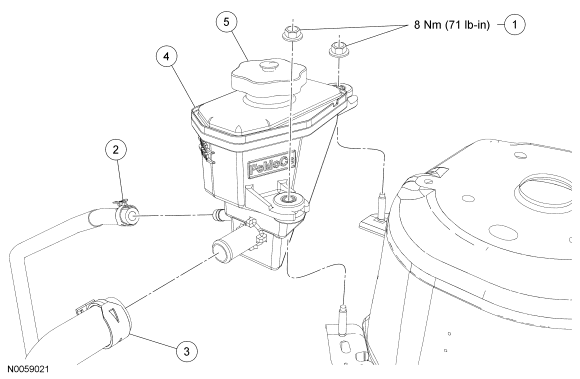

Fig 1: Exploded View Of Power Steering Fluid Reservoir With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707142	Power steering fluid reservoir nuts (2 required)
2	3A713B	Return hose
3	3E525	Power steering pump supply hose
4	3R700	Power steering fluid reservoir
5	3A006	Power steering fluid reservoir cap
