Steering Gear: Notes
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

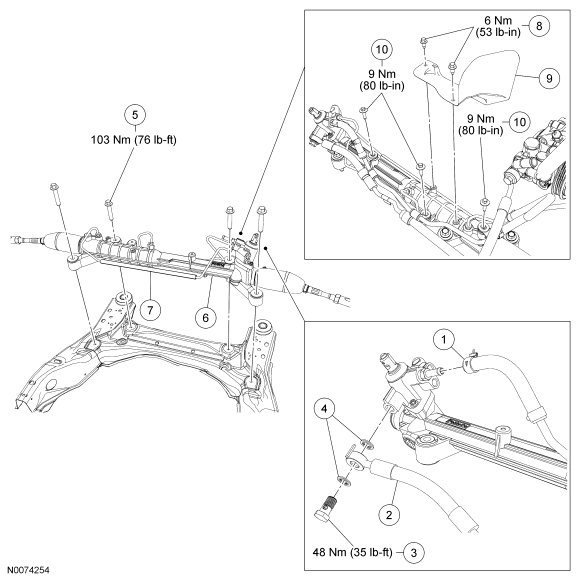

| Item | Part Number | Description |
|---|---|---|
| 1 | 3C750 | Return hose clamp (also part of kit 3A719) |
| 2 | 3A719 | Pressure line kit |
| 3 | 3N623 | Pressure line-to-steering gear banjo bolt (also part of kit 3A719) |
| 4 | 3N626 | Pressure line seals (2 required) (also part of kit 3A719) |
| 5 | W713071 | Steering gear mounting bolt (4 required) |
| 6 | 3504 | Steering gear |
| 7 | 3C569 | Steering gear turn tube heat wrap |
| 8 | W500210 | Steering gear heat shield bolts (2 required) |
| 9 | 3F570 | Steering gear heat shield |
| 10 | W711787 | Pressure line bracket-to-steering gear bolts (3 required) |
