Differential Gear Assembly: Assembly

    NOTE: FWD shown, AWD similar.
  1. Using the special tools and a press, install new differential carrier bearings on the differential assembly.

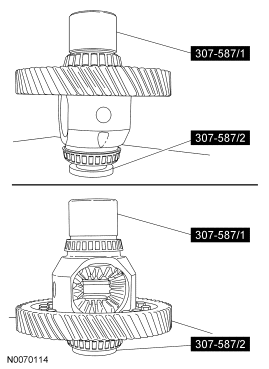

    2. Fig 1: Installing Transfer Shaft Bearings On Transfer Shaft Assembly Using Special Tools (307-587/1, 307-587/2)
    GF0031799Courtesy of FORD MOTOR CO.
