Transfer Shaft and Gear: Assembly

  1. Install the park pawl wheel on the transfer shaft.
    2. Fig 1: Installing Park Pawl Wheel On Transfer Shaft
    GF0031793Courtesy of FORD MOTOR CO.
  2. Using the special tools and a press, install new transfer shaft bearings on the transfer shaft assembly.

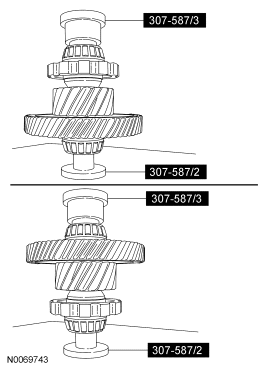

    3. Fig 2: Installing Transfer Shaft Bearings On Transfer Shaft Assembly Using Special Tools (307-587/1, 307-587/2)
    GF0031794Courtesy of FORD MOTOR CO.
