Audio Control Module Connector

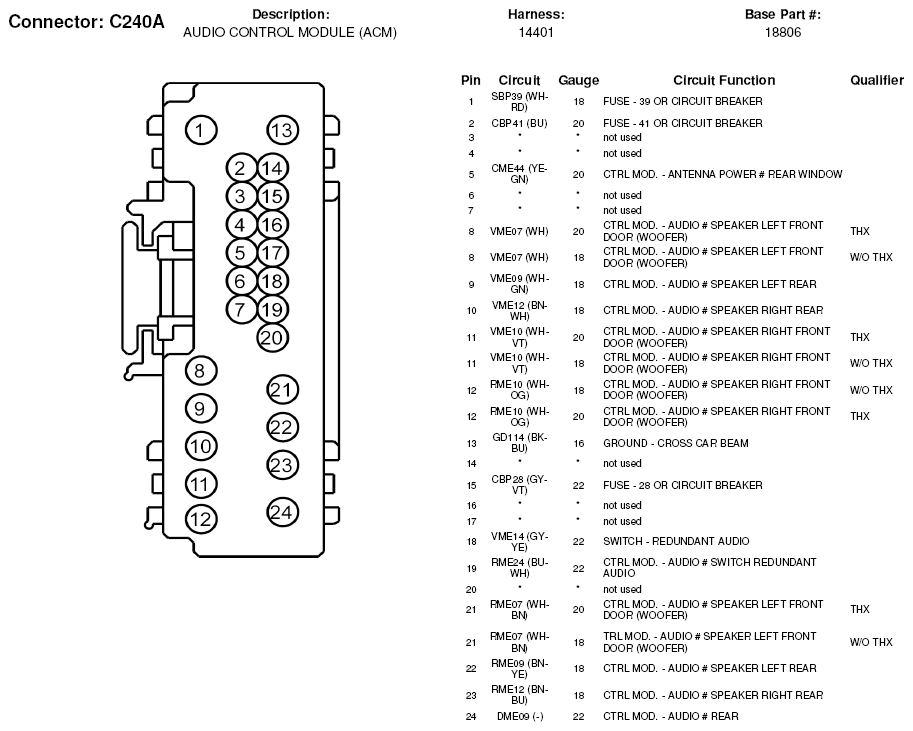

Fig 1: Audio Control Module Connector End View (C240A)
G05182576Courtesy of FORD MOTOR CO.

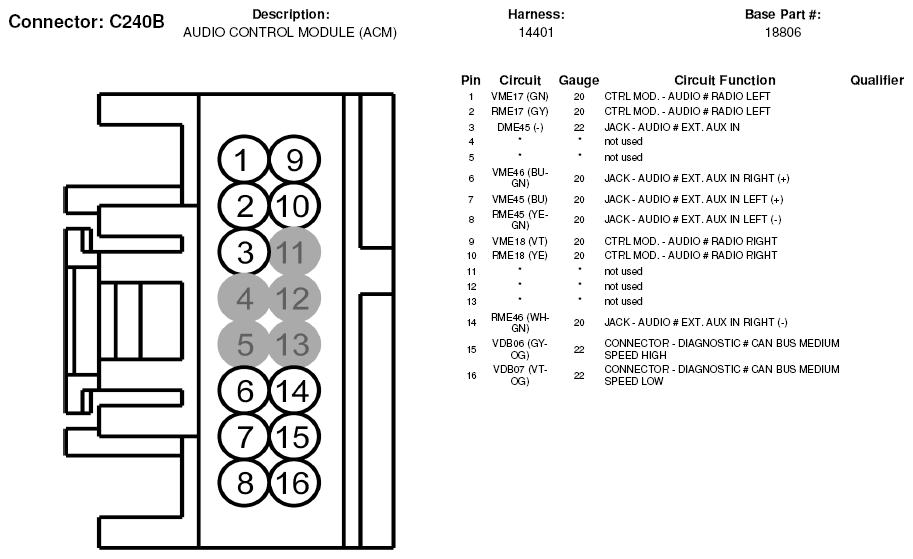

Fig 2: Audio Control Module Connector End View (C240B)
G05182577Courtesy of FORD MOTOR CO.

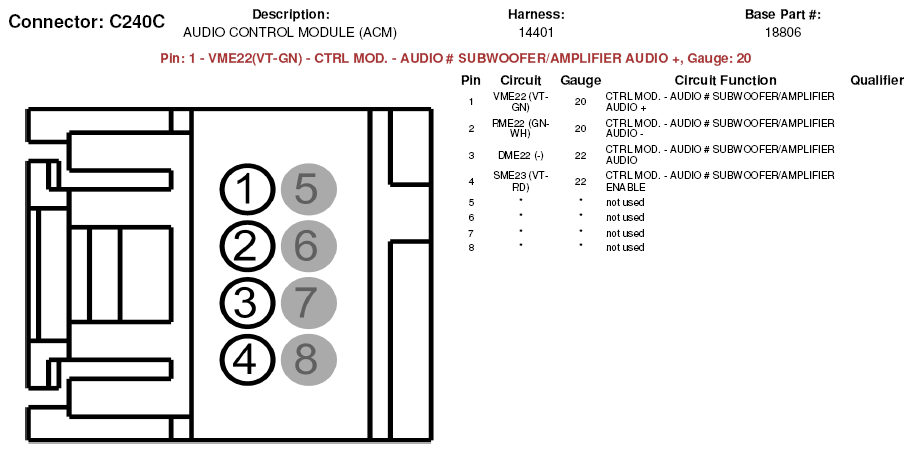

Fig 3: Audio Control Module Connector End View (C240C)
G05182578Courtesy of FORD MOTOR CO.
