Removal And Installation

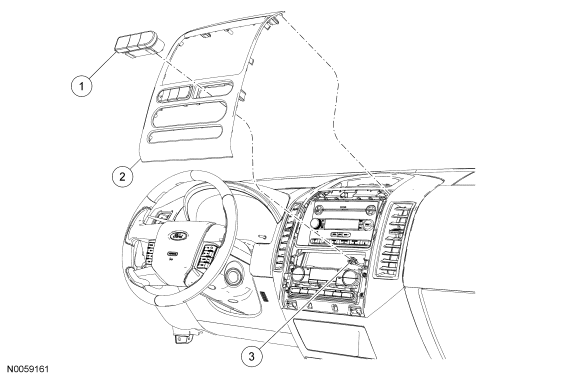

Fig 1: Exploded View Of Stability/Traction Control Switch
GF0031575Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13350 Stability/traction control switch
2 78044D70 Instrument panel center finish panel
3 - Stability/traction control switch electrical connector (part of 14401)
  1. Position the instrument panel center finish panel away from the instrument panel.
  2. Disconnect the stability/traction control switch electrical connector.
  3. Depress the 4 tabs and remove the stability/traction control switch from the instrument panel center finish panel.
    4. Fig 2: Depressing Tabs & Removing Stability/Traction Control Switch From Instrument Panel Center Finish Panel
    GF0031576Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
