Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH shown, LH similar.

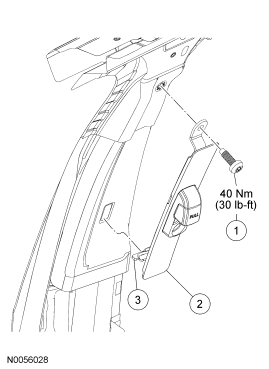

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specification
GF0031159Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt shoulder height adjuster bolt (part of 602B82)
2 602B82 Safety belt shoulder height adjuster
3 - Safety belt shoulder height adjuster T-tab (part of 602B82)
