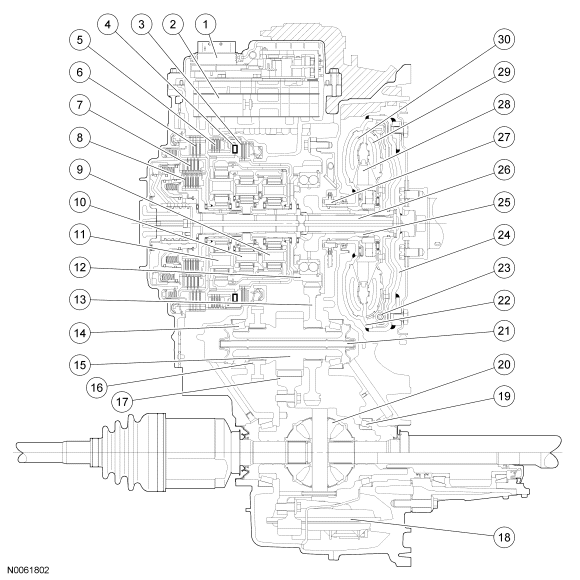

| 1 |
7Z490 |
Solenoid body |
| 2 |
7A100 |
Valve body |
| 3 |
- |
Forward clutch (clutch brake 1, 2, 3, 4) |
| 4 |
7H253 |
Low one-way clutch |
| 5 |
- |
Low/reverse clutch (clutch brake low/reverse) |
| 6 |
- |
Intermediate clutch (clutch brake 2, 6) |
| 7 |
- |
Direct clutch (drive clutch 3, 5, R) |
| 8 |
- |
Overdrive clutch (drive clutch 4, 5, 6) |
| 9 |
7N473 |
Front planetary assembly |
| 10 |
7L192 |
Center planetary assembly |
| 11 |
7D491 |
Rear planetary assembly |
| 12 |
7F342 |
Differential transfer drive gear |
| 13 |
7H349 |
Differential transfer driven gear |
| 14 |
7170 |
Transfer shaft roller bearing and cup |
| 15 |
7H346 |
Differential drive pinion gear |
| 16 |
7A233 |
Park gear |
| 17 |
7F343 |
Differential ring gear |
| 18 |
7K172 |
Fluid filter |
| 19 |
4242 |
Differential roller bearing and cup |
| 20 |
4207 |
Differential carrier gear and case assembly |
| 21 |
7A208 |
Differential lube tube |
| 22 |
7902 |
Torque converter |
| 23 |
- |
Torque converter clutch (part of 7902) |
| 24 |
- |
Torque converter cover (part of 7902) |
| 25 |
7F363 |
Support assembly (converter reactor) |
| 26 |
7J251 |
Turbine/input shaft |
| 27 |
7J263 |
Chain and sprocket pump drive |
| 28 |
- |
Reactor (part of 7902) |
| 29 |
- |
Turbine (part of 7902) |
| 30 |
- |
Impeller (part of 7902) |
