Keyless Entry Transmitter: Service and Repair
LIFTGATE LATCH REMOTE CONTROLRemoval and Installation
1. Remove the liftgate trim panel.

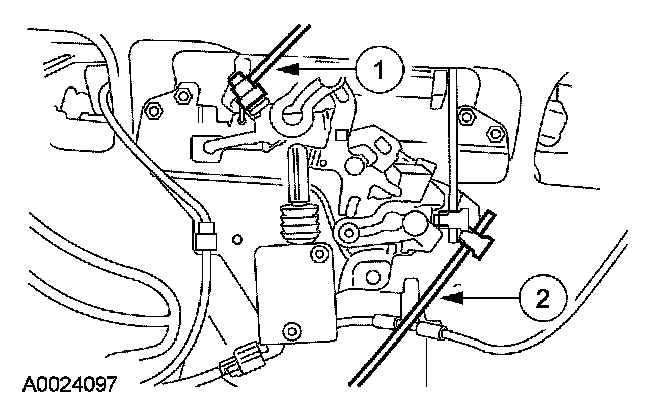

2. Disconnect the liftgate latch remote control actuating rods.
1 Open the clip and disconnect the liftgate window latch actuating rod.
2 Open the clip and disconnect the liftgate latch actuating rod.

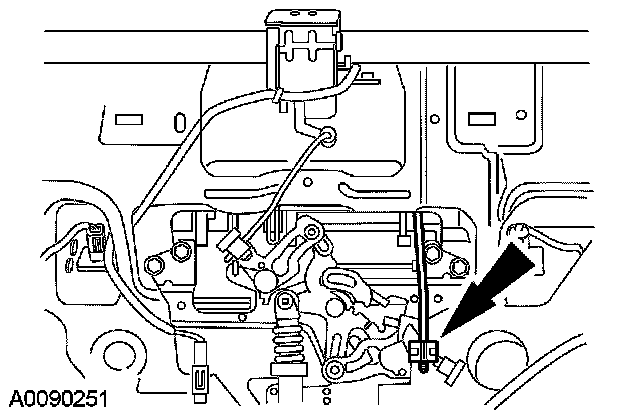

3. Open the clip and disconnect the liftgate handle actuating rod.

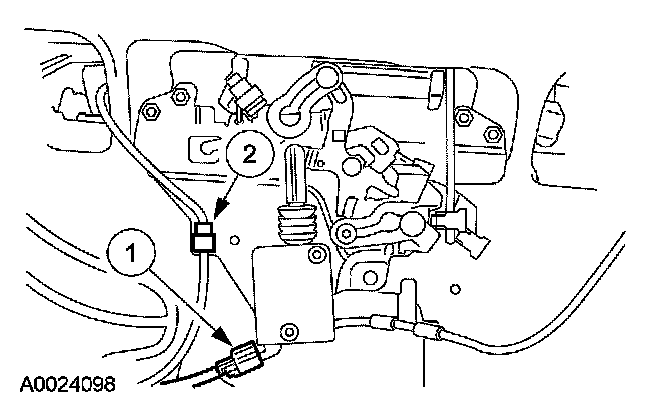

4. Disconnect the electrical connectors.
1 If equipped, disconnect the liftgate latch actuator electrical connector.
2 Release the liftgate window latch ajar switch wiring harness locator.

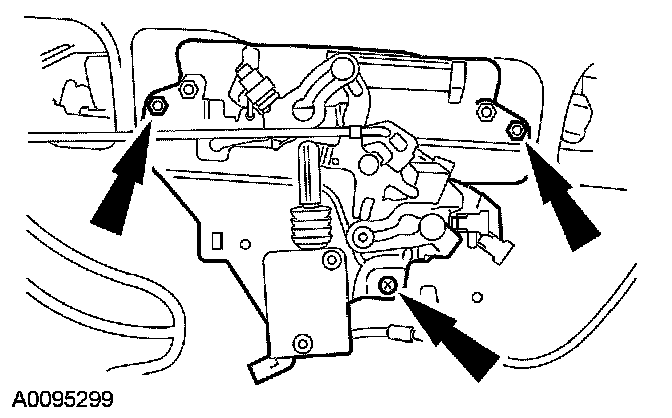

5. Remove the screw, the 2 nuts and the liftgate latch remote control assembly.
- To install, tighten the nuts to 5 Nm (44 lb-in).
- To install, tighten the screw to 3 Nm (27 lb-in).
6. To install, reverse the removal procedure.
- Transfer all necessary components.
