Test G: Flash Code 2 - Stoplamp Switch Circuit Failure

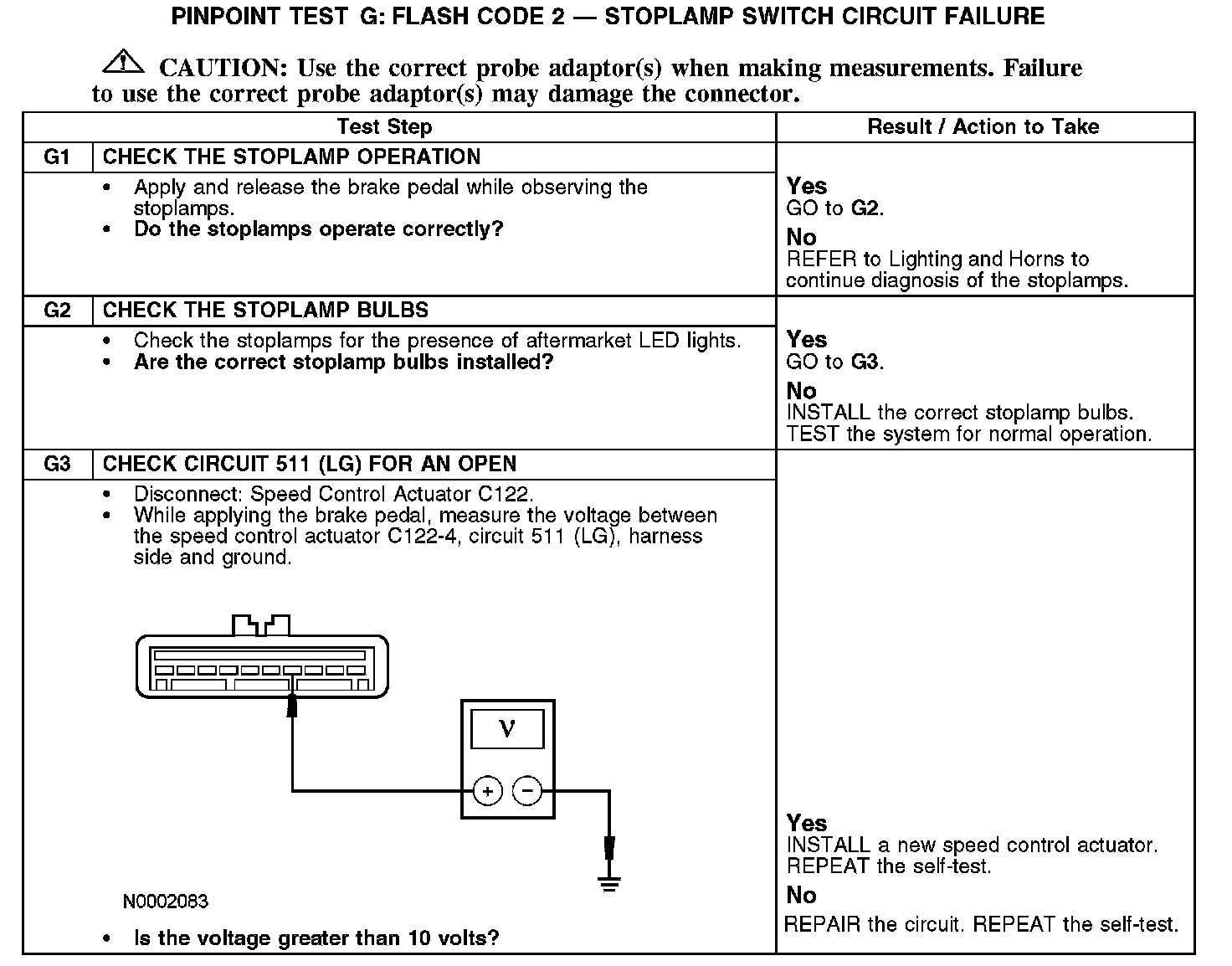

PINPOINT TEST G: FLASH CODE 2 - STOPLAMP SWITCH CIRCUIT FAILURE

G1-G3:

Normal Operation
When the speed control actuator carries out the self-test, a voltage signal is sent through circuit 511 (LG). Circuit 511 (LG) carries the signal to the stoplamp bulbs, which then is routed to ground. If the signal fails to be grounded, flash code 2 is set by the speed control actuator.

Possible Causes
- Fuse
- Circuit 511 (LG) open
- Stoplamp bulbs
- Stoplamp switch
- Speed control actuator
