Clutch Hydraulic System

Clutch Controls - Exploded View

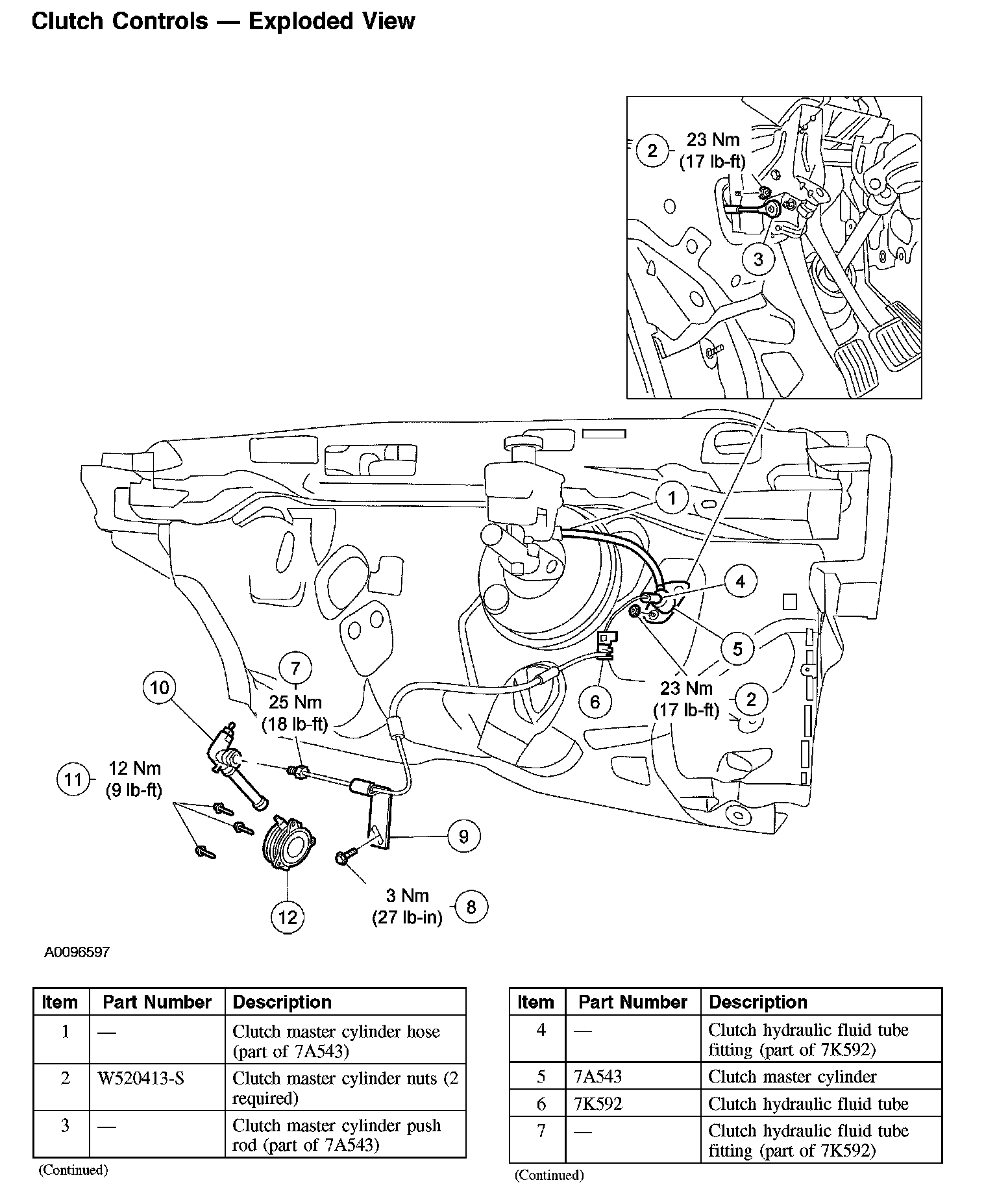

Clutch Controls - Exploded View (Part 1):

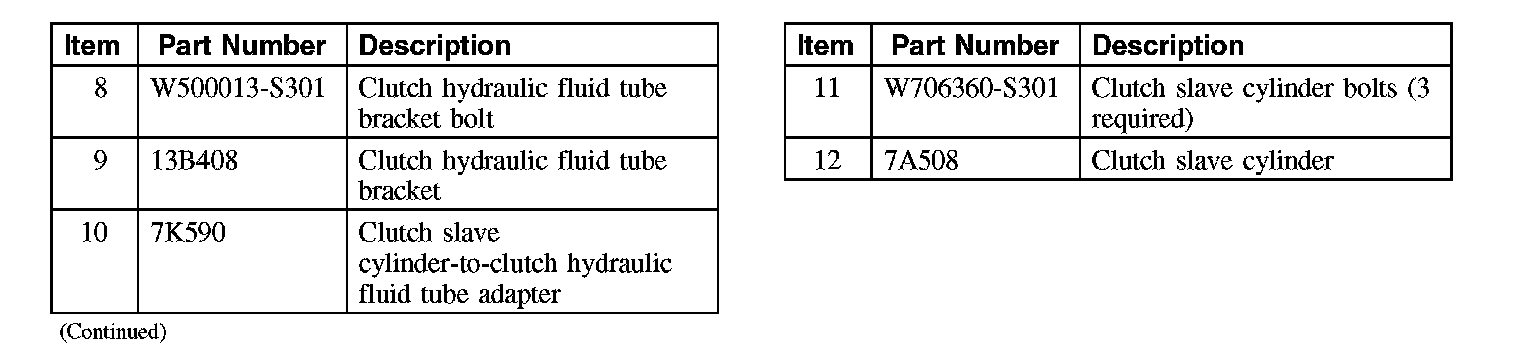

Clutch Controls - Exploded View (Part 2):





1. For further information, refer to the procedures.
