Trunk / Liftgate

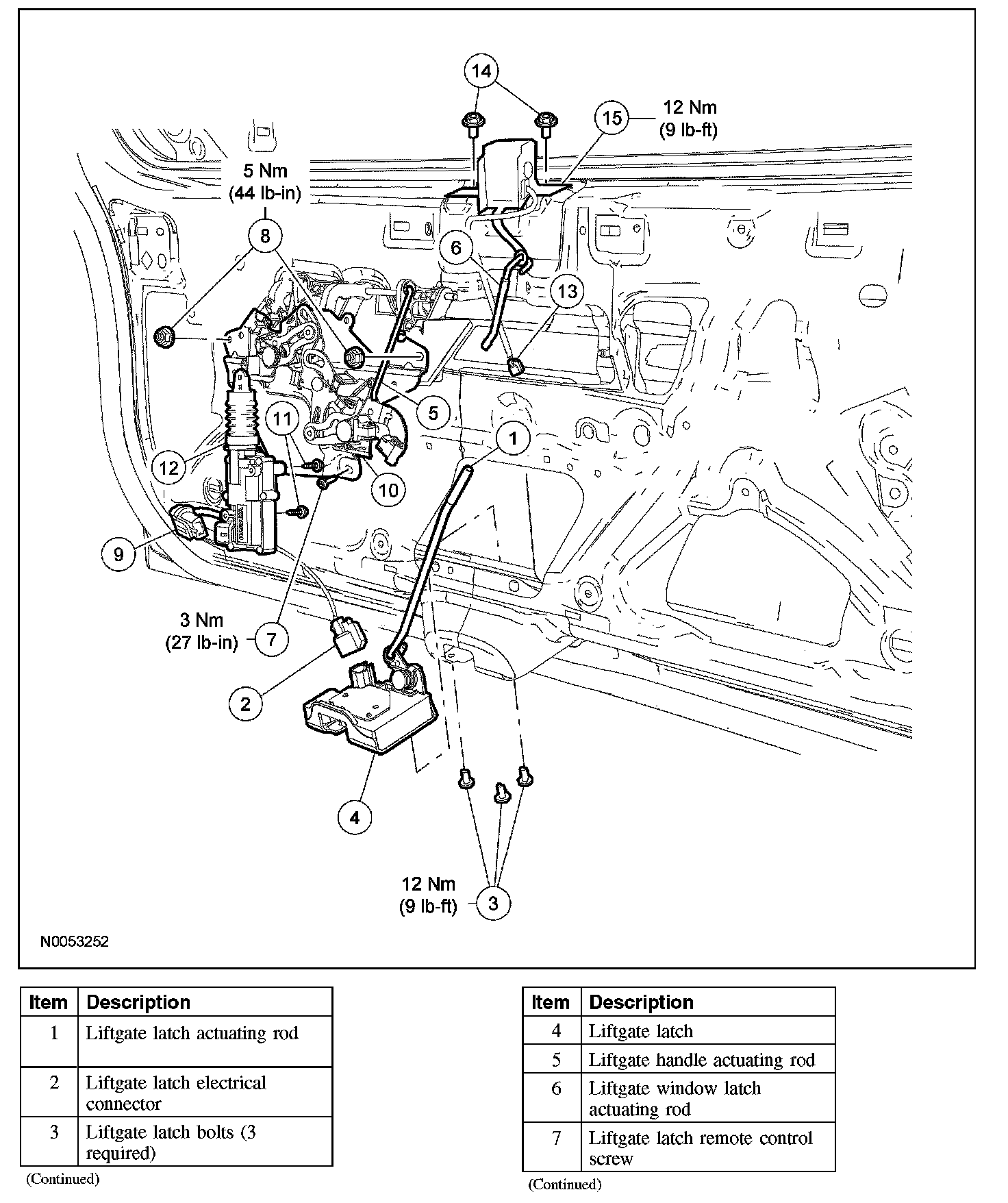

LIFTGATE HANDLE, LOCK AND LATCH - EXPLODED VIEW


Part 1:

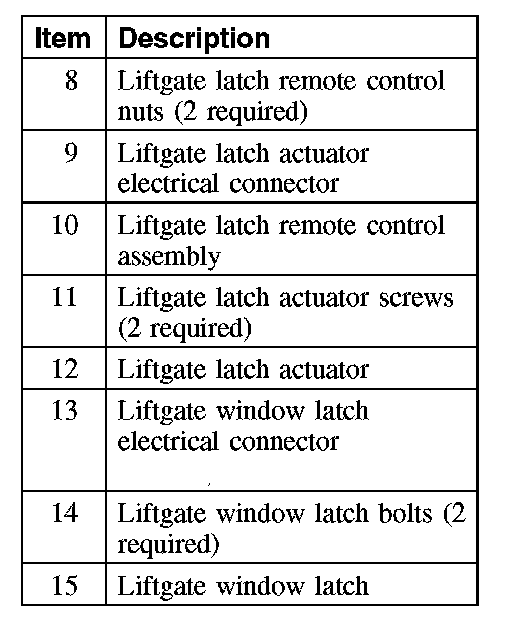

Part 2:






Removal and Installation
1. For additional information, refer to the procedures.
