Location Views

Part 1 Of 7:

Transmission Fluid Filter Location

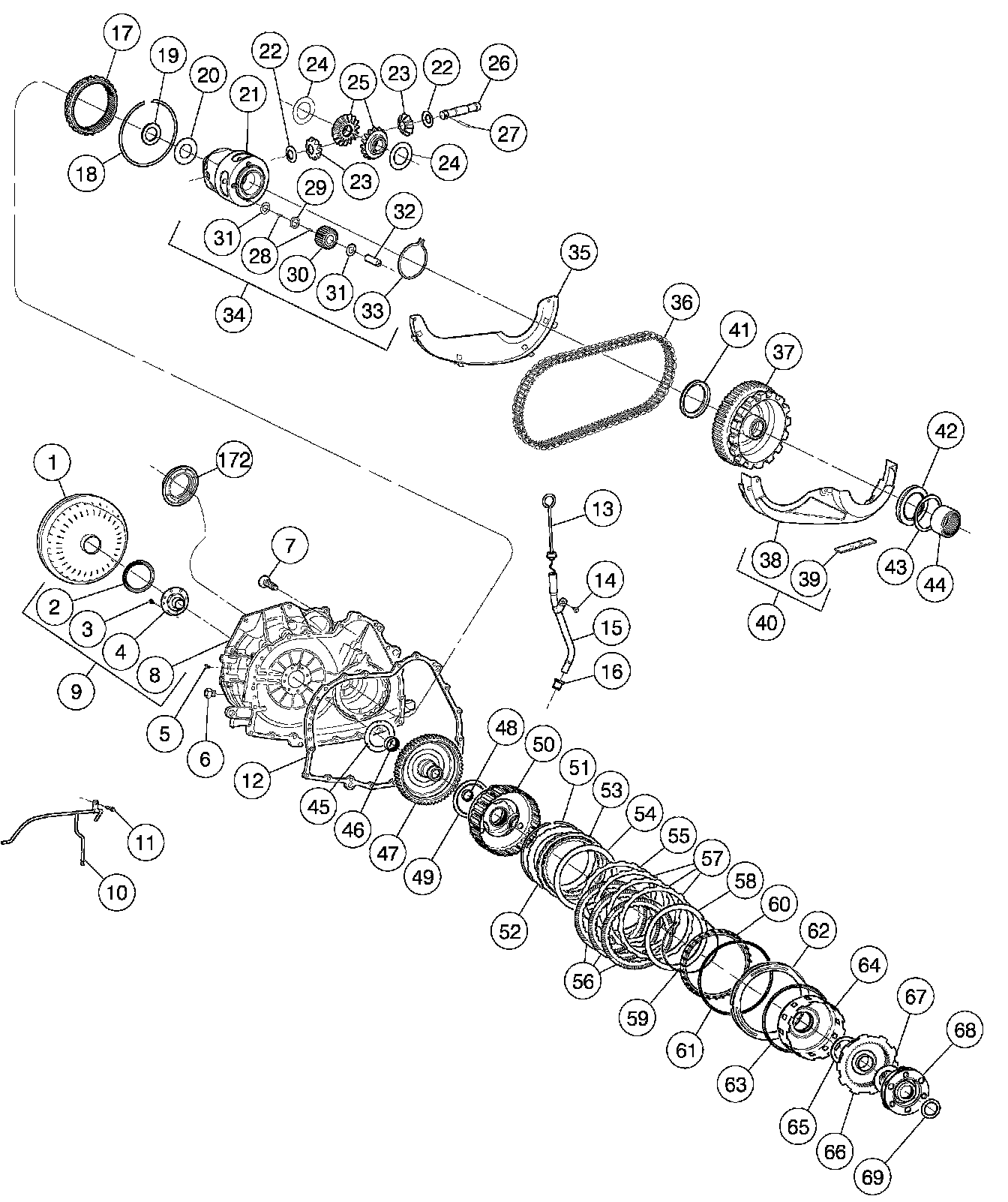

Filter is located at exploded view position number 8 internal. See Transmission Disassembly/Assembly.

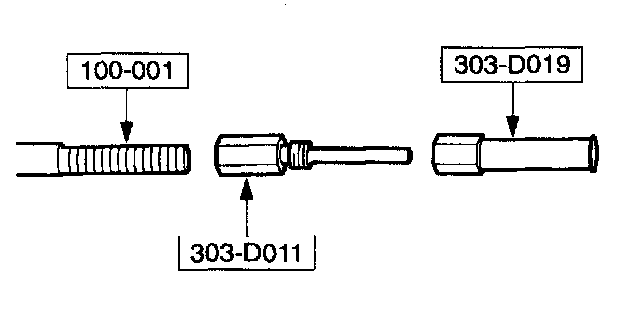

Special Tool

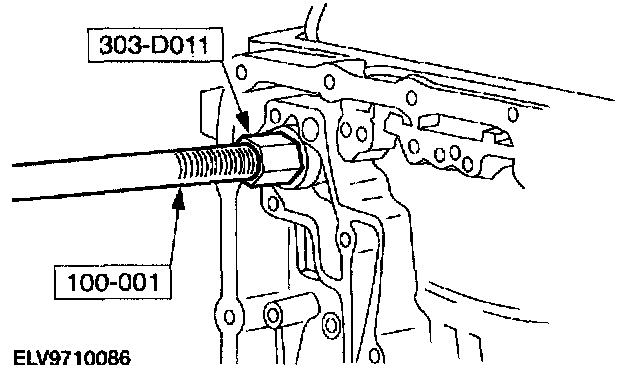

Seal Removal

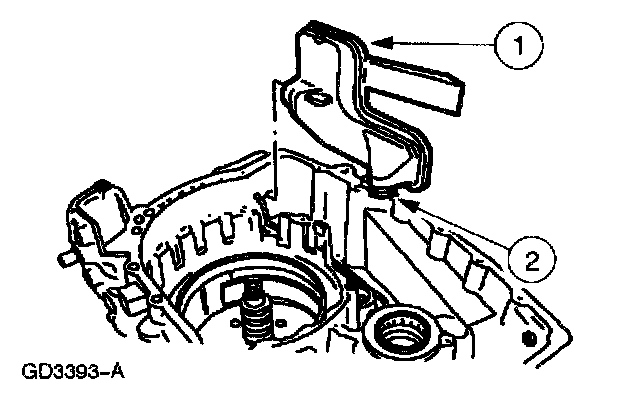

Transmission Filter
