Timing Components

Valve Train Components - Exploded View

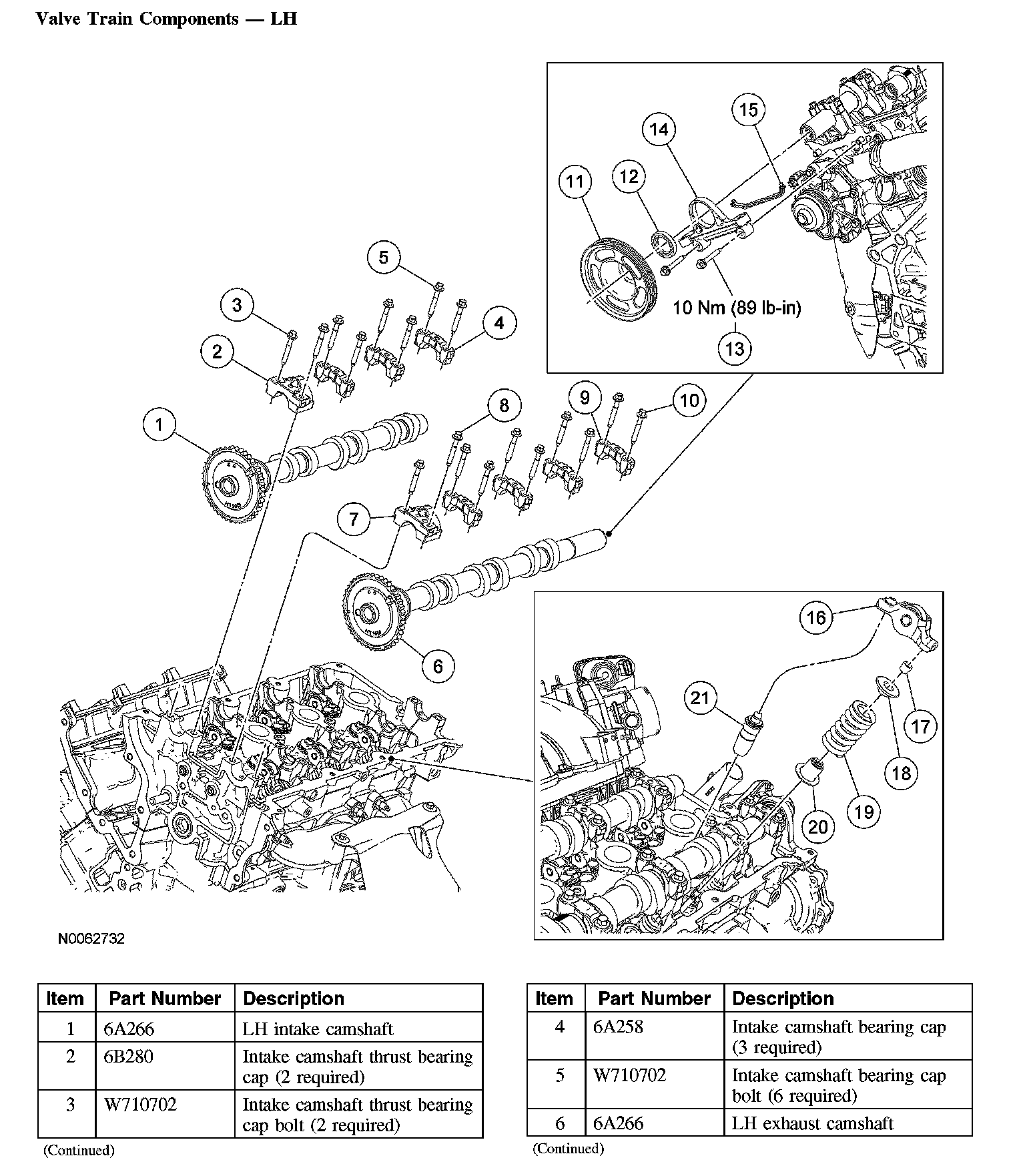

Valve Train Components - LH (Part 1):

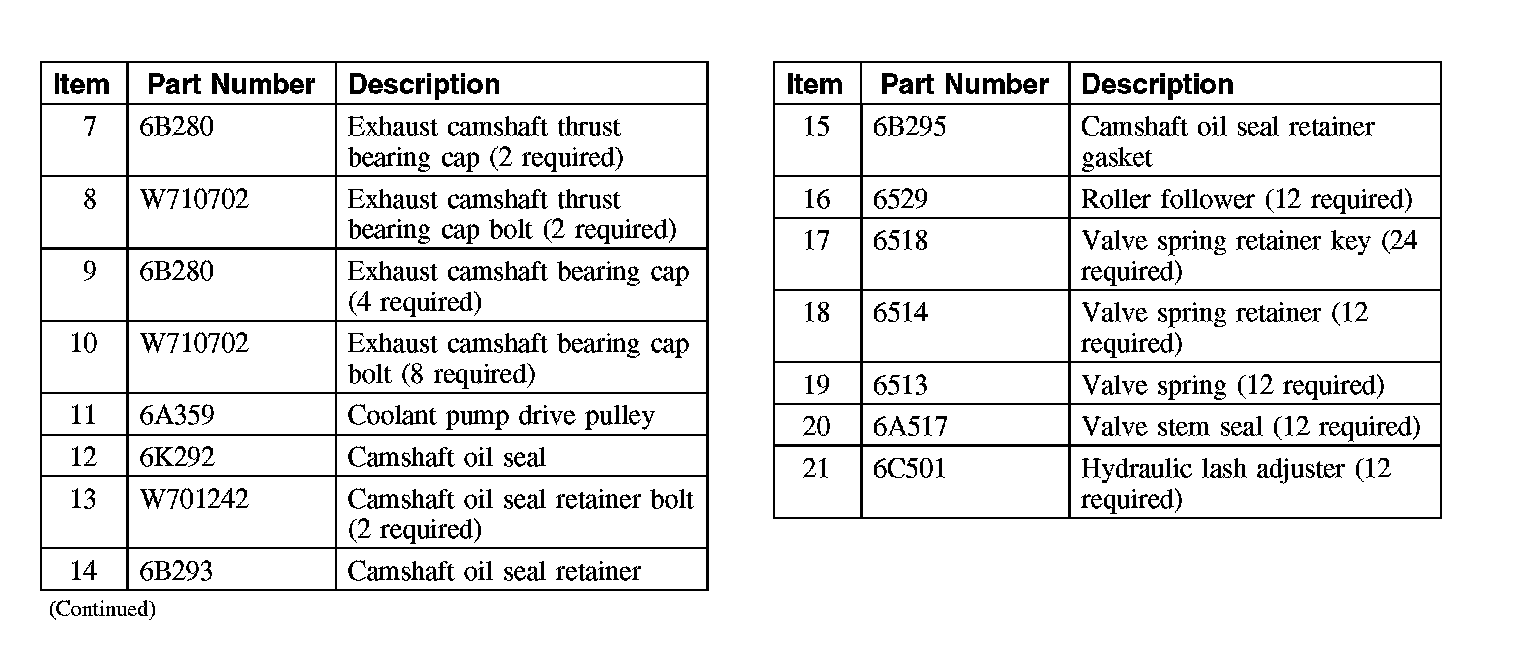

Valve Train Components - LH (Part 2):

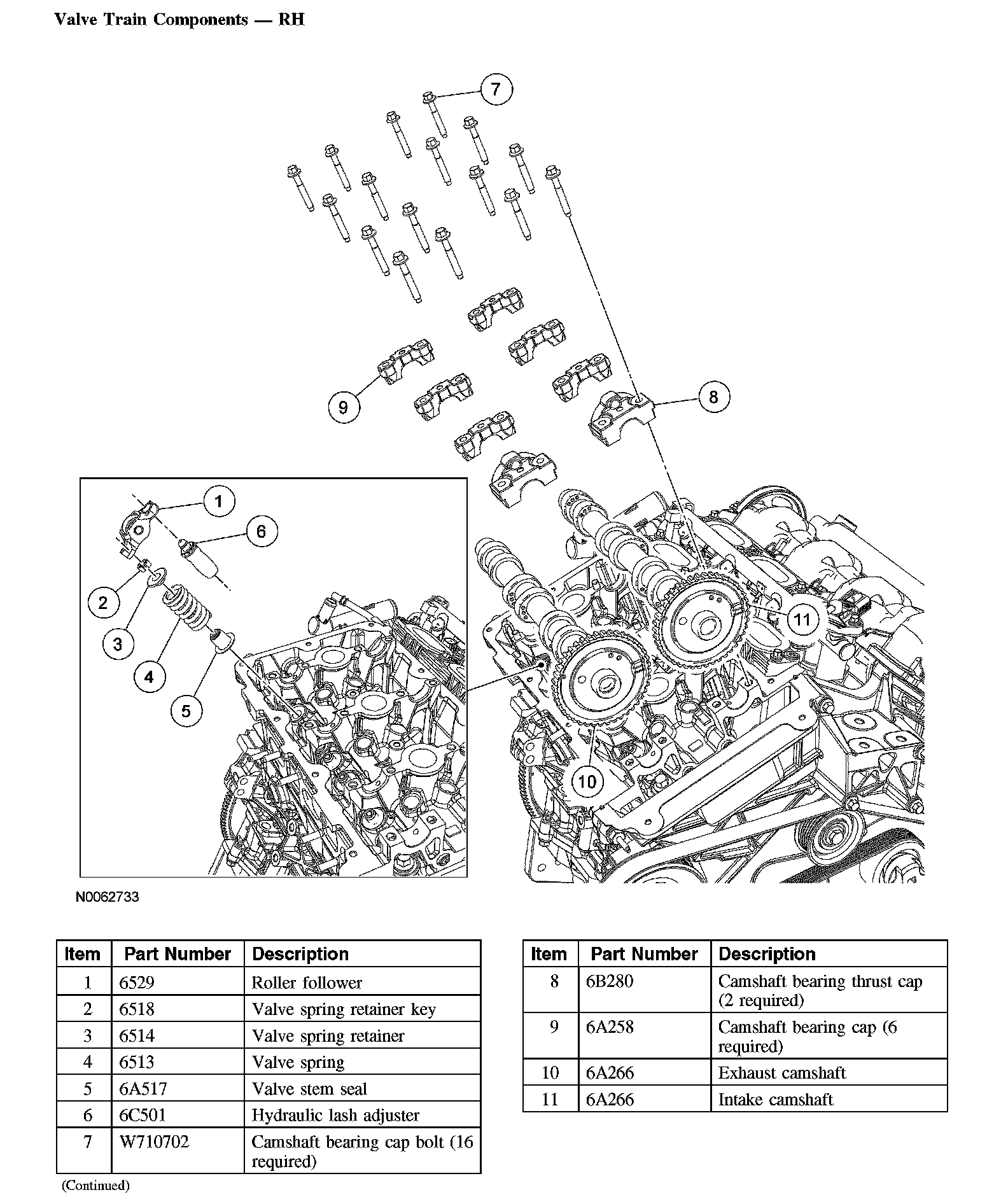

Valve Train Components - RH:
