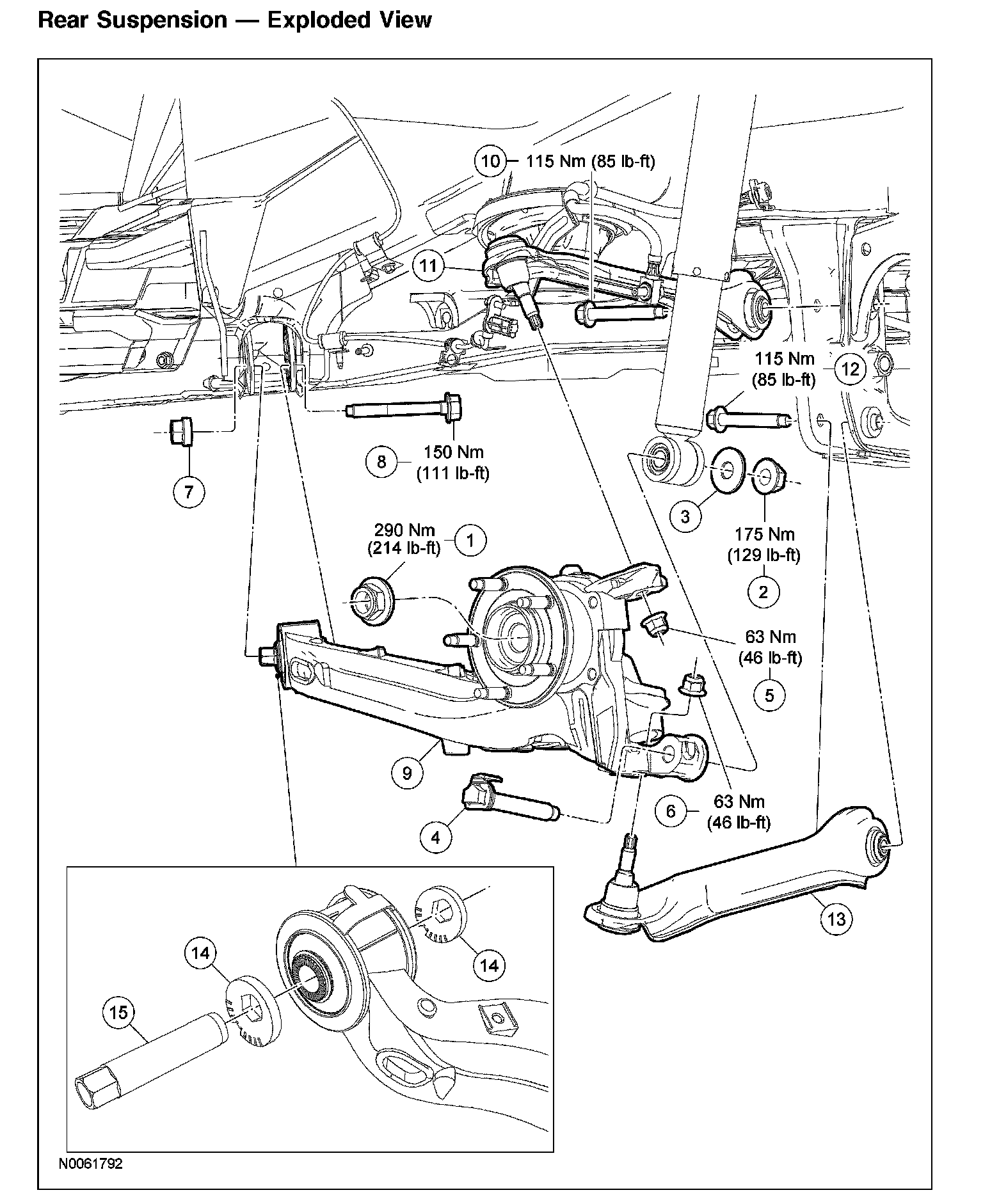

Rear Suspension - Exploded View

Rear Suspension - Exploded View

Rear Suspension - Exploded View (Part 1):

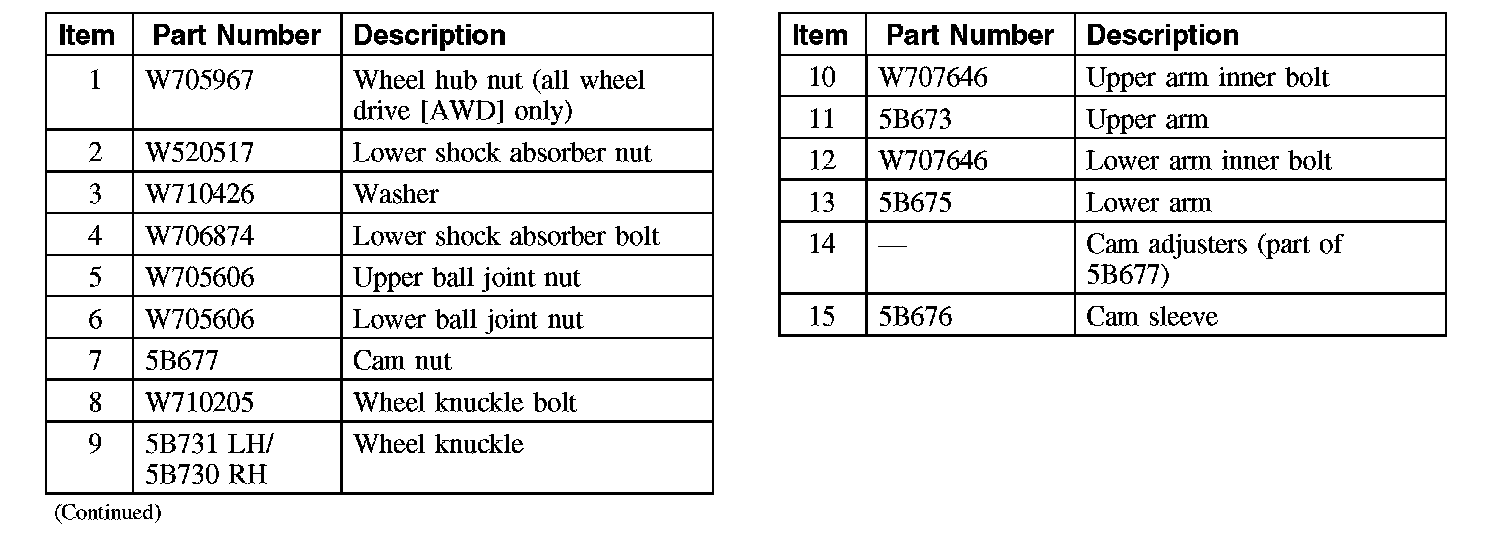

Rear Suspension - Exploded View (Part 2):





Note: Fastener replacement may be required. Refer to Component Service and Repair for further information.
