Control Module: Service and Repair

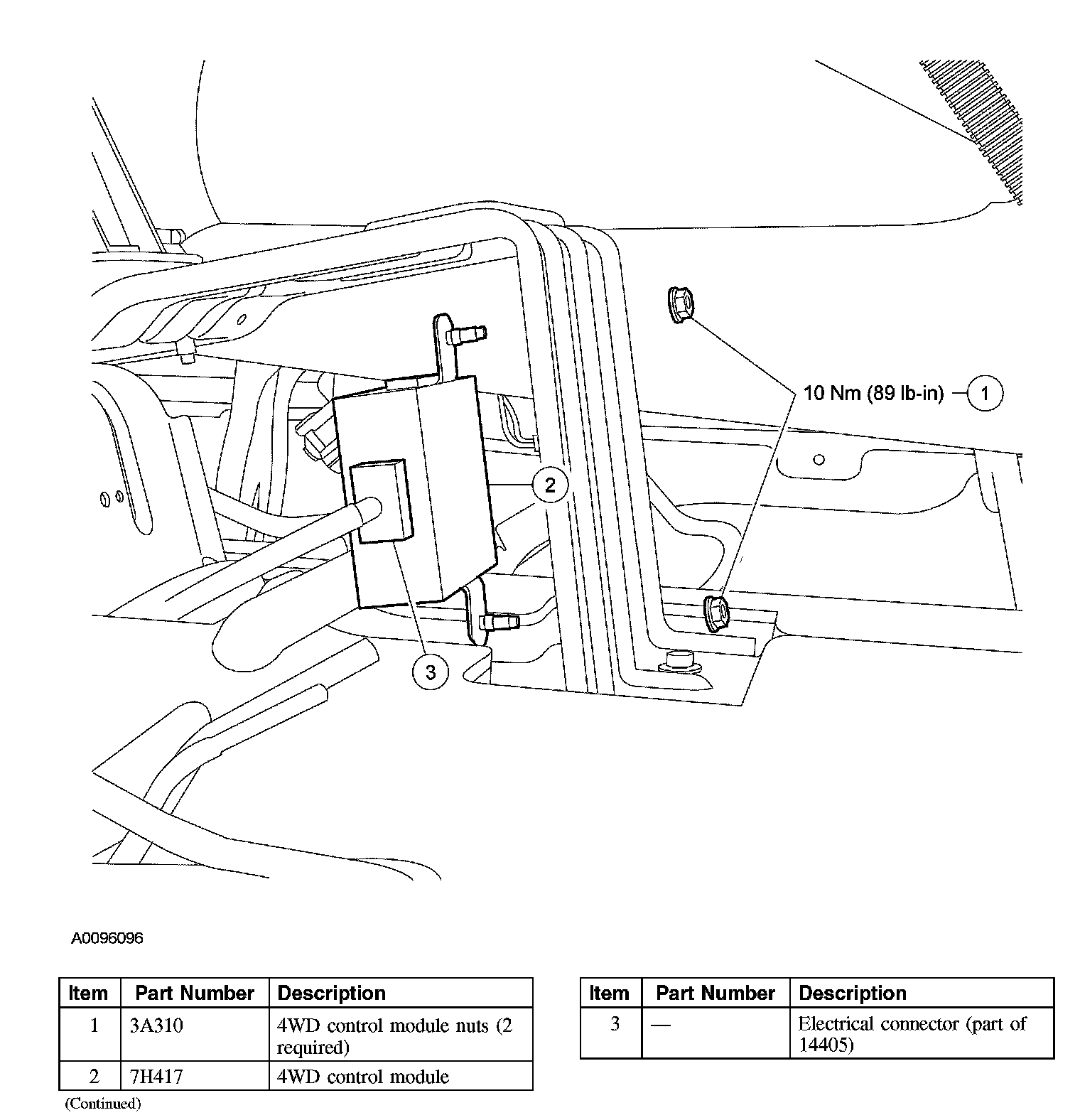

Four Wheel Drive (4WD) Control Module

Removal and Installation





1. Remove the floor console.
2. Remove the 4WD control module nuts.
^ To install, tighten to 10 Nm (89 inch lbs.).

3. Remove the 4WD control module.
^ Disconnect the electrical connector.

4. To install, reverse the removal procedure.
