Child Safety Seat Tether Anchor: Notes

NOTE: Rear of roof panel shown.

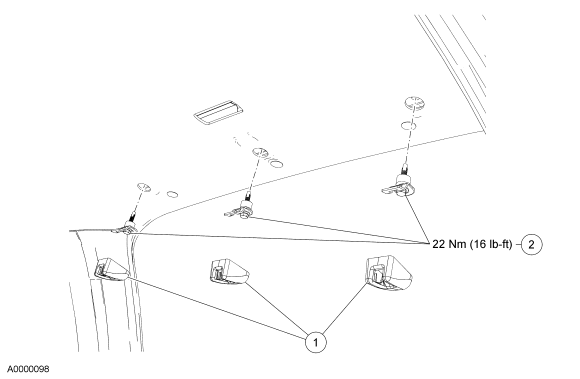

Fig 1: Exploded View Of Child Safety Seat Tether Anchor With Torque Specifications
GF0023910Courtesy of FORD MOTOR CO.
Item Part Number Description
1 616B00-A Child safety seat tether anchor covers
2 5201795B Child safety seat tether anchor assembly
