Safety Belt Retractor - Front: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Torx Bit, Safety Belt Bolt | 501-010 (T77L-2100-A) |

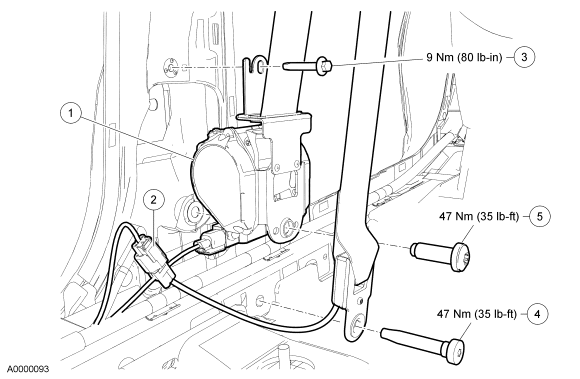

NOTE:
Passenger side safety belt retractor shown, driver side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6611B08A | Front safety belt retractor |
| 2 | - | Front safety belt retractor belt tension sensor connector (passenger side only) (part of 6611B08A) |
| 3 | - | Front safety belt retractor upper bolt |
| 4 | 603411700 | Front safety belt retractor anchor bolt |
| 5 | N807750-S190 | Front safety belt retractor bolt |
