Steering Column - Exploded View

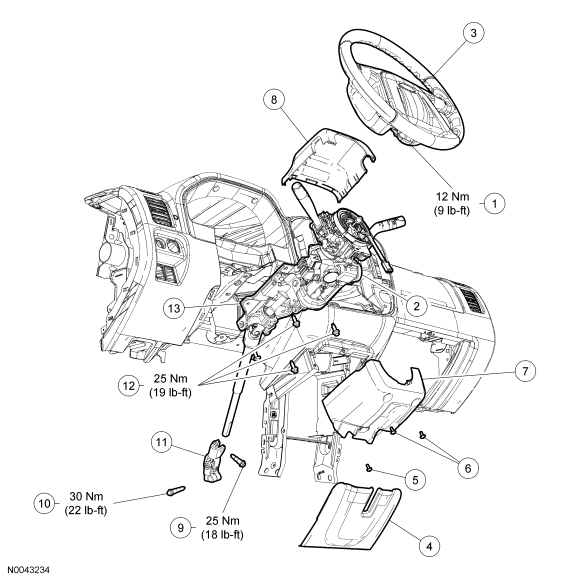

Fig 1: Exploded View Of Steering Column With Torque Specifications
GF0025608Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering wheel pinion bolt (part of 3600)
2 - Electrical connectors
3 3600 Steering wheel
4 - Instrument panel steering column cover
5 W705827-S Lower steering column cover mounting screw
6 W705828-S Lower steering column cover mounting screws (2 required)
7 3K512 Lower steering column cover
8 3C695 Upper steering column cover
9 3R827 Steering column coupling upper pinch bolt
10 W705857 Steering column coupling lower pinch bolt
11 3F800 Steering column coupling
12 W500223-S Steering column mounting bolts (4 required)
13 3C529 Steering column assembly
  1. For additional information, refer to the following procedures.
